amaran 100x S & 200x S

🚥Operation

[amaran 100x S-amaran 200x S] Getting Started

Setting up and powering amaran 100x S & amaran 200x S

Detaching /attaching the Protection Cover

Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover to pull it out. Reverse rotation will put the protective cover into.

amaran_100x_s_detachingattaching_the_protection_cover

WARNING

Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away.

Attaching/detaching the Reflector

Push the lever handle according to the arrow direction shown in the picture, and rotate the reflector into it. Rotating in the opposite direction pulls out the reflector.

amaran_100x_s_attachingdetaching_the_reflector

Setting up the light

Adjust the lamp body to the appropriate height, rotate tie-down to fix the lamp body on the tripod, then adjust the lamp body to the required angel, and tighten the lock handle.

Soft light umbrella installation

Insert the soft light handle into the hole, then lock the locking knob.

amaran_100x_s_soft_light_umbrella_installation

The soft light umbrella sold separately.

Adapter mounting

Run the wire rope through the adapter clasp and hang it on the bracket.

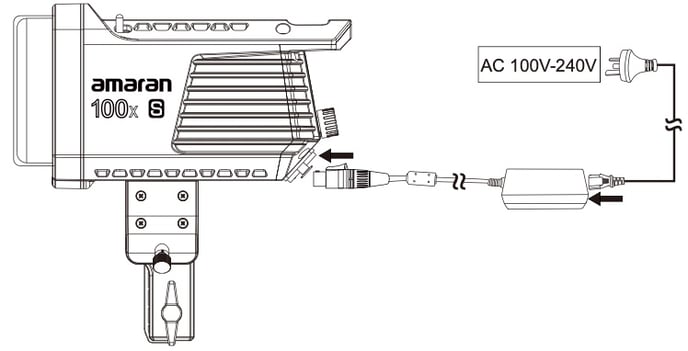

Power supply

amaran_100x_s_power_supply

Please press the button on the DC interface to remove the power cord from the lamp. Do not pull it out forcibly.

Please press the spring-loaded lock button on the power cord to remove the power cord. Do not pull it out forcibly.

Manual Control

INT/CCT

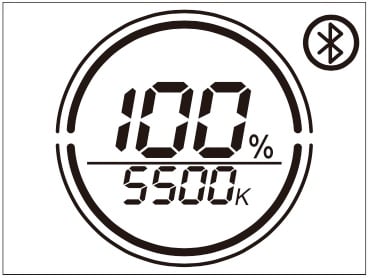

Rotate the INT adjusting knob to adjust the brightness with 1% variable, and the brightness change range is (0~100) %, and display the change of (0~100) % in real time on the LCD display. Click the INT adjustment knob to quickly switch the brightness level: 20%→40%→60%→80%→100%→20% →40%→60%→80%→100% cycle switch.

amaran_100x_s_intcct Rotate the CCT adjusting knob to increase or decrease with 100K as the change amount to change the current CCT value (2700K-6500K), and display (2700K-6500K) CCT value in real time on the light body display screen. Click the CCT adjustment knob to quickly switch the color temperature shift: 2700K→3200K→4300K→5600K→6500K→2700K→3200K→4300K→5600K→6500K cycle switch.

FX

Connect Sidus Link® APP, the user can find the Bluetooth serial number corresponding to the lamp in the APP and connect. When controlling the light effect through the APP, "FX" will be displayed on the upper left corner of the screen. In wireless mode, 9 lighting effects can be controlled through APP: Paparazzi / Fireworks / Faulty Bulb / Lightning / TV / Pulsing / Strobe / Explosion / Fire.

BT Settings

1. Long press the Bluetooth reset button to reset Bluetooth.

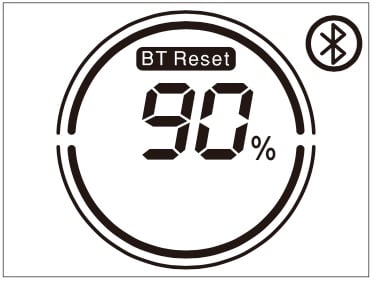

2. During the reset process, the LCD displays “BT Reset” and the Bluetooth icon is flashing, and the percentage shows the current reset progress.

amaran_100x_s_bt_reset 3. The LCD will display “Success” after the Bluetooth reset is successful.

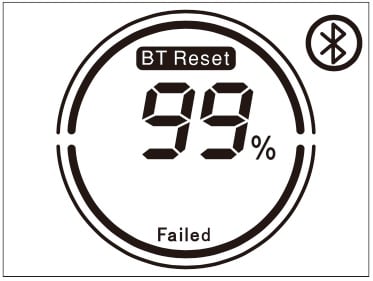

amaran_100x_s_bt_reset_success 4. The LCD will display “Failed” after the Bluetooth reset is unsuccessful.

amaran_100x_s_bt_reset_failed 5. After resetting the light's Bluetooth connection, your mobile phone or tablet will be able to connect to and control the light.

Update

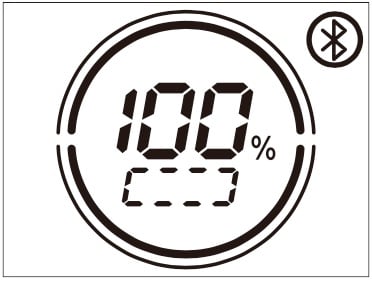

Firmware updates can be updated online via the Sidus Link® app for OTA updates.

Using the Sidus Link® APP

You can download the Sidus Link® app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit Sidus.link/app/help for more details regarding how to use the app to control your Aputure® lights.

amaran_100x_s_qr_code
