🚥Operation

[amaran 150c and 300c] Getting Started

Getting Started with amaran 150c and 300c

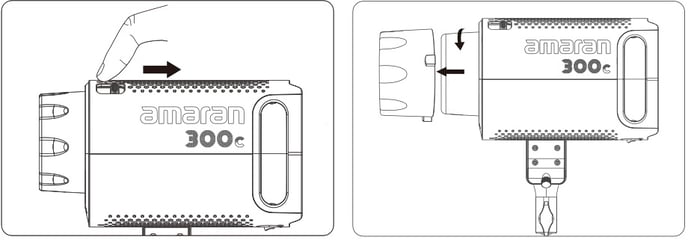

Detaching /attaching the Protection Cover

Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover to pull it out. Reverse rotation will put the protective cover into.

amaran_150c_300c_attachingdetaching_the_protection_cover

WARNING
Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away.

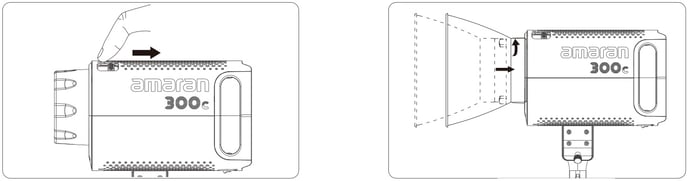

Attaching/detaching the Reflector

Push the lever handle according to the arrow direction shown in the picture, and rotate the reflector into it. Rotating in the opposite direction pulls out the reflector.

amaran_150c_300c_attachingdetaching_the_reflector

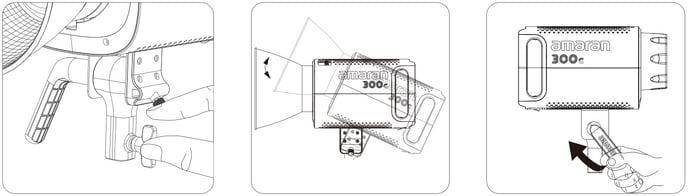

Setting up the light

Adjust the lamp body to the appropriate height, rotate tie-down to fix the lamp body on the tripod, then adjust the lamp body to the required angel, and tighten the lock handle.

amaran_150c_300c_setting_up_the_light

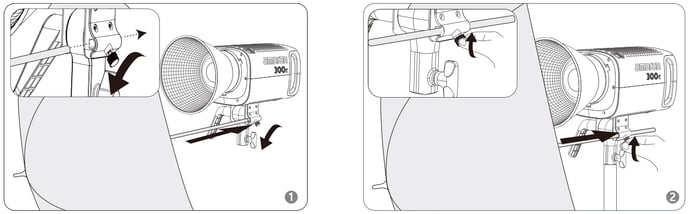

Soft light umbrella installation

Insert the soft light handle into the hole, then lock the locking knob.

amaran_150c_300c_soft_light_umbrella_installation

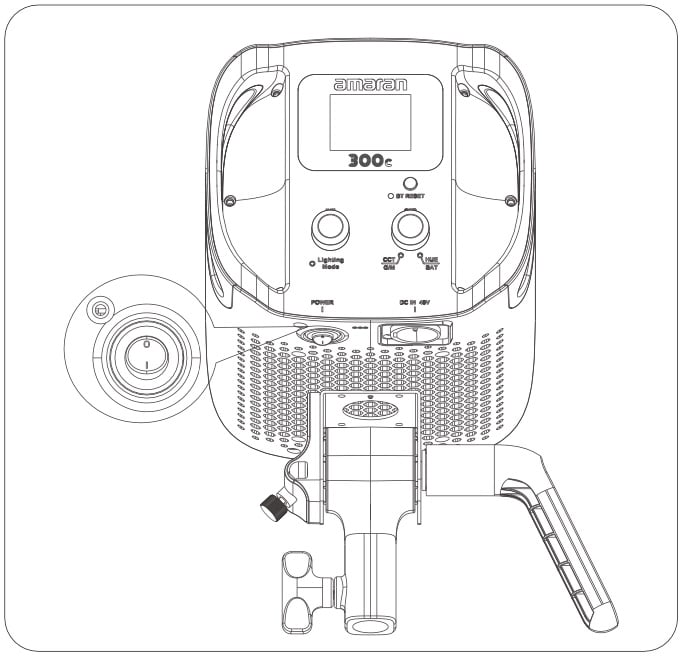

Power ON/OFF

Press the power button to turn the light on and off.

amaran_300c_power_on
