      [amaran 150c and 300c] Light Configuration & Settings

      Light Modes and Settings of amaran 150c and 300c

      Light Modes

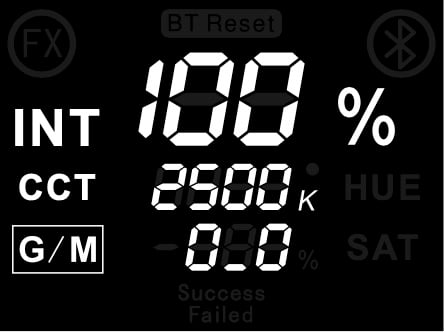

      CCT

      Rotate the INT knob to adjust intensity level. Press the CTR knob to select CCT or G/M and rotate the CTR knob to adjust the corresponding value.

      INT (Intensity): 0.0 - 100.0 %

      CCT (Correlated Color Temp.): 2500 K - 7500 K

      G/M (Green / Magenta adjustment): -1.0 ~ +1.0

      amaran_150c_300c_cct

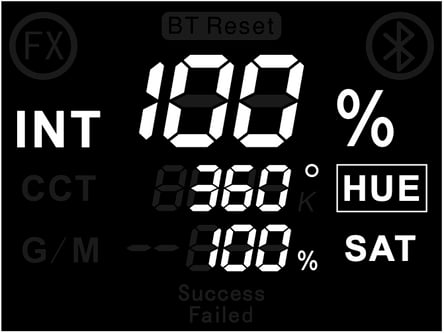

      HSI

      Press the INT knob to enter HSI mode. Then press the CTR knob to select HUE or SAT and rotate the CTR knob to adjust the corresponding value.

      INT (Intensity): 0.0 - 100.0 %

      HUE (Hue): 1 - 360.0°

      SAT (Saturation): 0.0 - 100.0 %

      amaran_150c_300c_hsi

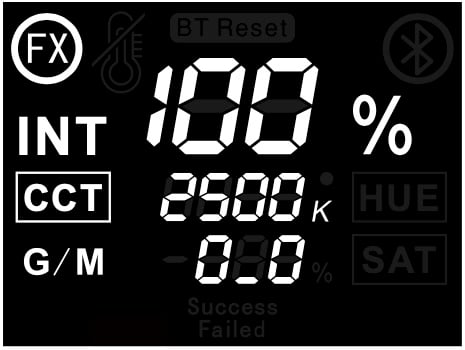

      Connect Sidus Link® APP, the user can find the Bluetooth serial number corresponding to the lamp in the APP and connect. When controlling the light effect through the APP, "FX" will be displayed on the upper left corner of the screen. In wireless mode, 9 lighting effects can be controlled through APP: Paparazzi / Lightning / TV / Fire / Faulty Bulb / Pulsing / Cop Car / Party Lights / Fireworks. Amaran 300c supports Sidus Pro® FX.

      amaran_150c_300c_fx_mode

      Settings

      Bluetooth Settings

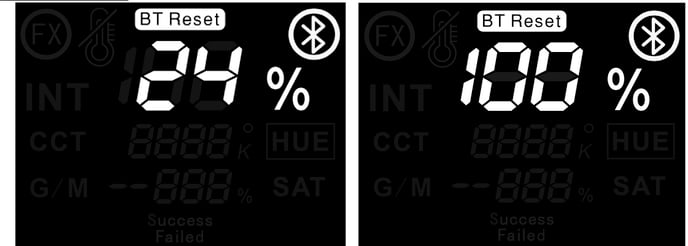

      1. Long press the Bluetooth reset button to reset Bluetooth.
      2. During the reset process, the LCD displays “BT Reset” and the Bluetooth icon is flashing, and the percentage shows the current reset progress.

      amaran_150c_300c_bt_settings

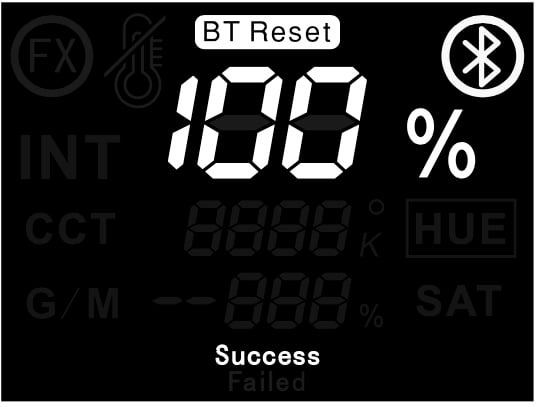

      3.   The LCD will display “Success” after the Bluetooth reset is successful.

      amaran_150c_300c_bt_success

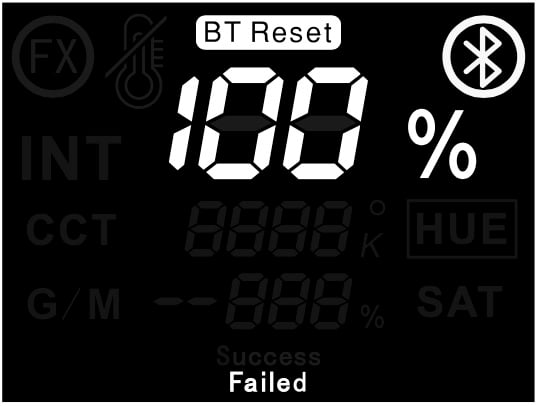

      4.   The LCD will display “Failed” after the Bluetooth reset is unsuccessful.

      amaran_150c_300c_bt_failed

      5.   After resetting the light's Bluetooth connection, your mobile phone or tablet will be able to connect to and control the light.

      Over temperature protection

      When the internal temperature of the lamp reaches the threshold value that needs to be cooled, the lamp control interface will display the over-temperature symbol, and the lamp will be turned off and the fan will be turned off after 5 seconds. The over-temperature protection interface is always displayed, and no operation can be performed at this time. Only when the power is turned on again can it return to normal.
