      [amaran 150c and 300c] User Interface Details

      Description of the Screen, Buttons, & Ports for 150c and 300c

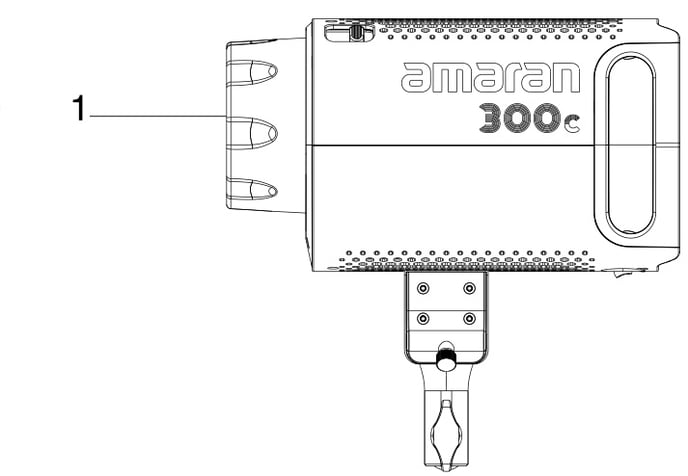

      amaran-150c-300c_product_details-1
      amaran 300c shown as an example above

      1. Protection Cover

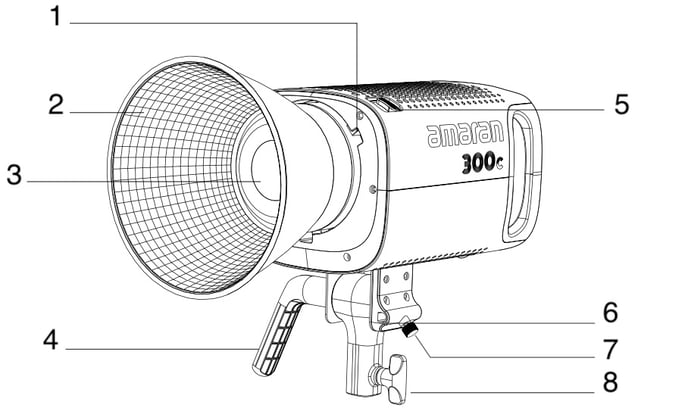

      amaran-150c-300c_product_details-2

      1. Bowens Mount
      2. Hyper Reflector
      3. COB Chipset
      4. Locking Handle
      5. Bowens Mount Release Button
      6. Soft lift umbrella hole
      7. Locking Knob
      8. Tie Down

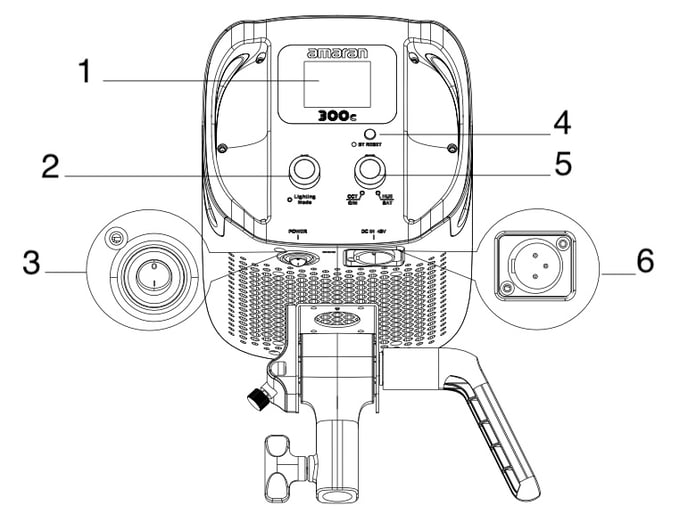

      amaran-150c-300c_product_details-3

      1. LCD Display
      2. INT Knob
      3. Power Button
      4. Bluetooth Reset Button
      5. CTR Knob
      6. DC-in Connector



      DOES THE AMARAN 150C/300C NEED A CONTROL BOX?
      The amaran 150c and amaran 300c features streamlined simple controls located at the rear of the lamp head, which offsets the necessity for having a heavy control box to control the fixture. All core functions of the fixture can be controlled by the twin dials on the minimalist control panel including CCT, HSI, and G/M Correction. Other advanced functions can be accessed by connecting the 150c to Sidus Link such as Music FX, Picker FX, and Custom FX.
