      [amaran 60d S] Getting Started

      Setting up and powering the amaran 60d S

      Detaching /attaching the Protection Cover

      Press the lever handle in the direction indicated by the arrow in the image. Then, turn the cover to remove it. Rotating it in the opposite direction will secure the protective cover in place.

      amaran_60x_s_detachingattaching_the_protection_cover

      WARNING

      Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away.

      Attaching/detaching the Reflector

      Push the lever handle according to the arrow direction shown in the picture, and rotate the reflector into it. Rotating in the opposite direction pulls out the reflector.

      amaran_60x_s_attaching_detaching_the_reflectorSetting up the light

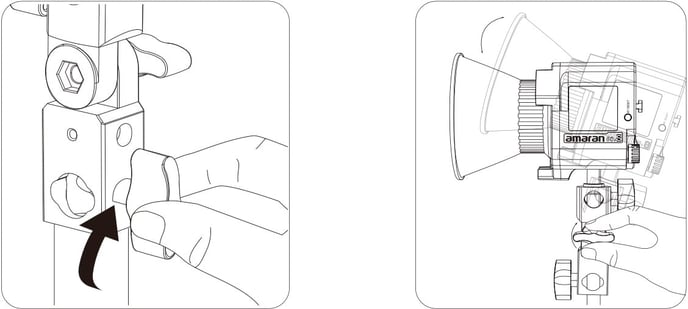

      Adjust the lamp body to the appropriate height, rotate tie-down to fix the lamp body on the tripod, then adjust the lamp body to the required angel, and tighten the lock handle.

      amaran_60d_s_setting_up_the_lightSoft light umbrella installation

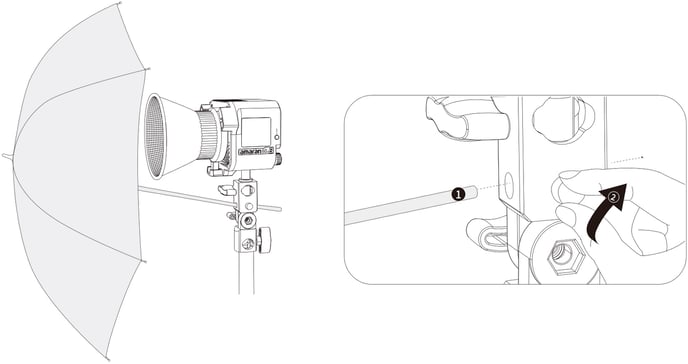

      Insert the soft light handle into the hole, then lock the locking knob.

      amaran_60d_s_umbrella

      The soft light umbrella sold separately.

      Battery handle installation

      Tighten the lamp body and the battery handle via 1/4 screw, then attach the battery plate or V-mount battery to the handle with the V-mount lock.

      amaran_60x_s_battery_handle_installation

      The battery sold separately.

      Operations

      Power ON/OFF

      Press the power button to turn the light on and off.

      amaran_60x_s_power_on_off
