[amaran 60x S] Getting Started

Setting up and powering the amaran 60x S

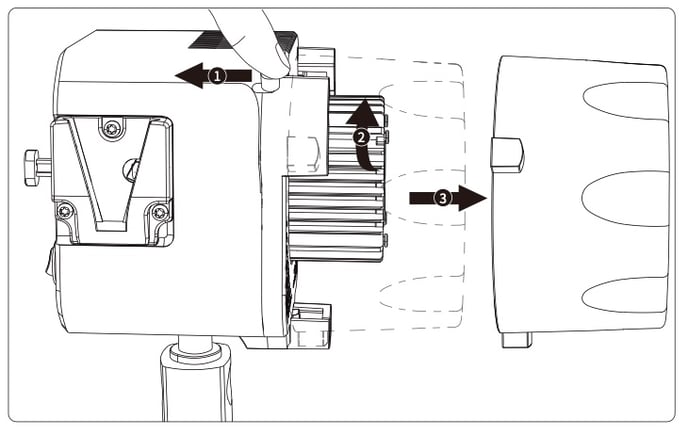

Detaching /attaching the Protection Cover

Press the lever handle in the direction indicated by the arrow in the image. Then, turn the cover to remove it. Rotating it in the opposite direction will secure the protective cover in place.

amaran_60x_s_detachingattaching_the_protection_cover

WARNING

Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away.

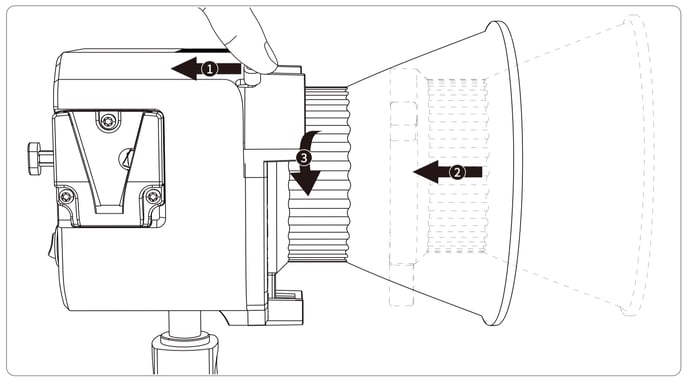

Attaching/detaching the Reflector

Push the lever handle according to the arrow direction shown in the picture, and rotate the reflector into it. Rotating in the opposite direction pulls out the reflector.

amaran_60x_s_attaching_detaching_the_reflectorSetting up the light

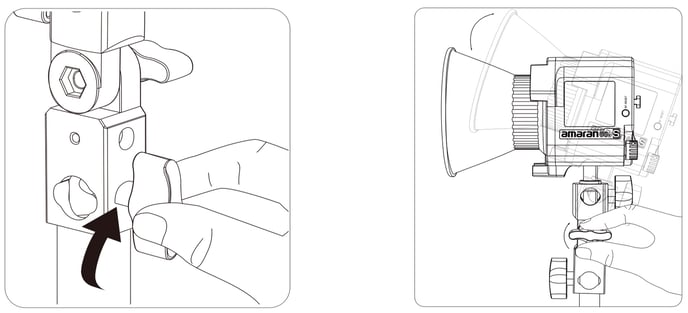

Adjust the lamp body to the appropriate height, rotate tie-down to fix the lamp body on the tripod, then adjust the lamp body to the required angel, and tighten the lock handle.

amaran_60x_s_setting_up_the_lightSoft light umbrella installation

Insert the soft light handle into the hole, then lock the locking knob.

amaran_60x_s_soft_light_umbrella_installation

The soft light umbrella sold separately.

Power ON/OFF

Press the power button to turn the light on and off.

amaran_60x_s_power_on_off
