      [Electro Storm CS15] Fixture Details & Buttons

      Fixture Details and Buttons of Electro Storm CS15

      Lamp

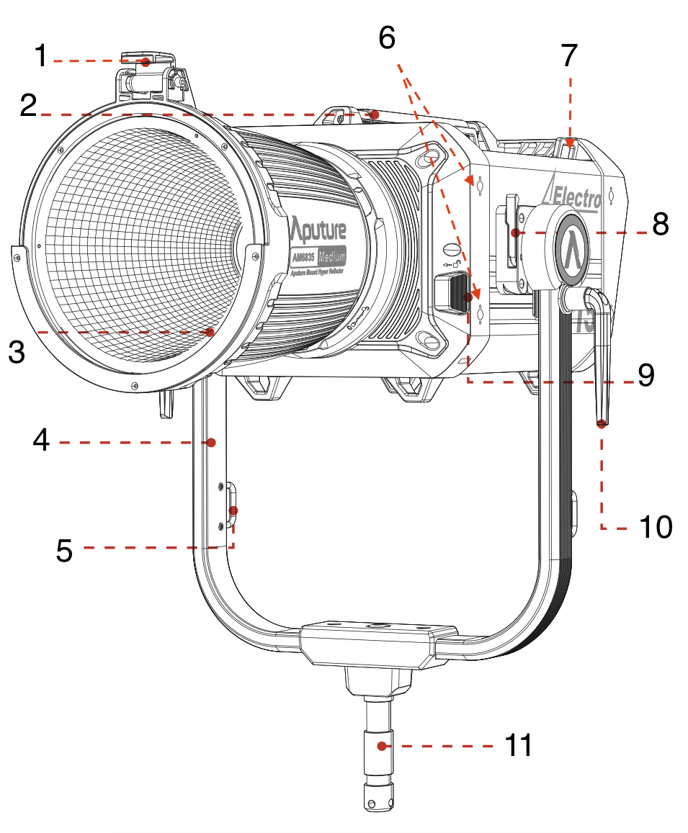

      electro-storm-cs15-lamp-front

      1. Barn Door Latch
      2. Carrying Handle
      3. Medium-Angle Standard Reflector
      4. Removable CS15 Yoke

      5. Safety Chain Bracket

      6. Anti-Rotate 3/8"-16 Threaded Holes
      7. Safety Chain Brackets
      8. Yoke Release Lever
      9. Mount Release Button
      10. Tilt Lock Handle
      11. 28mm Junior Pin

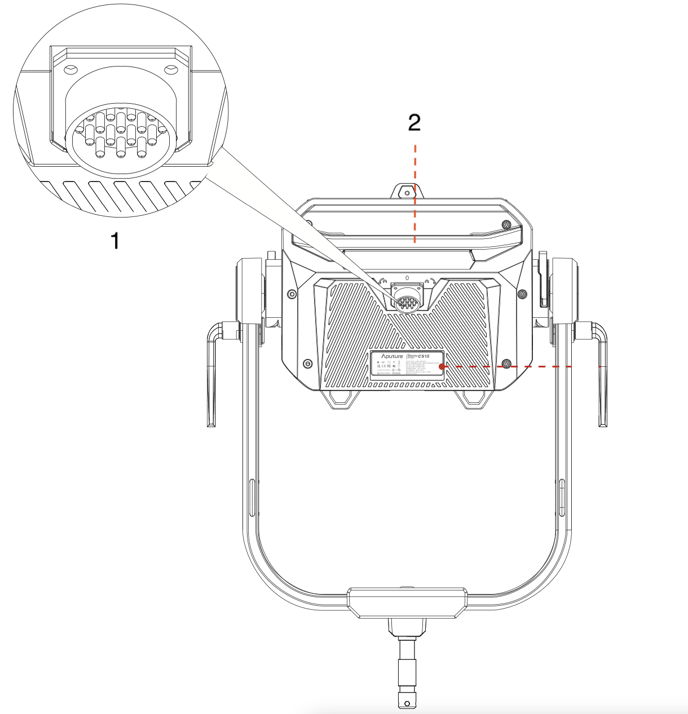

      electro-storm-cs15-lamp-2

      1. Header Cable Port

      2. Lamp Head Rear Handle

      Control Box

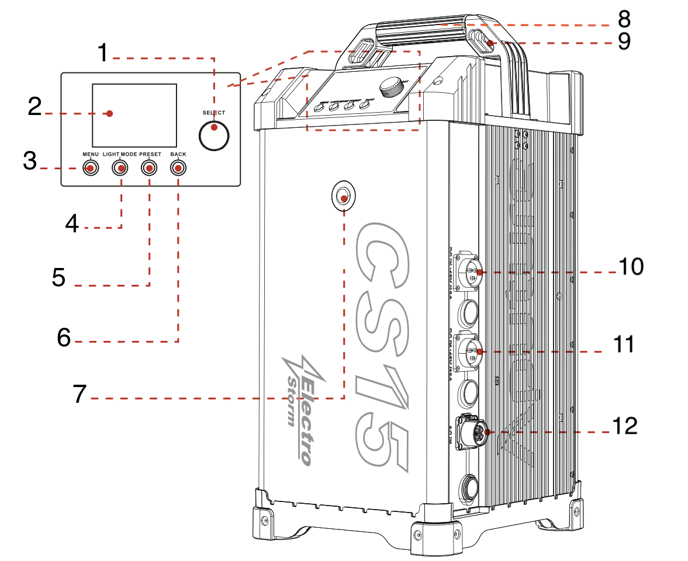

      electro-storm-cs15-control-box

      1. Select Knob
      2. Control Display
      3. Menu Button
      4. Light Mode Button
      5. Preset Button
      6. Back Button
      7. Power Button
      8. Carrying Handle
      9. Tie-Off Point
      10. DC 48V IN
      11. DC 48V IN
      12. AC IN

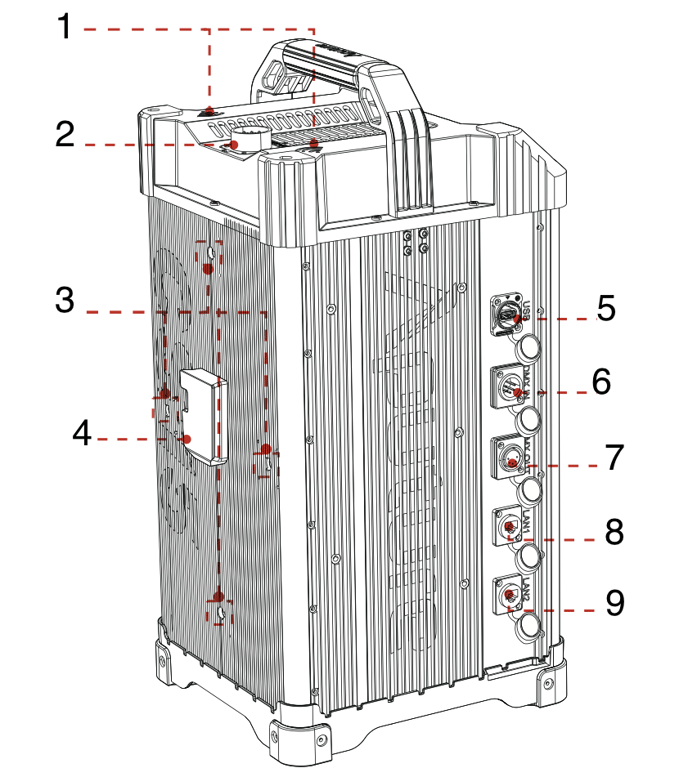

      electro-storm-cs15-control-box-2
      1. Antenna Positions

      2. Header Cable Port

      3. 3/8" Thread (x4)
      4. Quick Release Plate
      5. USB-A
      6. DMX IN
      7. DMX OUT
      8. LAN 1
      9. LAN 2
