      [LS 1200d Pro] Photometrics & Technical Specifications

      1200d Pro Photometrics & Technical Specifications

      Photometrics

      CCT Distance Bare Bulb LS 1200 Series Hyper Ref lector (Narrow) LS 1200 Series Hyper Ref lector (Medium ) LS 1200 Series Hyper Ref lector (Wide)
      5600 K 3m 6,380 lux / 598 f c 83,100 lux / 7,788 fc 22,400 lux / 2099 f c 13,010 lux / 1364 f c
      5m 2,802 lux / 263 f c 28,340 lux / 2,656 fc 8,200 lux / 769 f c 4,800 lux / 635 f c
      7m 1,538 lux / 144 f c 15,200 lux / 1,425 fc 4,660 lux / 437 f c 2,706 lux / 264 f c
      9m 964 lux / 90 f c 8,580 lux / 804 f c 2,880 lux / 270 f c 1,775 lux / 152 f c

      This is an averaged result. The luminance of your individual unit may vary slightly from this data.



      Specifications

      Output Power ≤ 1200 W
      Input Power ≤ 1440 W
      CCT 5600 K
      CRI ≥96
      TLCI ≥98
      CQS ≥95
      SSI (D56) ≥73
      TM-30 Rf (avg.) 93
      TM-30 Rg (avg.) 102
      Operating Voltage 100-240 V, 50-60 Hz
      Operating Current 15 A
      [DC IN 48V A] Requirement 48 V720 W
      [DC IN 48V B] Requirement 48 V720 W
      Operating Temperature -20°C~45°C
      Control Methods On-board, Sidus Link® App, 5-Pin DMX / RDM, Art-net & sACN v ia etherCON, LumenRadio CRMX
      Wireless Operating (Bluetooth) ≤ 80 m
      Wireless Operating (LumenRadio) ≤ 100 m
      Screen Type LCD (Adaptiv e Brightness)
      Firmware Upgrade USB, Sidus Link OTA
      Cooling Method Active Cooling
      Weatherproofing Dust & Light Rain
      Accessory Mount Universal Bowens Mount Standard
      Cable Type: Head Cable 7-Pin Weatherproof Head Cable (7.5 m)
      Cable Type: Power Cable Neutrik® powerCON AC Power Cable (6 m)
      Mounting 28mm | 1.125in (Junior Pin)
      Dimensions (L * W * H) Lamp Head w/o Yoke 33.23*23.16*21.63 cm/ 13.08*9.11*8.51 in
      Lamp Head w/ Yoke 33.23*33.12*54.35 cm/ 13.08*13.03*21.40 in
      Control Box 19.99*16.10*33.60 cm/ 7.87* 6.33*13.22 in
      Weight Lamp Head 8.95 kg /19.73 lbs
      Control Box 5.80 kg / 12.79 lbs



      The factory default settings are:

      Fan: smart mode

      Intensity: 50%

      Bluetooth (Sidus Mesh BT): ON

      Studio Mode: OFF

      Dimming Curve: Linear

      DMX channel number: 001

      Language: English

      FX:  Fireworks; Frequency: 5

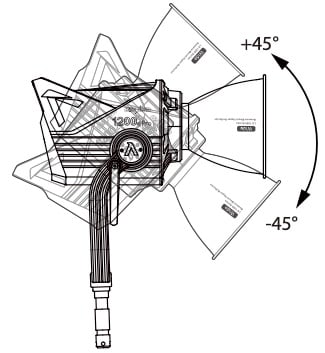

      *The malfunctions caused by water in the lamp body are not covered under the warranty. *If the LS 1200d Pro is used in a heavy rain, it is recommended to use the tilt angle range of the lamp head as shown below:

      ls_1200d_pro_tilted_angle
