      [LS 300d II] Getting Started

      Setting up the LS 300d II-300x

      1. Installing the cable relief hook

       ls300dII_installation_cable_relief_hook

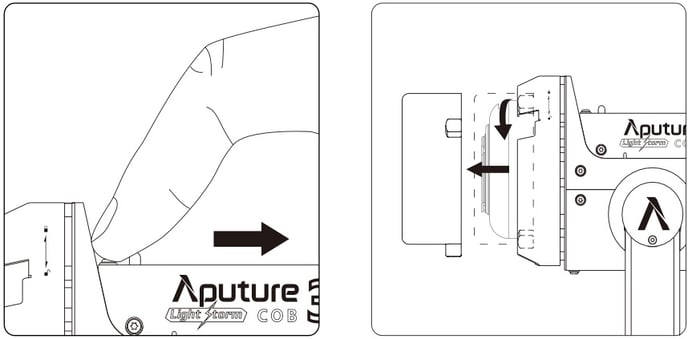

      2. Attaching/detaching the protection cover

      Pull back the retaining pin, rotate the cover clockwise, then detach the cover.

      To reattach the cover, insert it into the Bowens mount and rotate counterclockwise.

       ls300dII_attaching_detaching_the_protection_cover

      Notice: Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away.

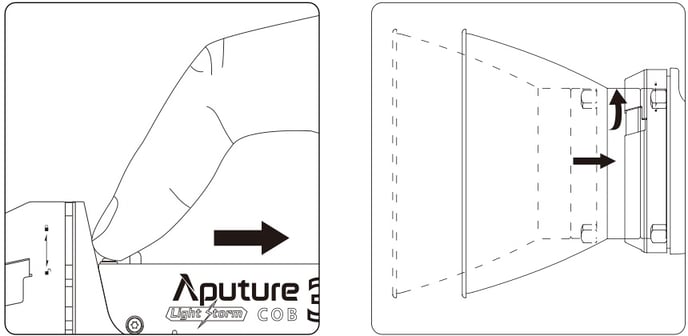

       3. Attaching/detaching the reflector/Hyper-Reflector

       To install the reflector, pull back the retaining pin, insert the reflector into the Bowens mount, and rotate it counterclockwise as shown in the following pictures.
      To remove the reflector, pull back the retaining pin and rotate the reflector clockwise.
      ls300dII_attaching_detaching_the_reflector

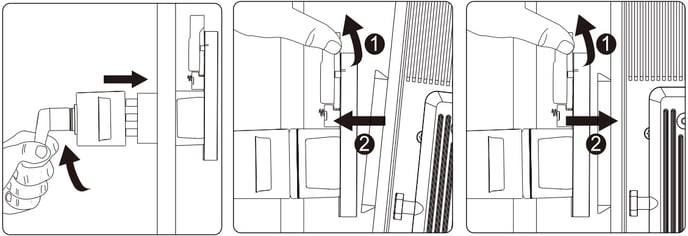

      4. Instructions for the Quick-Release Clamp/"Lightning Clamp"

      ls300dII_instructions_for_the_quick_release_clamp

      Specifications

      Weight 670g/1.48lbs Sizes (L*W*H) 10.35x8.74x12.5cm / 4.07x3.44x4.92in

      The Quick-Release Clamp / "Lightning Clamp" can clamp onto square or round pipe with a diameter between 2-5cm or 0.79-1.97in.

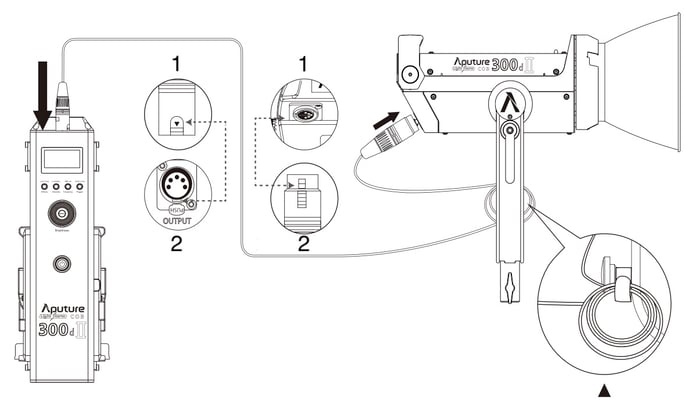

      5. Connect the light to the control box

      Connect the light to the control box using the 5-Pin Male-to-Female XLR Head Cable.

      ls300dII_connecting_the_light_to_the_control_boxHang the cable from the head cable relief hook
      to manage and reduce tension on the cable

      1. XLR Locking Slot
      2. XLR Locking Tab

      Disconnect the XLR head cable by pushing down on the locking tabs on the female XLR connectors, then remove the cable.
