      [LS 600c Pro] User Interface Details

      600c Screen Layout, Buttons and Ports

      Screen Layout

      Screen Shot 2023-07-07 at 12.19.46 PM

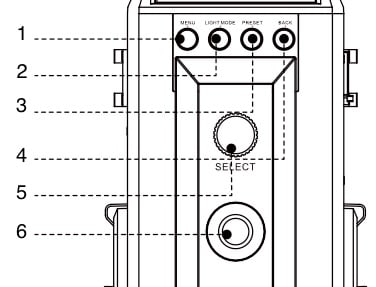

      Buttons

      ls_600c_pro_controls

      1. Menu Button
      2. Light Mode Button
      3. Preset Button
      4. Back Button
      5. Select Wheel
      6. Power Button

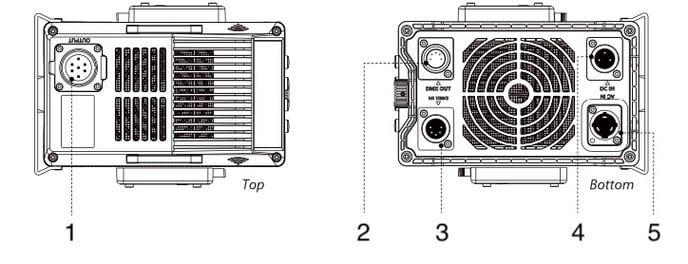

      Ports

      ls_600c_pro_ports-1

      1. 7-Pin Female Head Cable Connector
      2. DMX OUT Port
      3. DMX IN Port
      4. 48V DC Input (3-Pin XLR)
      5. Neutrik®️ powerCON AC Input
      6. ls_600c_pro_control_box
      1. Power Strap Plate 9. Antenna Box
      2. LCD Display 10. EtherCON RJ45
      3. Menu Button 11. USB Port
      4. Light Mode Button 12. Lightning Clamp Quick-Release Plate
      5. Preset Button 13. Battery Plate (*Anton Bauer or V-Mount)
      6. Back Button 14. Floor Stand
      7. Select Wheel
      8. Power Button
