      [LS 600d] Connecting to DMX

      Connecting LS 600d to DMX

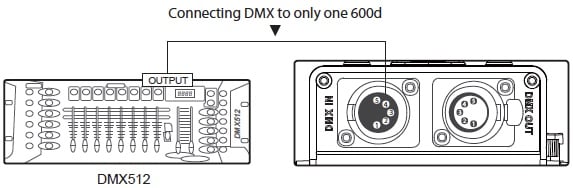

      ls_600d_ConnectDMX_1

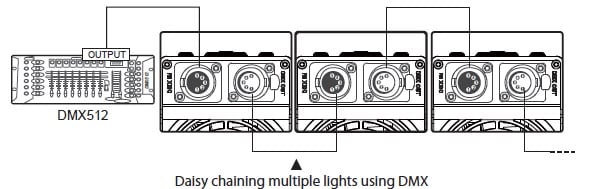

      ls_600d_ConnectDMX_2

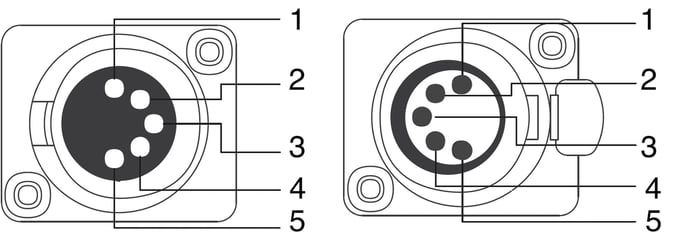

      The DMX interface schematic is shown in the pictures below:

      tc4-tc2_schematic_interface-1

      1. Data 2+ (Optional Secondary Data Link)
      2. Data 2- (Optional Secondary Data Link)
      3. Data 1+ (Primary Data Link)
      4. Data 1- (Primary Data Link)
      5. Signal Common
