      [LS 600d] Product Details

      Product Details of LS 600d

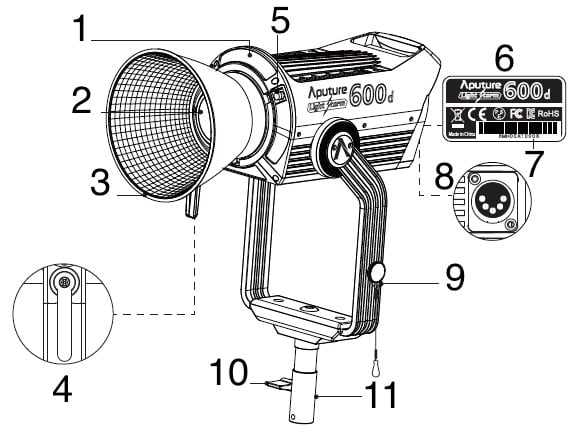

      ls_600d_Lamp_Head



      1. Bowens Mount
      2. LED Light Source
      3. 600 Series Hyper Reflector
      4. Ratcheting Disk Brake Handle
      5. Bowens Mount Release Latch
      6. Label
      7. UID
      8. 5-PIn Male Head Cable Connector
      9. Cable Relief Hook
      10. T-Handle / Baby Pin Mounting Screw
      11. Junior / Baby Pin Mount (1.125in. / 28mm | 5/8in. / 16mm)

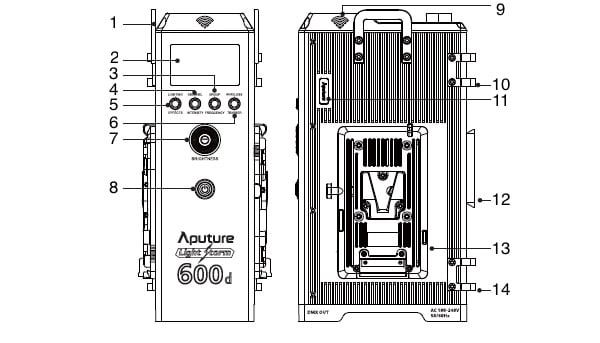

        ls_600d_control_box



      1. Paracord Strap Plate
      2. OLED Display
      3. Frequency Button
      4. Intensity Button
      5. Effects Button
      6. Trigger Button
      7. Brightness (Knob + MENU Button)
      8. Power Button
      9. Antenna Box
      10. Floor Stand
      11. USB Port
      12. Lightning Clamp (Quick-Release Plate)
      13. Battery Plate (*Anton Bauer or V-Mount)
      14. Floor Stand

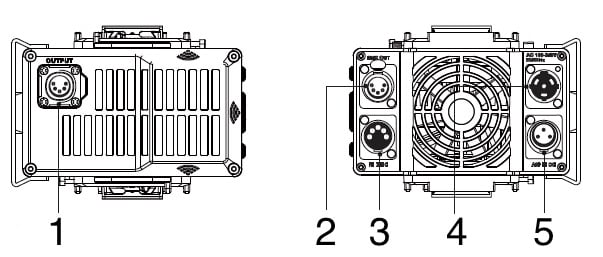

      ls_600d_control_box_2

      1. 5-Pin Female Head Cable Connector
      2. DMX OUT Port
      3. DMX IN Port
      4. Neutrik® powerCON Power Input
      5. 48V DC Input (3-Pin XLR)
