      [LS 600x Pro] DMX Profiles

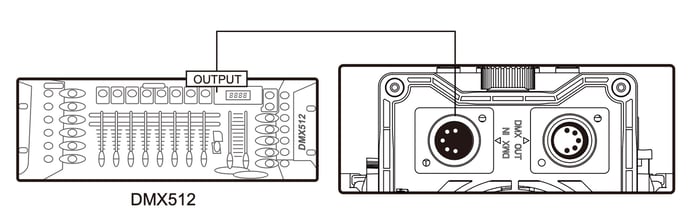

      LS 600x Pro Controlling Device Via DMX

      ls600x_pro_controlling_device_via_dmx

      DMX Chart

      Mode Channel Function
      DMX Profile 1: Lighting 1 INT: 0-100%
      2 CCT: 2700K-6500K
      DMX Profile 2: Effects 1 INT: 0-100%
      2 CCT: 2700K-6500K
      3 Paparazzi Fireworks Fault Bulb Lighting TV Pulsing Strobe Explosion Fire
      4 FRQ:1-10/R
      5 / / /

      Initial value/ Trigger/Loop

      		 / / /

      Initial value/ Trigger/Loop

      		 /
      DMX Profile 3: Lighting & Effects 1 INT: 0-100%
      2 CCT:2700K-6500K
      3 Lighting<->EFFECTS: 0-100%
      4 Paparazzi Fireworks Fault Bulb Lighting TV Pulsing Strobe Explosion Fire
      FRQ:1-10/R
      5 / / / Initial value/ Trigger/Loop / / / Initial value/ Trigger/Loop /

      In DMX mode, intensity, FX frequency and lighting effects can only be controlled by a DMX controller.

      When controlling multiple LS 600x Pro lights independently (i.e., A and B), offset each light by 5 channels. If you set light A at DMX 001, set light B at DMX 006, to control A and B separately on the DMX controller.
