[LS 600x Pro] Handheld Remote Control

LS 600X Pro Remote Control

2. 2.4G Control

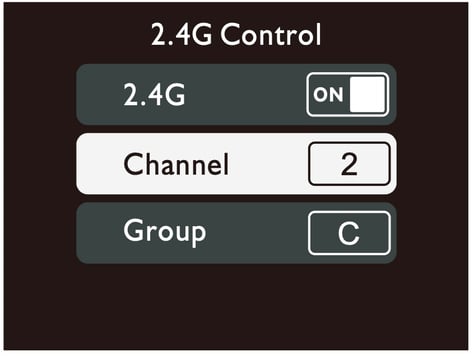

In the control interface, rotate and press the Select wheel to select 2.4G mode. Turn and press the Select button to switch 2.4G on or off, channel number and group.

ls600x_pro_2.4g_control

You can control the LS 600x Pro from any channel or group configuration.

Light Storm lights have three channels (1/2/3) and four groups (A/B/C/D).

Only groups "C" or "D" can be used to control brightness and lighting effects, while groups "A" and "B" can only be used to control brightness.

1. Configuring channel settings on the remote

ls600x_pro_CH_button Press the CH button to toggle between channels 1, 2, and 3)

ls600x_pro_ch2 “Ch2" indicator lights

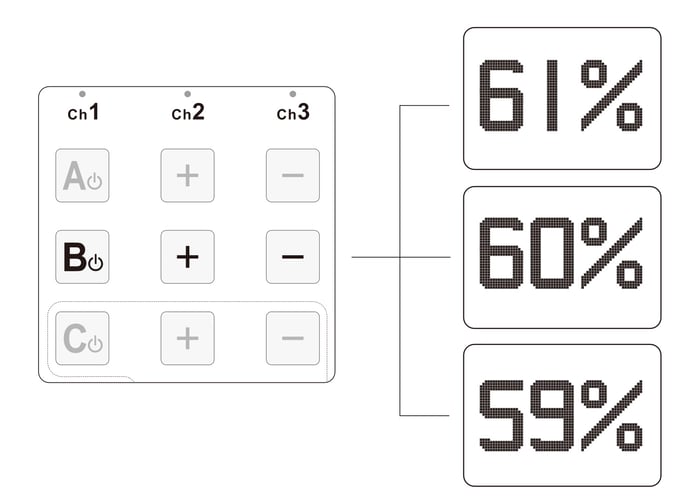

2. Adjusting brightness
Press A/B/C/D to turn the lights on or off, press (✚ / －) to adjust the brightness of the light from 0 to 100% accordingly.

ls600x_pro_adjusting_brightness

This remote will not work when the light is in DMX mode.

The remote control will only control the operation of the light when the fixture is in 2.4Ghz Wireless Control Mode.
