[LS 600x Pro] Lighting Configuration & Settings

LS 600X Pro - Menus

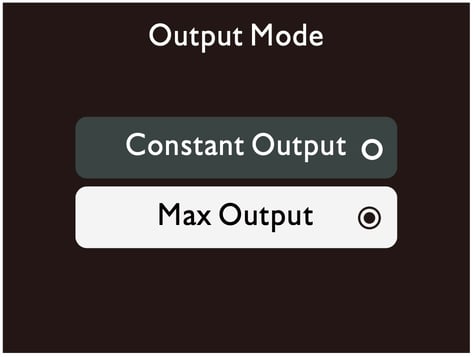

Output Mode

Press the MENU Button to enter the menu interface, rotate the Select wheel and short press to enter the Output Mode. In the output mode interface, you can choose Constant Output Mode and Max Output Mode. Constant output mode can maintain the brightness output during the process of changing the color temperature. Max Output Mode can make LS 600x Pro perform the current maximum power output.

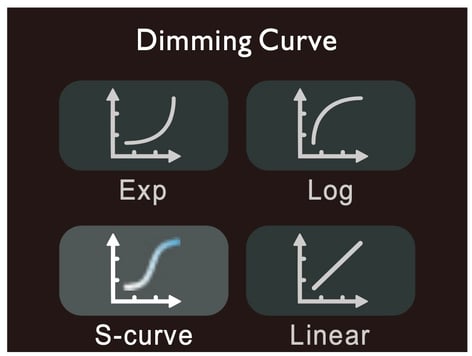

Dimming Curves

Press the MENU button to enter the menu interface, rotate the Select wheel to select Dimming Curve, and press the MENU button to enter the Dimming Curve selection menu. Using the wheel to choose from exponential (Exp), logarithmic (Log), S-Curve, or linear dimming curves, and press the MENU button to confirm the selection.

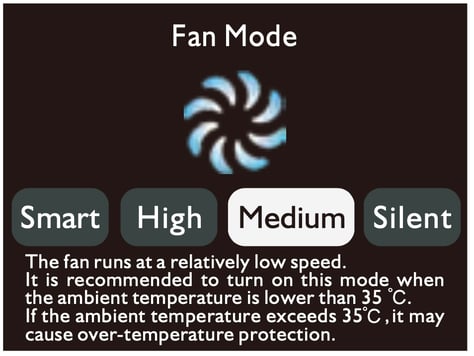

Fan Mode

Press the MENU button to enter the menu interface, rotate the Select wheel and press to enter the Fan Mode. Turn the Select wheel to choose from smart/ high/ medium/ silent mode, and then press the Select wheel to confirm the selection.

When overheat symbol appears on the light control interface, please follow the text underneath to adjust the Fan Mode to Smart or High. If the internal temperature of the lamp reaches the threshold that needs to be cooled, the lamp will automatically shut down due to overheat protection.

Studio Mode

Press the MENU button to enter the menu interface, rotate the Select wheel to select and press to enter Studio Mode interface. Then, press the Select wheel again to turn the Studio Mode on or off. When the studio mode is turned on (ON), the lamp can be turned on directly, when the studio mode is turned off (OFF), you need to press the power switch to turn on the lamp.

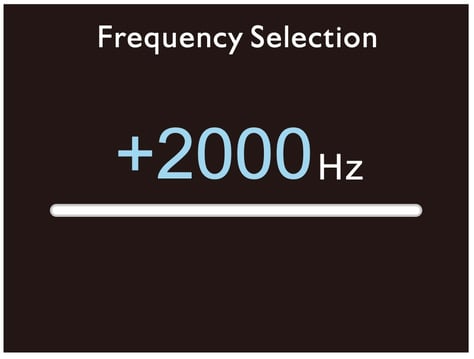

Frequency Selection

Press the MENU button to enter the menu interface, rotate the Select wheel to select to select and press to enter Frequency Selection interface. Rotate the Select wheel to adjust the light frequency by 100Hz every turn.

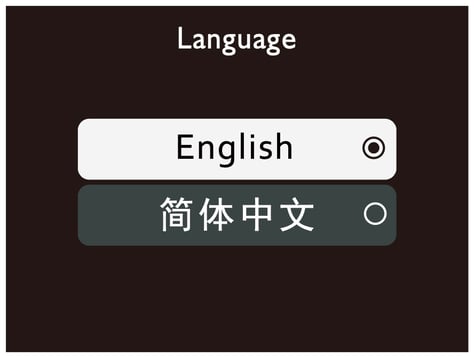

Language

Press the MENU button to enter the menu interface, rotate the Select wheel to select and press to enter the Language menu. You can rotate the Select wheel to select English or Chinese, and then press the Select wheel to confirm the selection.

Factory reset

Press the MENU button to enter the menu interface, rotate the Select wheel to select and press to enter the Factory Reset interface. The factory settings are: fan is in smart mode, channel is 1, group is A, light effect brightness value is 50%, light effect mode color temperature value is 5600K, normal mode brightness is 50%, normal light mode color temperature is 5600K, output mode-maximum output mode, Bluetooth mode is turned on, studio mode is turned off, dimming curve-linear, DMX channel number 001, English, fireworks light effect, frequency 5.

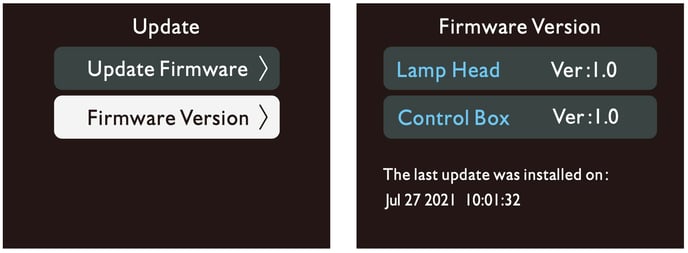

Update

Press the MENU button to enter the menu interface, rotate the Select wheel to select and press to enter the Update menu. You can update the firmware in the Update interface, and view the firmware version number. Firmware updating can also be done via Sidus Link app using OTA (Over the Air Technology).

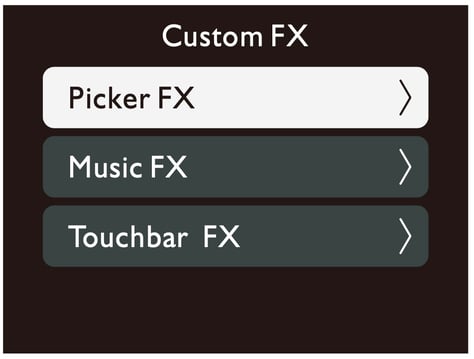

Custom FX

Press the MENU button to enter the menu interface, rotate the Select wheel to select and press to enter the Custom FX. You can choose to enter Picker FX, Music FX, or Touchbar FX interface. Each type can save 10 custom FXs. In the name of each FX, "NO FX" means unsaved FX, and "Untitled" means saved FX.
