      [LS 600x Pro] Photometrics & Technical Specifications

      LS 600X Pro Photometrics & Technical Specifications

      Operating Current 8A Power Supply 00V-240V 50Hz/60Hz
      Power Input ≤720W Power Output ≤600W
      CRI ≥96 TLCI ≥96
      CQS ≥95 CCT 2700K-6500K
      Radio Frequency 2.4GHz Channels 1/2/3
      Groups A/B/C/D Operating temperature -20°C~45°C
      Battery charging (voltage) 14.4V(12V-16.8V), 26/28.8V(25V-29.4V Battery charging (current) 3A
      Battery Requirement 14.4V-15A ≥180Wh 26V-8.5A ≥180Wh 28.8V-7.5A ≥180Wh Cooling Method Active Cooling
      Control Methods On-board,2.4GHz,DMX512, Sidus Link (Sidus Mesh TM), Art-net, Ethernet,LumenRadio Wireless Operating Range(2.4GHz) ≤100m
      Wireless Operating Range (Bluetooth)

      ≤80m

      		 Wireless Operating Range (LumenRadio) ≤100m
      Screen Type LCD (Adaptive Brightness) Waterproofing Dust&Light Rain
      Sizes (L*W*H) Lamp Head w/o Yoke 30.2X14.7X14.9cm/11.88*5.78*5.86in
      Lamp Head w Yoke 30.2X43.6X24.8cm/11.88*17.16*5.86in
      Controller box (V-Mount) 32.3*17.9*14.2cm/12.71*7.04*5.59in
      Controller box (Gold-Mount) 32.3*17.9*13.2cm/12.71*7.04*5.19in
      Lighting Clamp 10.35*8.74*12.5cm/4.07*3.44*4.92in
      Weight Lamp Head 5.16kg/11.37lbs
      Controller box (V-Mount) 4.89kg/10.78lbs
      Controller box (Gold-Mount) 4.89kg/10.78lbs
      Lighting Clamp 670g/1.48lbs
      Total weight 19.07 kg/42.04lbs

      Malfunctions caused by water in the lamp body are not covered under the warranty.

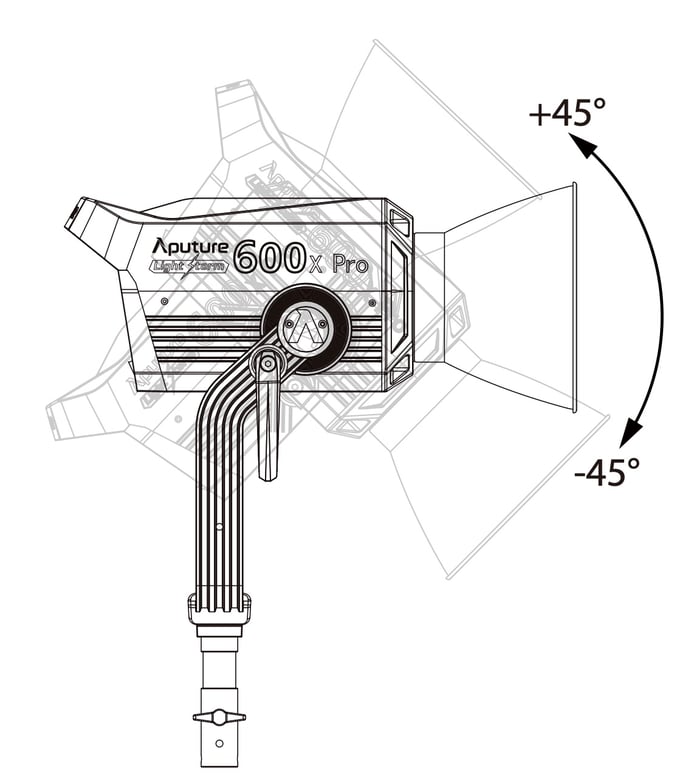

      If the LS 600x Pro is used in a heavy rain, it is recommended to use the tilt angle range of the lamp head as shown below:

      ls600x_pro_tilt_angle

      Photometrics

      Distance

      CCT

      		 1m 3m 5m
      Bare Bulb 3200K 11630 1364 524
      5600K 16060 1880 728
      600 Series Hyper Reflector 3200K 45300 4010 1426
      5600K 63900 5610 1996

      This is an averaged result. The luminance of your individual unit may vary slightly from this data.
