      [LS 600x Pro] User Interface Details

      Screen, Buttons, & Ports

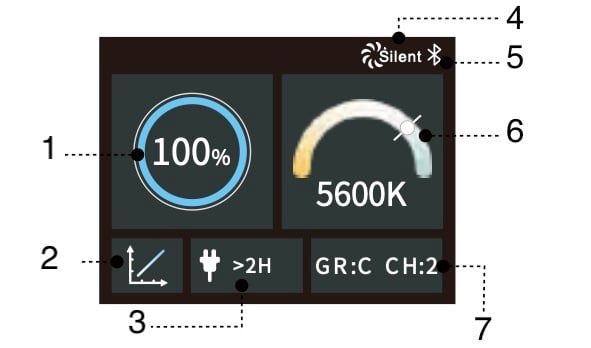

      Screen Layout

      ls_600x_pro_screen_layout

      1. Brightness

      2. Dimming Curve

      3. Battery Level (A Power Symbol)

      4. Fan Mode

      5. Bluetooth Mode

      6. CCT

      7. Group and channel

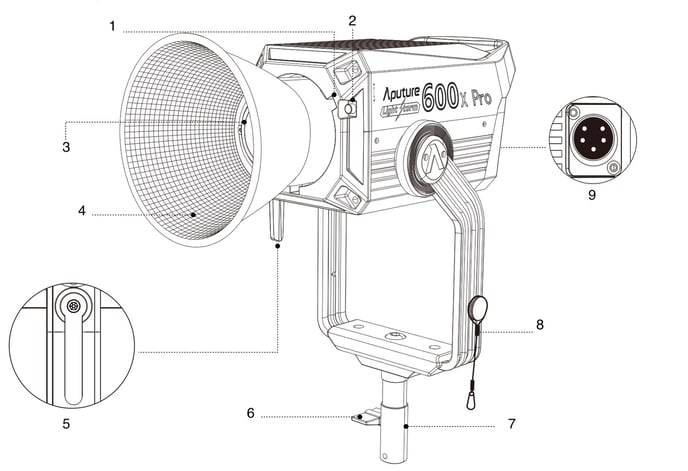

      Buttons and Layout

      ls600x_pro_lamp_head

      1. Bowens Mount
      2. Bowens Mount Release Latch
      3. LED Light Source
      4. 600 Series Hyper Reflector
      5. Tilt Lock Handle
      6. Stand Mounting Screw / Tie Down
      7. Junior / Baby Pin Mount (1.125in/28mm | 5/8in./16mm)
      8. Cable Relief Hook
      9. 5-Pin Male Weatherproof Head Cable Connector

      Control Box

      1. Paracord Strap Plate                                         10. Antenna Box
      2. LCD Display                                                       11. USB Port
      3. Lighting Button                                                   12. RJ45 Ethernet Port
      4. Menu Button                                                       13. Lightning Clamp Quick-Release Plate
      5. Effects/Trigger Button                                         14. Battery Plate (*Anton Bauer or V-mount)
      6. Back Button                                                        15. Floor Stand
      7. Brightness/Control Wheel
      8. CCT Wheel
      9. Power Button

      1. 5-Pin Female Head Cable Connector
      2. DMX OUT Port
      3. DMX IN Port
      4. 48V DC Input (3-Pin XLR)
      5. Neutrik® powerCON Power Input

      VA-Remote RC1+

      ls600x_pro_remote-1

      1. Channel Indicators
      2. Group A On/Off
      3. Group A Dimming Controls
      4. Group B On/Off
      5. Group B Dimming Controls
      6. Group C On/Off
      7. Group C Dimming Controls
      8. FX Button
      9. Group C Frequency Controls
      10. Group D On/Off
      11. Group D Dimming Controls
      12. Channel Selector
      13. Group D Frequency Controls
      14. CR2302 Battery Compartment
