      [Sidus Four] Application Scenarios

      Application Scenarios of Sidus Four

      1. Art-Net/sACN over Ethernet IN to (4) CRMX Transmitters OUT

      2. Art-Net/sACN over Ethernet IN to (4) DMX Ports OUT

      3. Art-Net/sACN over Ethernet IN to (4) CRMX Transmitters OUT and (4) DMX OUT

      4. Wi-Fi (Art-Net/sACN) IN to (4) CRMX Transmitters OUT

      5. Wi-Fi (Art-Net/sACN) IN to (4) DMX OUT

      6. Wi-Fi (Art-Net/sACN) IN to (4) CRMX Transmitters OUT and (4) DMX OUT

      7. (4) DMX IN to (4) CRMX Transmitters OUT

      8. 1 CRMX Bluetooth input. 1 CRMX output and 1 wired DMX output.

      9. Advanced Application Scenarios

      Art-Net/sACN over Ethernet IN to (4) CRMX Transmitters OUT

      sidus_four_application_scenario_1

      1. Controlling Device 5. Port A 9. Zone 1
      2. Art-Net or sACN 6. Port B 10. Zone 2
      3. Sidus Four 7. Port C

      11. Zone 3
      4. CRMX 8. Port D 12. Zone 4
          13. INFINIBAR

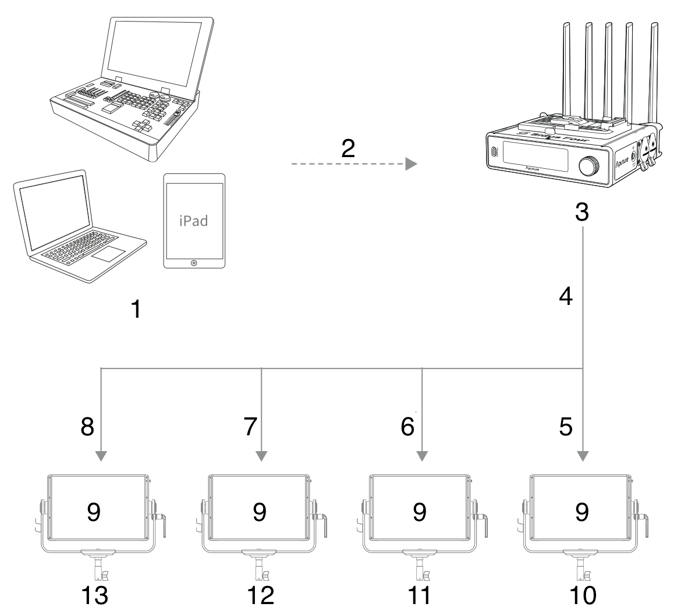

      Art-Net/sACN over Ethernet IN to (4) DMX Ports OUT

      sidus_four_application_scenario_2

      1. Controlling Device 5. Port E 9. Nova P300c
      2. Art-Net or sACN 6. Port F 10. Zone 1
      3. Sidus Four 7. Port G 11. Zone 2
      4. DMX 8. Port H 12. Zone 3
          13. Zone 4

      Art-Net/sACN over Ethernet IN to (4) CRMX Transmitters OUT and (4) DMX OUT

      sidus_four_application_scenarios_3

      1. Controlling Device 5. Port A 9. Zone 1 13. INFINIBAR 18. Zone 5
      2. Art-Net or sACN 6. Port B 10. Zone 2 14. Port E 19. Zone 6
      3. Sidus Four 7. Port C 11. Zone 3 15. Port F 20. Zone 7
      4. CRMX 8. Port D 12. Zone 4 16. Port G 21. Zone 8
            17. Port H

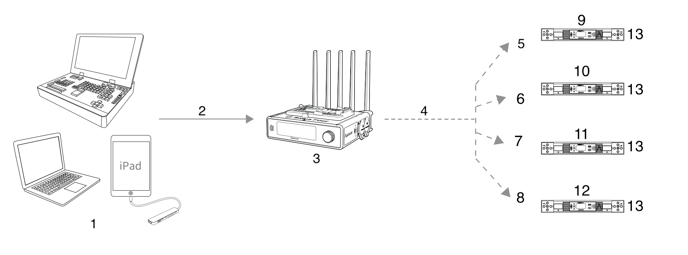

      Wi-Fi (Art-Net/sACN) IN to (4) CRMX Transmitters OUT

      sidus_four_application_scenario_4

      1. Controlling Device 5. Port A 9. Zone 1
      2. Art-Net or sACN 6. Port B 10. Zone 2
      3. Sidus Four 7. Port C

      11. Zone 3
      4. CRMX 8. Port D 12. Zone 4
          13. INFINIBAR

      Wi-Fi (Art-Net/sACN) IN to (4) DMX OUT

      sidus_four_application_scenario_5

      1. Controlling Device 5. Port E 9. NOVA P300c
      2. Art-Net or sACN over Wi-Fi 6. Port F 10. Zone 1
      3. Sidus Four 7. Port G 11. Zone 2
      4. DMX 8. Port H 12. Zone 3
          13. Zone 4

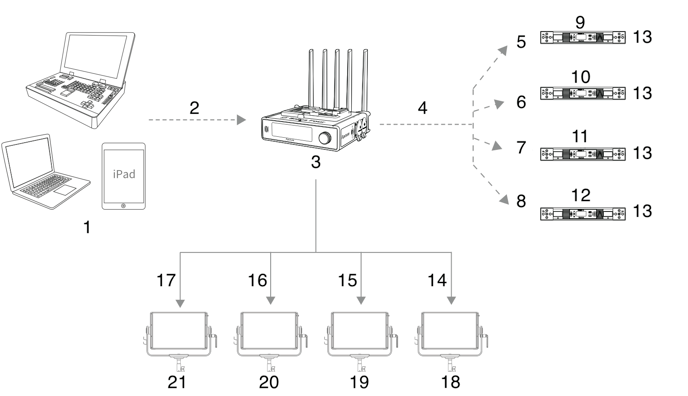

      Wi-Fi (Art-Net/sACN) IN to (4) CRMX Transmitters OUT and (4) DMX OUT

      sidus_four_application_scenarios_6

      1. Controlling Device 5. Port A 9. Zone 1 14. Port E 18. Zone 5
      2. Art-Net or sACN over Wi-Fi 6. Port B 10. Zone 2 15. Port F 19. Zone 6
      3. Sidus Four 7. Port C 11. Zone 3 16. Port G 20. Zone 7
      4. CRMX 8. Port D 12. Zone 4 17. Port H 21. Zone 8
          13. INFINIBAR

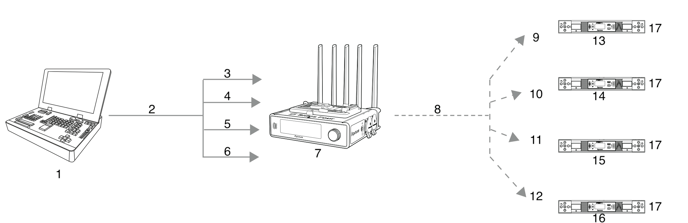

      (4) DMX IN to (4) CRMX Transmitters OUT

      sidus_four_application_scenarios_7

      1. Controlling Device 5. Port G 9. Port A 13. Zone 1
      2. DMX 6. Port H 10. Port B 14. Zone 2
      3. Port E 7. Sidus Four 11. Port C 15. Zone 3
      4. Port F 8. CRMX 12. Port D 16. Zone 4
            17. INFINIBAR

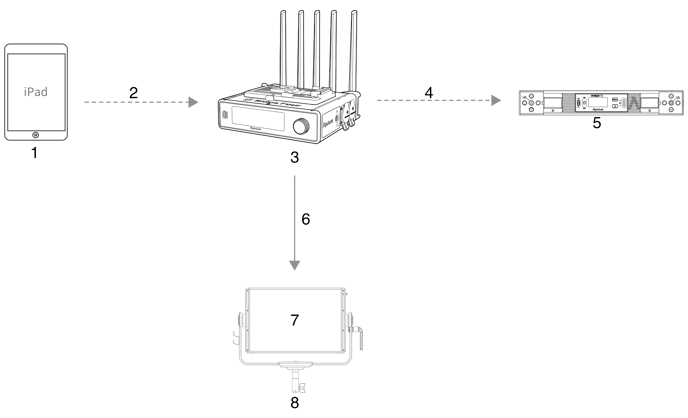

      1 CRMX Bluetooth input, 1 CRMX output and 1 wired DMX output

      sidus_four_application_scenarios_8

      1. iPad

      5. Zone 1 / INFINIBAR
      2. CRMX BT (A/B/C/D) 6. DMX (E/F/G/H)
      3. Sidus Four 7. Nova P300c
      4. CRMX (A/B/C/D) 8. Zone 1

      Advanced Application Scenarios

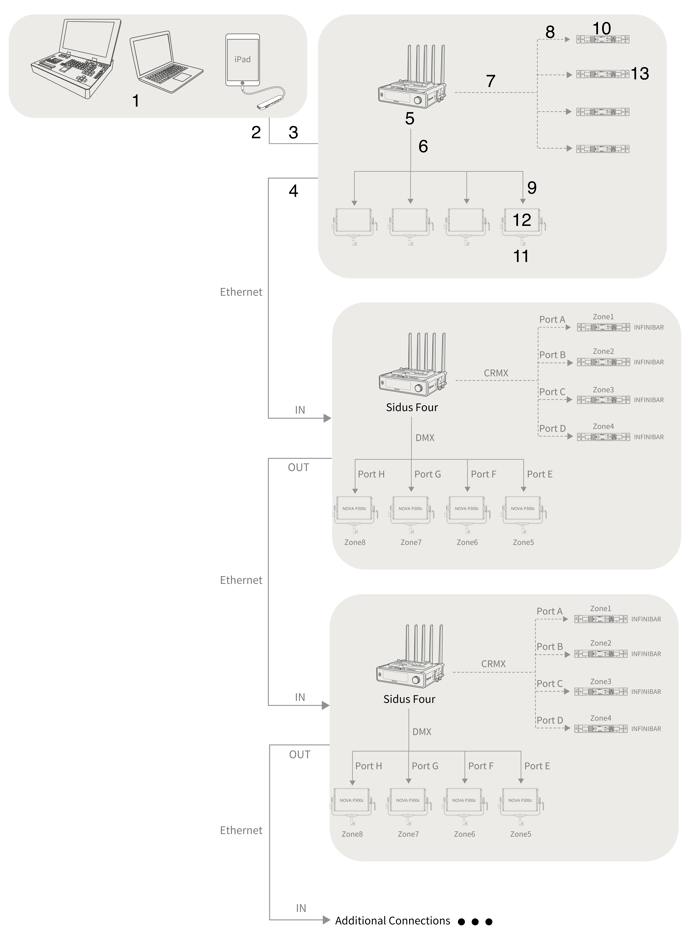

      Use Ethernet to connect multiple Sidus Fours

      sidus_four_use_ethernet_to_connect_multiple_sidus_four

      1. Controlling Devices 6. DMX 11. Zone 5-8
      2. Ethernet 7. CRMX 12. Nova P300c
      3. IN 8. Port A-D 13. INFINIBAR
      4. OUT 9. Port E-H
      5. Sidus Four 10. Zone 1-4

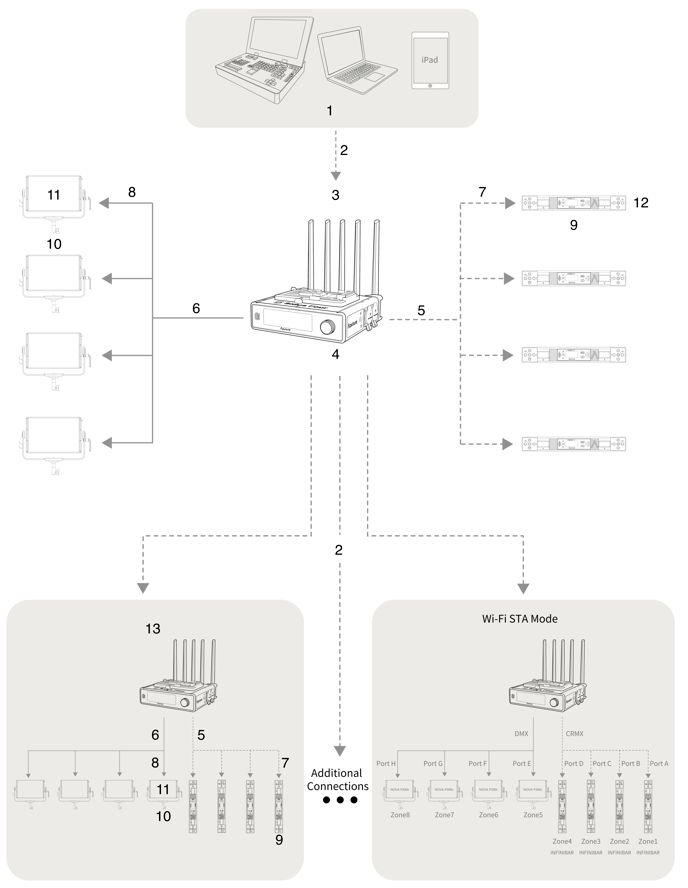

      Use Wi-Fi to connect multiple Sidus Fours

      sidus_four_use_wifi_to_connect_multiple_sidus_fours

      1. Controlling Device 6. DMX 11. Nova P300c
      2. Wi-Fi 7. Ports A-D 12. INFINIBAR
      3. Wi-Fi AP Mode 8. Ports E-H 13. Wi-Fi STA Mode
      4. Sidus Four 9. Zone 1-4
      5. CRMX 10. Zone 5-8

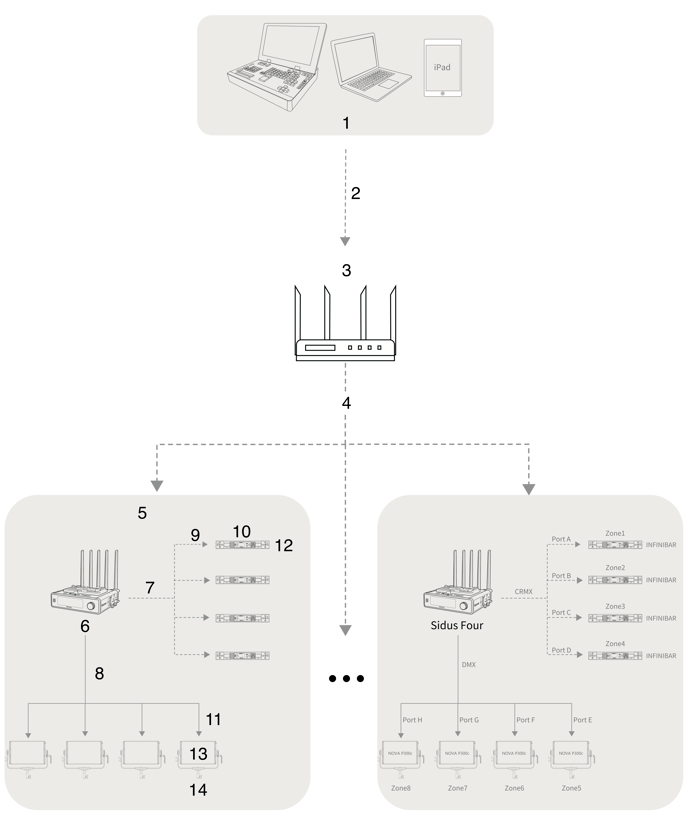

      Multiple Sidus Four units connected via a Wireless Router as Access Point

      sidus_four_multiple_sidus_four_units_connected_via_wireless_router_as_access_point

      1. Controlling Device 6. Sidus Four 11. Port E-H
      2. Wi-Fi 7. CRMX 12. INFINIBAR
      3. Wireless Router as AP 8. DMX 13. Nova P300c
      4. Wi-Fi 9. Port A-D 14. Zone 5-8
      5. Wi-Fi STA Mode 10. Zone 1-4
