1. Resource library
The resource library contains a wealth of lighting equipment information resources preset by Sidus Link Pro Beta for users, as well as lighting equipment information created by users themselves. When adding connected lighting equipment to the scene, users can select existing lighting equipment information in the resource library to quickly connect and control the lighting equipment; or manually create custom lighting equipment configurations and save this information in the resource library for later use. Quickly connect identical lighting equipment configurations.
1.1 Enter the resource library
- Click the side menu bar button to open the side menu bar;
- Select the resource library option to enter the resource library page.
1.2 Equipment Resource Library
The device resource library is divided into: custom Profile configuration library and system Profile configuration library
- The lighting device configuration information customized by the user when adding the device will be automatically stored in the user light library.
- Sidus Link Pro Beta has preset a wealth of brand lighting equipment information for users. Users can search for brands in the lighting brand list on the left in alphabetical order.

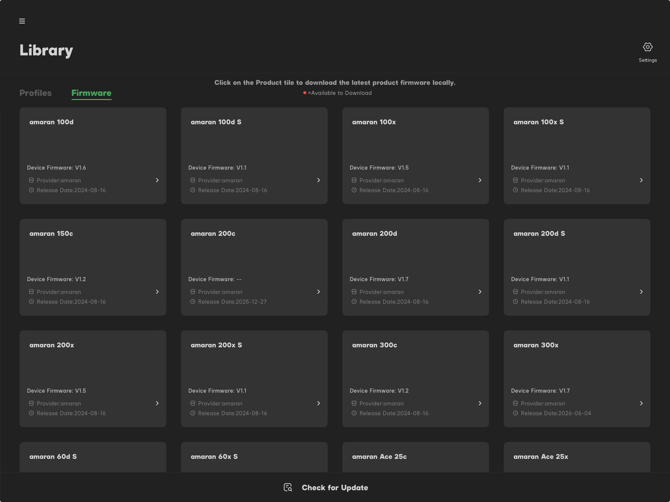

1.3 Firmware library
The firmware library contains all Aputure and amaran devices. If there is a red dot in the upper right corner of the device card, it means that the device has new firmware. There are two ways to download resources:
- Click on the card to download the latest firmware for an individual device
- Click the Download All button below to download firmware for all updateable devices

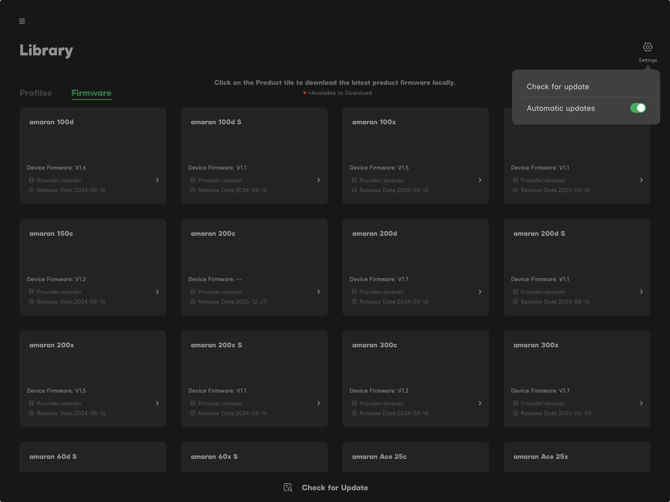

1.4 Resource library update
Sidus Link Pro Beta will continue to update the lighting equipment in the firmware resource library, so users can obtain the latest lighting equipment information resources.
- Click the Settings button to set the resource library update method;
- Click "Check for updates" to manually check for updates;
- After automatically checking for updates is turned on, Sidus Link Pro Beta will automatically check the resource library.
Notice:
- Please update the resource library in a stable network environment.
2. Cloud services
Sidus Link Pro Beta provides users with a cloud storage service to facilitate users to call lighting information across devices.
2.1 Cloud space capacity
- Open the side menu bar, click the cloud service option, and enter the cloud service page;
- Users can check the cloud space usage status through the cloud space capacity display bar. Different types of information will be displayed in different colors.
2.2 Automatic cloud synchronization
- The data types of automatic cloud synchronization are divided into three types: lighting presets, lighting effects, and user lighting libraries;
- Users can adjust the synchronization switches of different data to choose whether to automatically synchronize related types of data to the cloud;
- When the automatic cloud synchronization button is turned off, the relevant data types will not be automatically synchronized to the cloud.
2.3 Project management
Users can manage projects uploaded to cloud storage.
- Search projects: Click the search icon to search for projects in cloud storage by project name;
- Project download and deletion: Click the management menu button on the project folder to download or delete the project; click the batch selection icon to enter the project batch management state, click to check the project and click the delete button below. After confirming the deletion, the project can be Delete from cloud storage space.
2.4 Cloud synchronization settings
Click the settings icon in the upper right corner of the cloud service interface to turn off the automatic cloud storage service or select a different activation mode.
- Disabled: Lighting presets, lighting effects and user lighting library data will not be uploaded to the cloud space and will only be stored locally;
- Wi-Fi: Sidus Link Pro Beta will only automatically perform data cloud synchronization operations in a Wi-Fi network environment;
- Wi-Fi + mobile network: Sidus Link Pro Beta will automatically synchronize lighting presets, lighting effects and user lighting library data cloud in both Wi-Fi network environment and mobile network environment.
Notice:
- Performing data cloud synchronization operations on a mobile network will use mobile network data traffic, or may incur data traffic usage charges. Please contact each mobile network service provider for relevant charges.
