      [Sidus One] Application Scenarios

      Application Scenarios of Sidus One

      1. Art-Net/sACN over Wi-Fi IN to CRMX Transmitter/Wired DMX OUT

      CRMX Transmitter OUT:

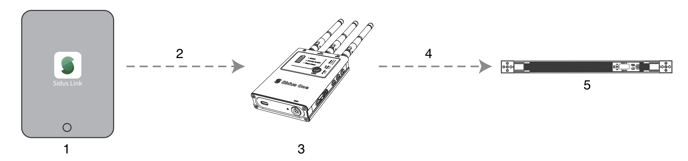

      crmx_transmitter_OUT

      1. Sidus Link Pro APP
      2. Connection through Wi-Fi (Art-Net / sACN)
      3. Sidus One serves as the CRMX Transmitter
      4. Connection through CRMX
      5. INFINIBAR

      Wired DMX OUT:

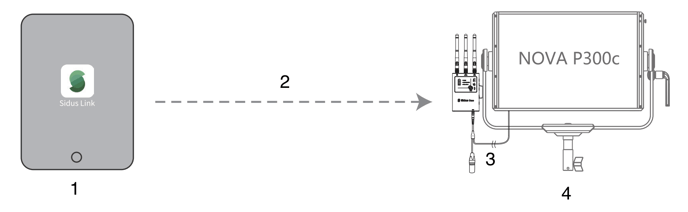

      sidus_one_wired_dmx_out-1

      1. Sidus Link Pro APP
      2. Connection through Wi-Fi (Art-Net / sACN)
      3. DMX
      4. Sidus One as CRMX Receiver

      2. CRMX Receiver IN to Wired DMX OUT

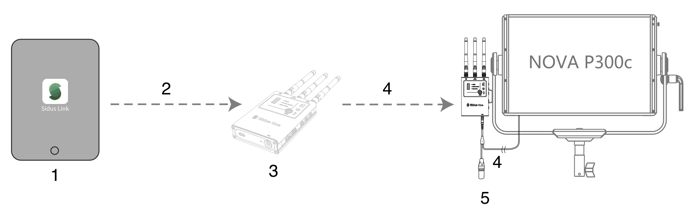

      CRMX_Receiver_IN_to_Wired_DMX_OUT

      1. Sidus Link Pro App
      2. Connection through CRMX BT
      3. Sidus One serves as the CRMX Transmitter
      4. Connection through CRMX
      5. DMX
      6. Sidus One as CRMX Transmitter

      3. CRMX Bluetooth IN to CRMX Transmitter/Wired DMX OUT

      CRMX Transmitter DMX OUT:

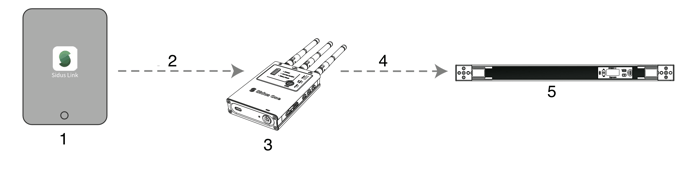

      crmx_transmitter_dmx_out

      1. Sidus Link Pro App
      2. Connection through CRMX BT
      3. Sidus One serves as the CRMX Transmitter
      4. Connection through CRMX
      5. INFINIBAR

      Wired DMX OUT:

      wired_dmx_out

      1. Sidus Link Pro APP
      2. Connection through CRMX BT
      3. DMX
      4. Sidus One as CRMX Receiver

      4. Wired DMX IN to CRMX Transmitter OUT

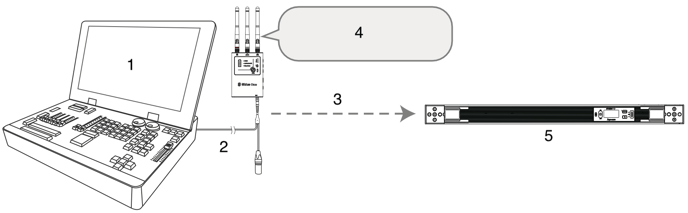

      sidus_one_Wired_DMX_IN_to_CRMX_Transmitter_OUT

      1. DMX Console
      2. DMX
      3. Connection through CRMX
      4. Sidus One serves as the CRMX Transmitter
      5. INFINIBAR

      5. Sidus BT Master Node to Sidus BT Compatible Fixtures

      sidus_one_sidus_bt_master_node_to_sidus_bt_compatible_fixtures

      1. Connection through Sidus BT
      2. Sidus One serves as Sidus BT Master Node
      3. Sidus Mesh
      4. Sidus Mesh
      5. INFINIBAR

      6. Art-Net/sACN over Wi-Fi to additional Wi-Fi Stations IN, CRMX Transmitter/Wired DMX Out

      Use Side Link Pro APP to connect 4 Sidus Ones to achieve wireless DMX Control of 4 Universes

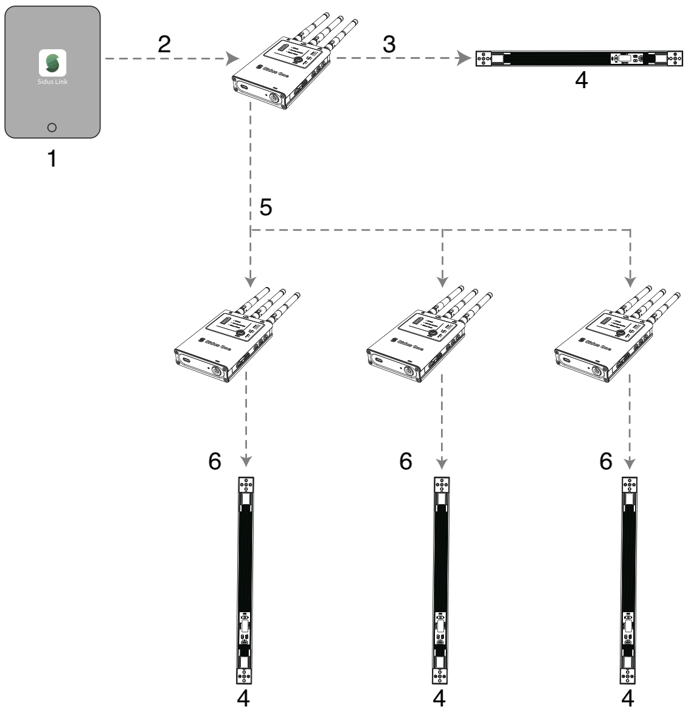

      wireless_dmx_control_of_4_universes
      1. Sidus Link Pro App
      2. Connection through Wi-Fi
      3. Connection through CRMX
      4. INFINIBAR
      5. Connection through CRMX

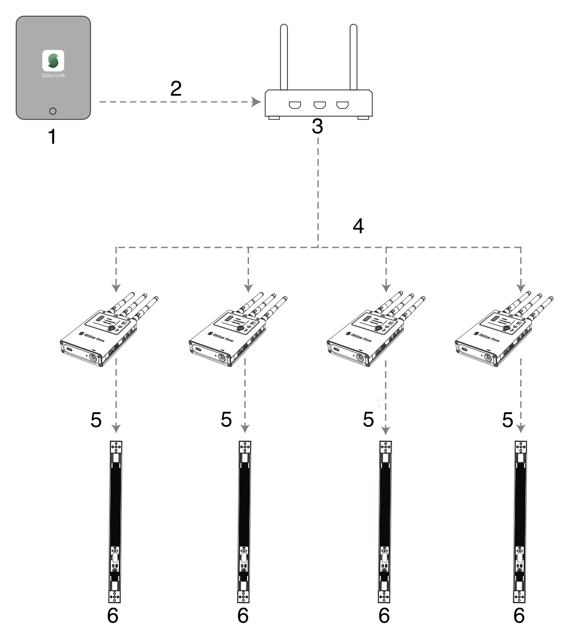

      wireless_dmx_control_of_4_universes_2

      1. Sidus Link Pro App
      2. Connection through Wi-Fi
      3. Wireless Router
      4. Connection through Wi-Fi
      5. Connection through CRMX
      6. INFINIBAR
