[Sidus One] CRMX Receiver IN to Wired DMX OUT

CRMX Receiver IN to Wired DMX OUT

CRMX Receiver IN to Wired DMX OUT

1. Press and Hold TX/RX button to set to RX mode

Press and Hold to switch between TX/RX mode

2. Connect Sidus One to the DMX IN/OUT Adapter. Connect the 5 Pin DMX OUT to the fixture's DMX IN port.

1. Insert DMX Adapter into the DMX Port on the bottom of the Sidus One	2. Plug the 5 Pin Female cable into a Light's DMX IN port.

3. If the CRMX Status light on the Sidus One is blinking rapidly, it is still linked to a previous transmitter. Press and hold the CRMX Link button for 3 seconds to Unlink from the previous transmitter.

4. On the CRMX Transmitter, tap the CRMX button to send the link signal to the Sidus One Receiver. The CRMX Status Light will flash rapidly on both devices. Once the Sidus One RX is linked, its CRMX Status Light will remain solid while in range of the TX and data is present.

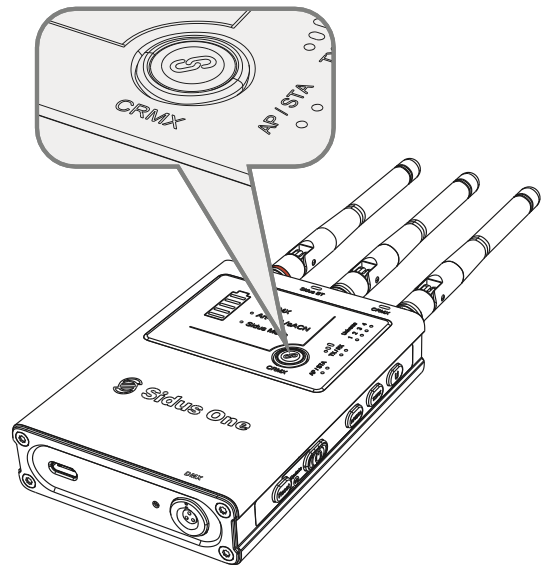

1. Tap CRMX Linking button	2. CRMX Status light will flash while connecting. It will remain solid once it is linked if DMX data is present.

1. Connection through CRMX

2. CRMX Link and Strength Indicator

3. DMX512
