[STORM 1000c] CRMX Settings

CRMX Settings of STORM 1000c

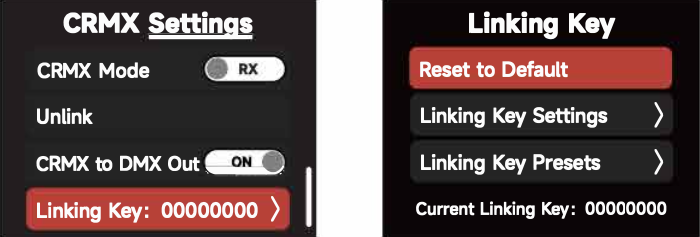

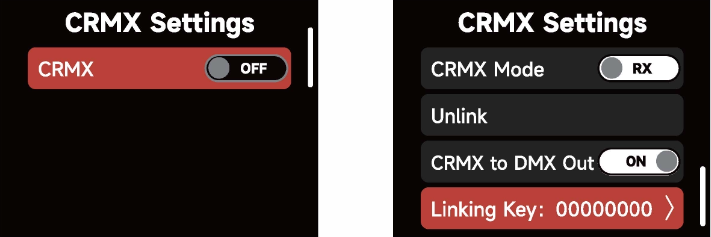

Turn CRMX ON or OFF.

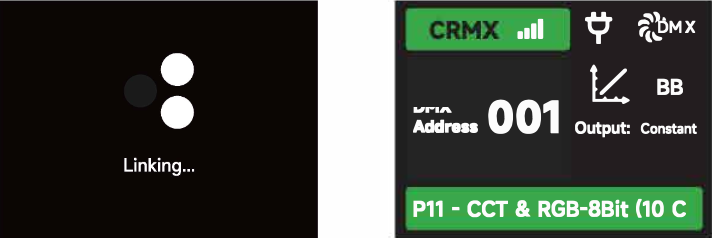

When CRMX is ON/Enabled, the fixture will listen for it's previously linked Transmitter. If
the fixture is currently unlinked, it will listen for a Transmitter link signal and link to any new
CRMX link signal. Users can Unlink from previously linked Transmitters by selecting
Unlink. Once a CRMX Link is established and DMX data is present, the display will change
to the DMX Status Screen.

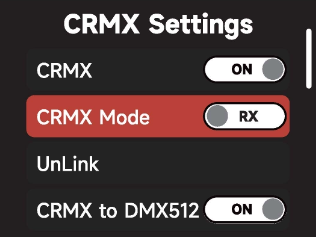

When in CRMX RX Mode, CRMX to DMX512 "ON" pushes the received DMX data out of
the DMX Out Port. If "OFP', then no data is pushed out of the DMX Out Port.

When utilizing CRMX TX Mode, the lamp can transmit DMX data to receivers using
CRMX. Linking Key can be used for RX's to link to.

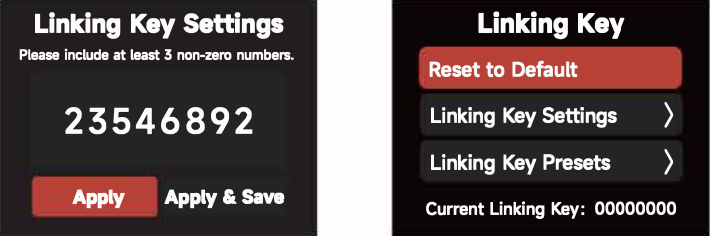

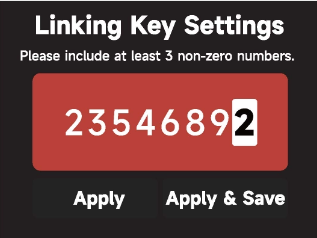

• In the Linking Key interface, choose an 8 digit number to be the Linking Key. Three digits

  cannot be the number "0".

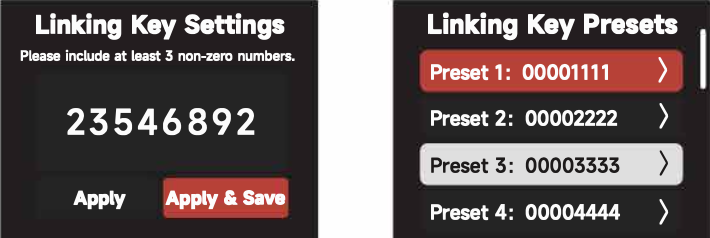

• Choosing "Apply" sets the Linking Key. Presets can be saved for future use by selecting
  "Apply & Save".
• Save 10 Presets in total.

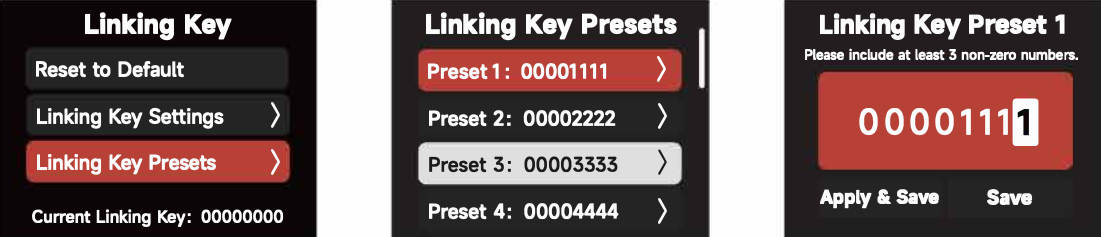

• In the Linking Key Preset interface, save up to 10 Presets by choosing "Save" or set the
  Control Box's Linking Key and save it as the selected Preset by choosing "Apply and Save".



CRMX RX (Receiving) Status

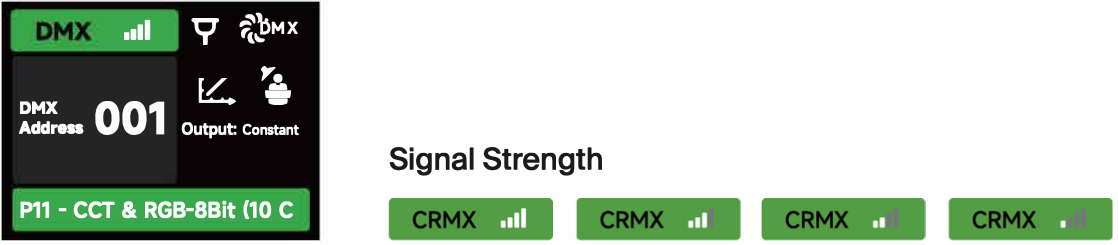

• Signal Strength: When DMX data is provided to the Control Box acting as an RX , the DMX Status Screen will indicate the CRMX signal strength the Control Box is receiving.

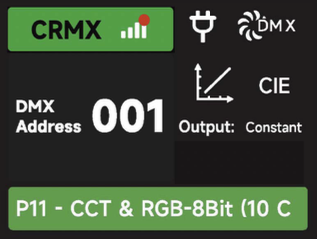

• No DMX data present.

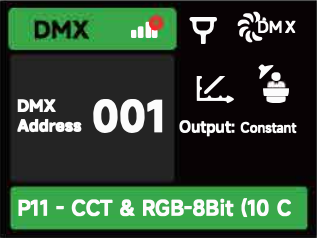

• The Control Box CRMX RX is out of range of its TX. Check that the TX is powered On and
  within range.
