[STORM 1000c] Getting Started

Setting up your STORM 1000c

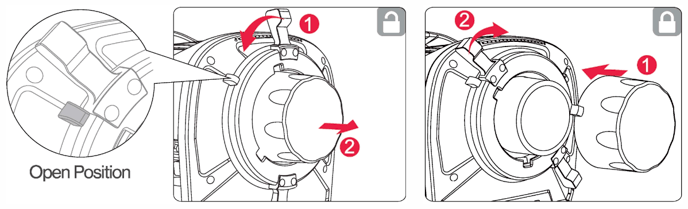

Attaching/Detaching the Protection Cover

To detach the cover, rotate the Pro-Lock Handle to the open position and remove it. To
reattach the cover, insert it into place and rotate the Pro-Lock Handle clockwise until locked.

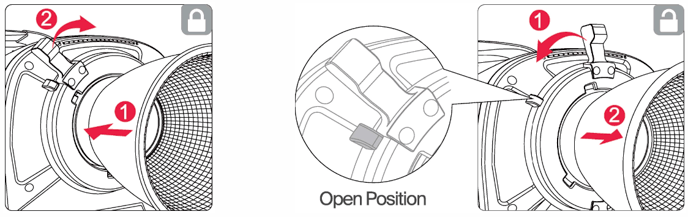

Attaching/Detaching the Reflector

To attach the Reflector, insert it into the Bowen Bayonet Mount and rotate the Pro-Lock
Handle clockwise until locked. To detach the Reflector, rotate the Pro-Lock Handle to the
open position and remove it.

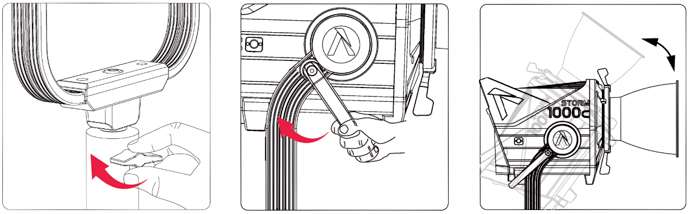

Setting Up the Lamp Head

Mount the Lamp Head into a Junior Receiver and tighten in place. Loosen or tighten the disc brake handle on the yoke to adjust the fixture's angle of tilt.

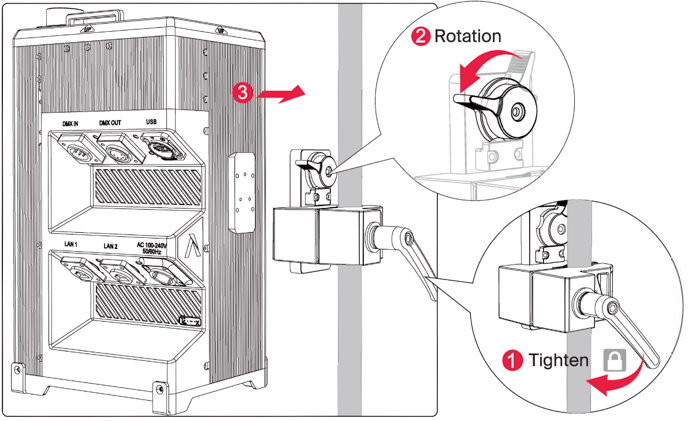

Using the Lightning Clamp

1. Attach the Lightning Clamp onto a light stand.

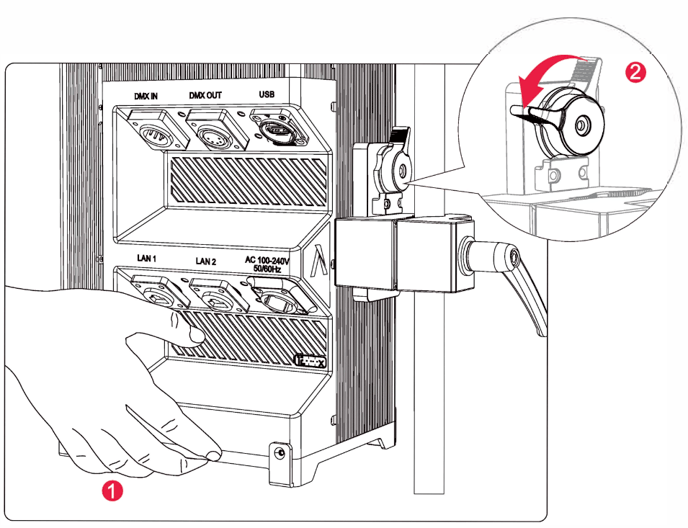

2. To attach the Control Box, rotate the release lever to unlock the quick-release plate.Then
   mount the Control Box onto the Lightning Clamp (the release lever will spring back) and
   check that it is secure.


3. To remove the Control Box, grasp it firmly, and unlock the quick-release plate.

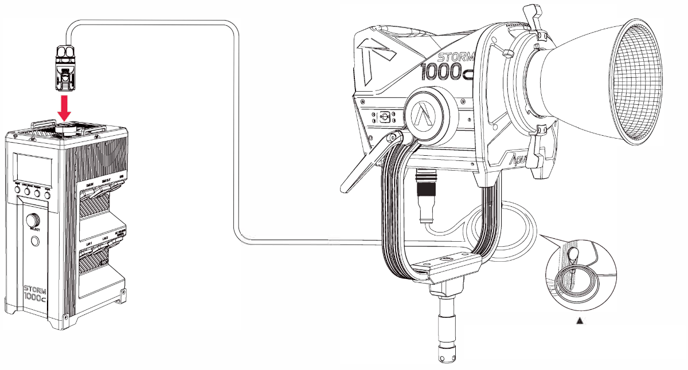

Connecting the Lamp Head to the Control Box

Connect the Lamp Head to the Control Box using the 8-pin Weatherproof Head Cable .

Hang the cable using the strain relief to
manage and reduce tension on the cable

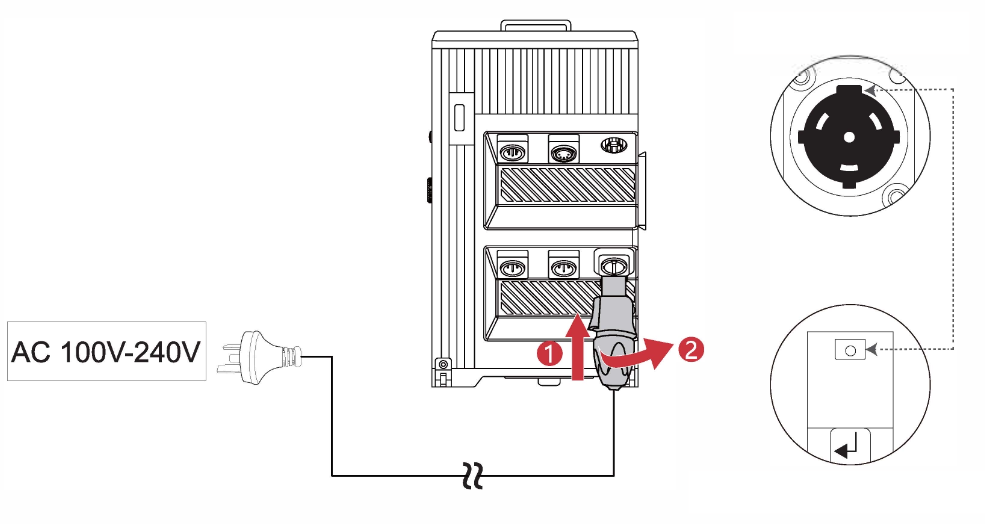

Powering Up the Control Box

powerCON IN

Plug positioning slot
