      [STORM 1200x] Fixture Details & Buttons

      Fixture Details & Buttons of STORM 1200x

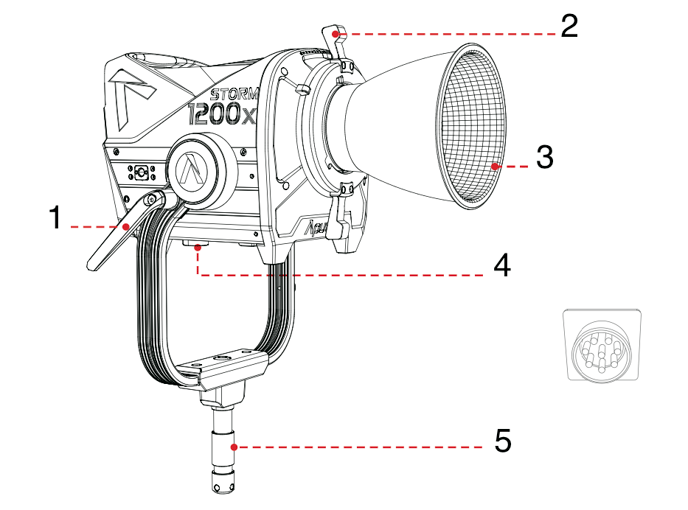

      Lamp

      storm_1200x_lamp_head

      1. Ratcheting Disk Brake Handle
      2. Pro Lock Handle
      3. Wide Angle Reflector
      4. 8-Pin Weatherproof Head Cable Connector
      5. Junior Pin (1.125in/28mm)

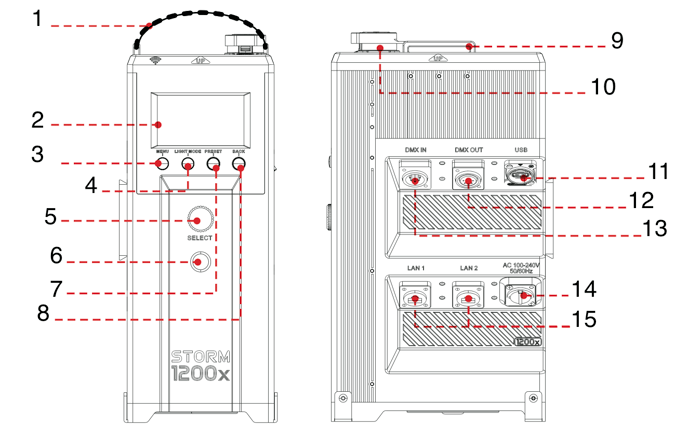

      storm_1200x_control_box

      1. Carry Strap 9. Carry Strap Plate
      2. LCD Display 10. 8-Pin Female Head Cable Connector
      3. Menu Button 11. USB-A Port
      4. Light Mode Button 12. DMX OUT Port
      5. Select Wheel 13. DMX IN Port
      6. Power Button

      14. NEUTRIK ® powerCON AC 100-240V Input
      7. Preset Button 15. EtherCON RJ45 Ports
      8. Back Button
