      [Storm 1200x] Setting up and Powering

      Setting up and Powering Storm 1200x

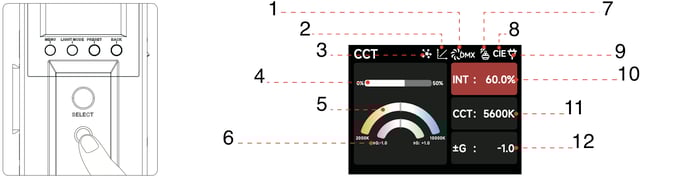

      Powering On/Off

      Connect the power supply and press the power button on the Control Box to turn on/off.

      storm_1200x_powering_on_and_off

      1. Fan Mode

      2. Dimming Curve
      3. Lead/Follow Mode
      4. Intensity
      5. Color Temperature

      6. ±G

      7. Studio Mode
      8. White Light Standard Mode
      9. AC Power
      10. Intensity
      11. Correlated Color Temperature
      12. Green/Magenta Adjustment

      If your fixture has Studio Mode "ON': the Control Box will power on whenever power is supplied to it.

      Status Indicator Icons

      Lead/Follow Mode: Leader

      		 storm_1200x_leadfollow_leader

      Sidus BT Enabled

      		 storm_1200x_sidus_bt_enabled

      Lead/Follow Mode: Follower

      		 storm_1200x_leadfollow_follower

      Receiving CRMX data

      		 storm_1200x_receiving_crmx_data

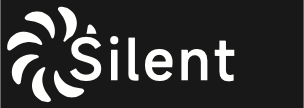

      Fan Mode: Silent

      		 storm_1200x_fan_mode_silent

      CRMX connected, no DMX data

      		 storm_1200x_connected_to_crmx_no_dmx_data

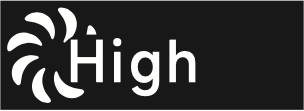

      Fan Mode: High

      		 storm_1200x_fan_mode_high

      Connected to CRMX, no transmitter found

      		 storm_1200x_connected_to_crmx_no_transmitter_found

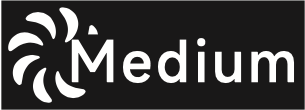

      Fan Mode: Medium

      		 storm_1200x_fan_mode_medium

      Ethernet

      		 storm_1200x_ethernet

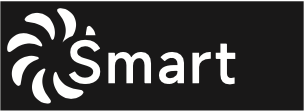

      Fan Mode: Smart

      		 storm_1200x_fan_mode_smart

      AC Power Detected

      		 storm_1200x_ac_power_detected

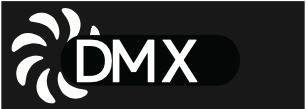

      Fan Mode: DMX

      		 storm_1200x_fan_mode_dmx

      CIE Daylight

      		 storm_1200x_cie

      Dimming Curve: Linear

      		 storm_1200x_dimming_curve_linear

      Blackbody

      		 storm_1200x_blackbody

      Dimming Curve: S-Curve

      		 storm_1200x_dimming_curve_s_curve

      Studio Mode: ON

      		 storm_1200x_studio_mode_on

      Dimming Curve: Exponential

      		 storm_1200x_dimming_curve_exponential

      Studio Mode: OFF

      		 storm_1200x_studio_mode_off

      Dimming Curve: Logarithmic

      		 storm_1200x_dimming_curve_logarithmic

      High-Speed Mode Enabled

      		 storm_1200x_high_speed_mode_enabled
