[STORM 80c] Setting up and Powering

Setting up and Powering STORM 80c

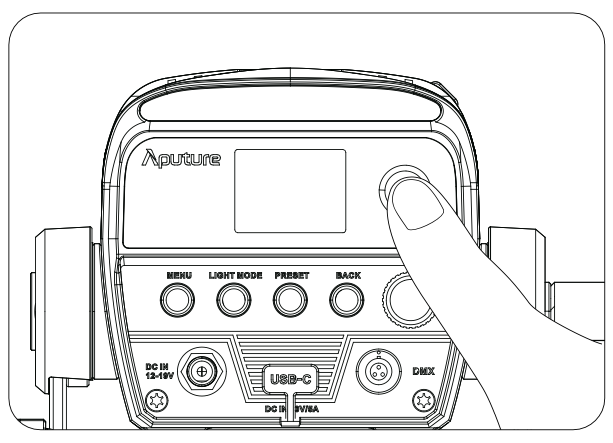

Powering On/Off

Connect the power supply and press the power button on the Control Box to turn on/off.

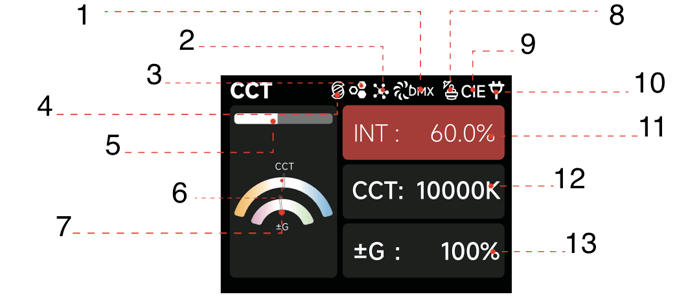

1. Fan Mode
2. Lead/Follow Mode
3. CRMX Settings
4. BT
5. Intensity
6. Color Temperature
7. ±G
8. Studio Mode
9. White Light Standard
10. AC Power
11. Intensity
12. Correlated Color Temperature
13. Green/Magenta Adjustment

Status Indicator Icons

Lead/Follow Mode: Leader		Sidus BT Enabled
Lead/Follow Mode: Follower		Receiving CRMX Data
Fan Mode: Silent		CRMX Connected, no DMX Data
Fan Mode: High		Connected to CRMX, no transmitter found
Fan Mode: Medium		AC Power Detected
Fan Mode: Smart		CIE Daylight
Fan Mode: DMX		Blackbody
Studio Mode: ON		Studio Mode: OFF
Battery Power
