[STORM CS32] Ethernet Settings

Open Control Settings > Ethernet Settings from the Menu to view and edit the fixture's network configuration.

View IP

View the Control Box's IP Address, Subnet Mask, Gateway IP, and MAC Address.

Protocol

Choose which control protocol the Control Box listens to:

• Auto Detect – identifies the protocol automatically
• Art-Net – recognizes Art-Net only and ignores sACN
• sACN – recognizes sACN only and ignores Art-Net

IP Mode

DHCP: the fixture automatically receives an IP address from a DHCP server. The IP Address, Subnet Mask, and Gateway IP cannot be edited in this mode.

Static: manually set the IP Address, Subnet Mask, and Gateway IP.

• Edit IP – short-press the Select Wheel to edit a digit, rotate to choose a position, valid range 0–255. Choose Apply or Apply & Save to a preset.
• IP Presets – save up to 10 IP addresses and recall, edit, or apply them later. The same preset workflow applies to Subnet Mask and Gateway IP.

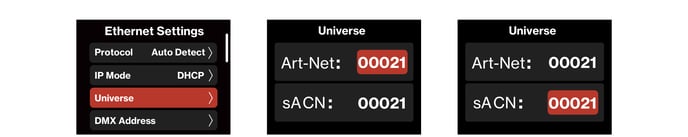

Universe

Set the Universe for Art-Net (00000–32767) and sACN (00001–63999).

DMX Address

Set the fixture's DMX Address for use over Ethernet control.
