[STORM CS32] Product Overview

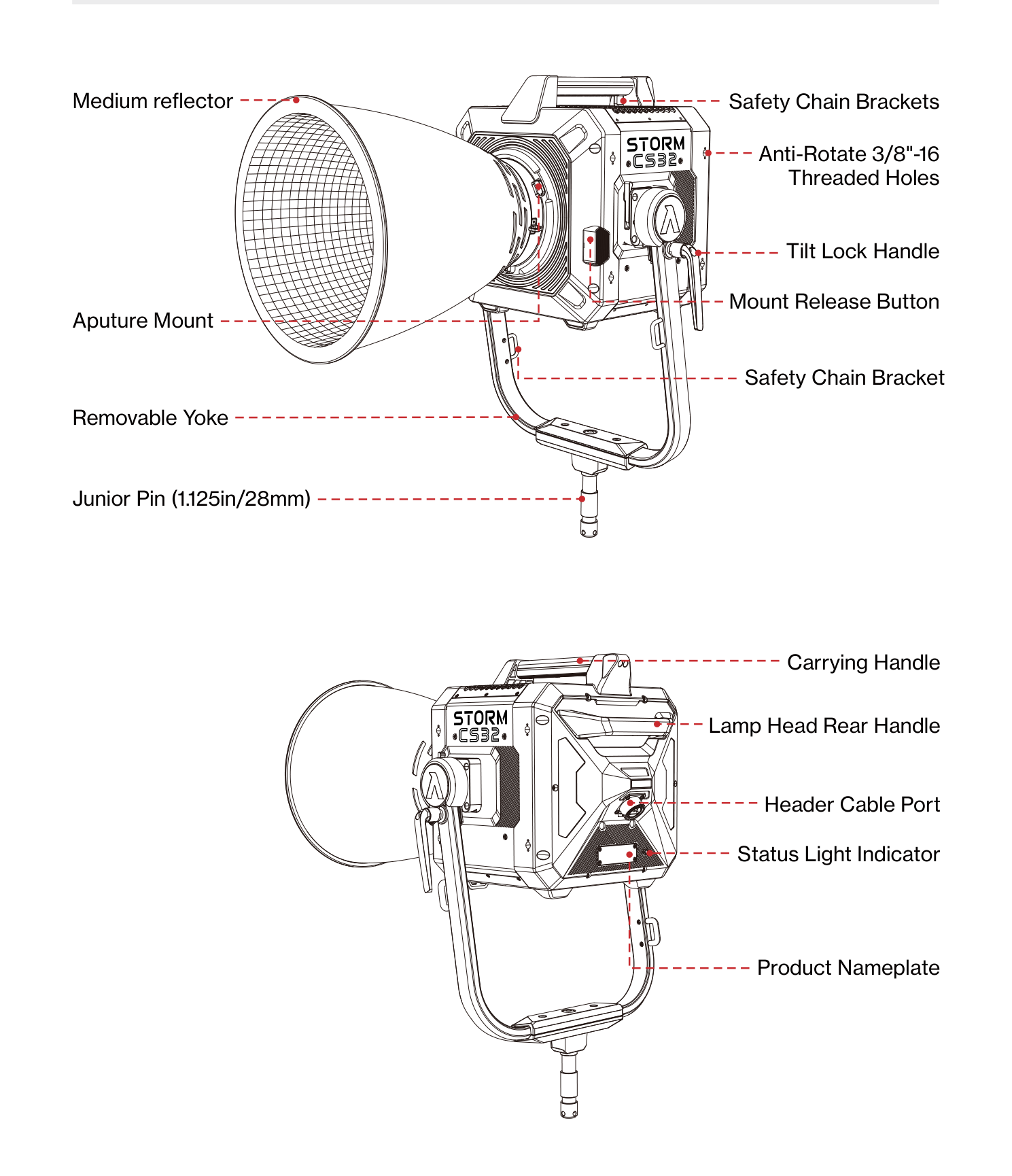

Lamp Head

• Medium Reflector – the standard reflector included with the CS32
• Aputure Mount – accepts all Aputure Mount optical accessories
• Removable Yoke – detaches from the Lamp Head for rigging flexibility
• Junior Pin (1.125 in / 28 mm) – standard junior receiver mount
• Safety Chain Brackets – for attaching a certified safety chain
• Anti-Rotate 3/8"-16 Threaded Holes
• Tilt Lock Handle – locks the tilt angle of the Lamp Head
• Mount Release Button – releases optical accessories from the Aputure Mount
• Carrying Handle and Lamp Head Rear Handle
• Header Cable Port – connects to the Lamp Head Cable
• Status Light Indicator and Product Nameplate

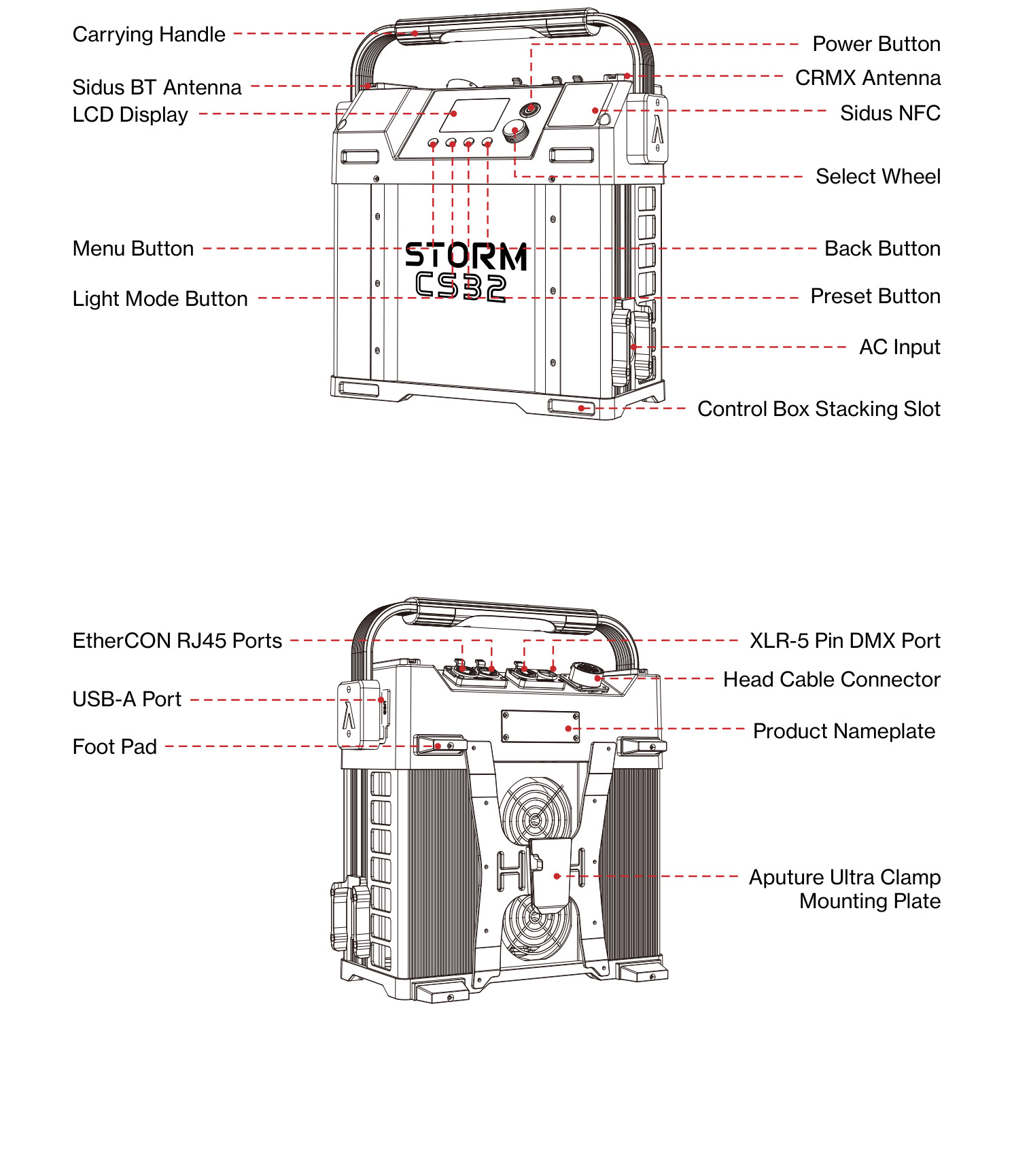

Control Box

• Power Button and Carrying Handle
• CRMX Antenna and Sidus BT Antenna
• Sidus NFC
• LCD Display
• Menu Button, Light Mode Button, Back Button, Preset Button, and Select Wheel
• AC Input and Control Box Stacking Slot
• EtherCON RJ45 Ports and XLR-5 Pin DMX Port
• Head Cable Connector
• USB-A Port and Foot Pad
• Product Nameplate
• Aputure Ultra Clamp Mounting Plate
