[STORM XT52] CRMX Settings

CRMX Settings of STORM XT52

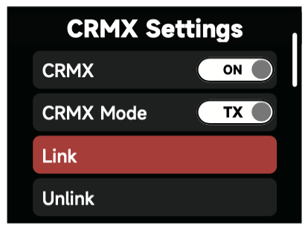

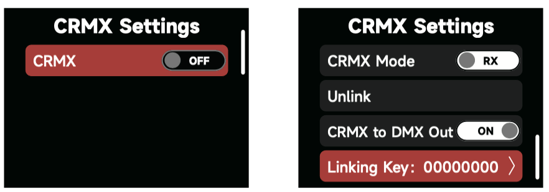

Turn CRMX ON or OFF.

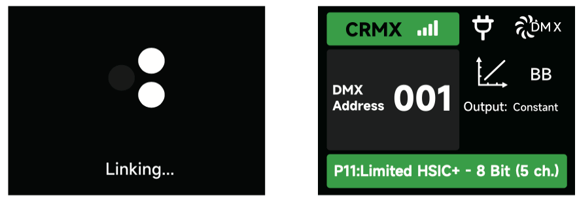

(1) When CRMX is ON, the fixture will listen for its previously linked Transmitter. If the fixture is currently unlinked, it will listen for a Transmitter link signal and link to any new CRMX link signal. Users can Unlink from previously linked Transmitters by selecting Unlink. Once a CRMX Link is established and DMX data is present, the display will change to the DMX Status Screen.

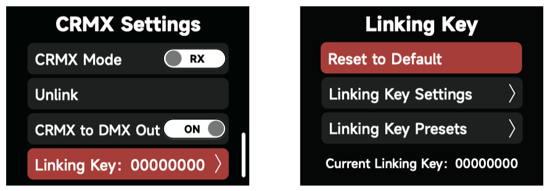

(2) When in CRMX RX Mode, if CRMX to DMX Out is "ON", DMX data is pushed out of the DMX Out Port. If CRMX to DMX Out is "OFF", no data is pushed out of the DMX Out Port.

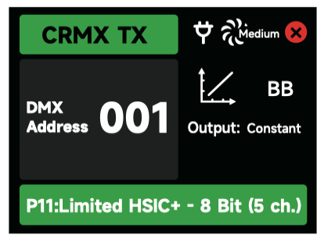

(3) When utilizing CRMX TX Mode, the Control Box can transmit DMX data to CRMX receivers.

(4) While acting as a CRMX TX, the Control Box can have a Linking Key for RX's to link to.

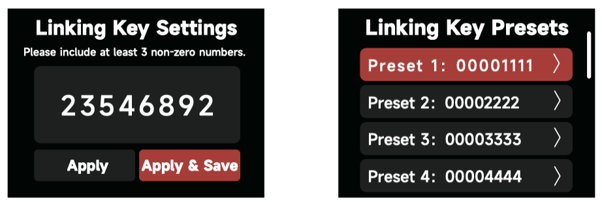

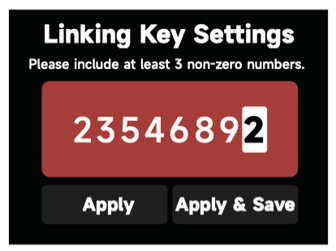

a. In the Linking Key interface, choose an 8 digit number to be the Linking Key. Three digits cannot be "0".

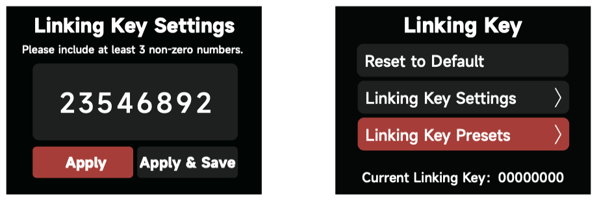

b. Choose "Apply" to set the Linking Key. Presets can be saved for future use by selecting "Apply & Save".

c. Save 10 Presets in total.

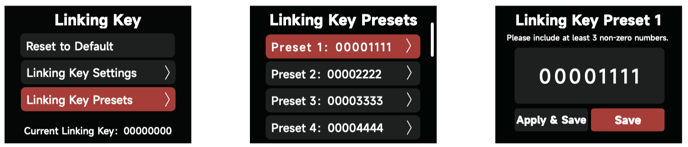

d. In the Linking Key Preset interface, save up to 10 Presets by choosing "Save" or set the Control Box's Linking Key and save it as the selected Preset by choosing "Apply and Save".

(5) CRMX RX (Receiving) Status

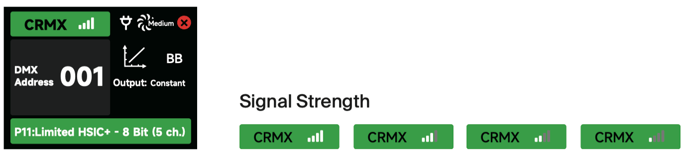

a. Signal Strength: When DMX data is provided to the Control Box acting as an RX , the DMX Status Screen will indicate the CRMX signal strength the Control Box is receiving.

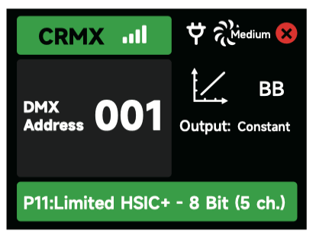

b. CRMX Signal is good and DMX data is present

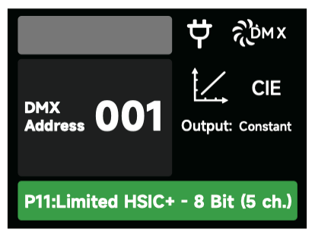

c. No DMX data present.

d. The Control Box CRMX RX is out of range of its TX. Check that the TX is powered On and within range.
