[STORM XT52] DMX Settings

DMX Settings of STORM XT52

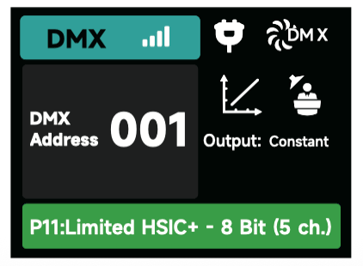

(1) DMX Status Screen: Displays DMX data status, the DMX address, the DMX Profile being used, the CRMX Signal Strength, Fan Mode, Dimming Curve, Studio Mode in use, Output Mode and Power Status.

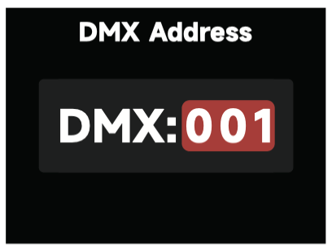

(2) DMX Address: Set the DMX address of this fixture.

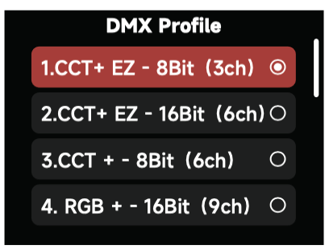

(3) DMX Profile: Choose which DMX Profile to use. Refer to the DMX Chart for the specifics of each profile.

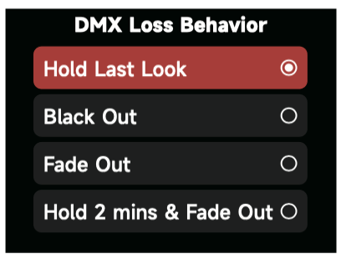

(4) DMX Loss Behavior - Choose from the following options:

I. Hold Last Look: When DMX signal is lost, DMX values will be retained until signal is regained.

II. Black Out: When DMX signal is lost, the light will black out.

III. Fade to Black: When DMX signal is lost, the light will wait for 60 seconds before fading to black.

IV. Hold 2 min.& Fade Out: When DMX signal is lost, the DMX values are retained for two minutes before fading out over a duration of 60 seconds.

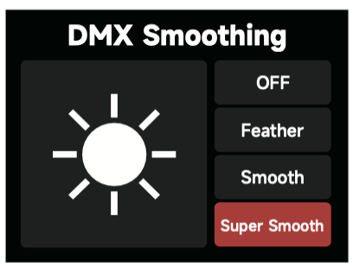

(5) DMX Smoothing: Set the smoothness of DMX dimming.

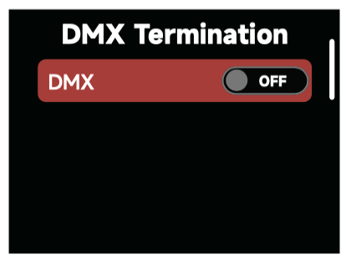

(6) DMX Termination: Turn ON (to help with DMX signal reflection) or OFF.
