[STORM XT52] Ethernet Settings

Ethernet Settings of STORM XT52

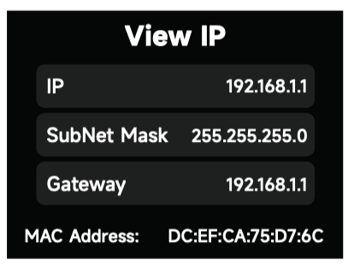

View the IP Address, Subnet Mask, Gateway IP and the MAC Address of the Control Box.

Protocol

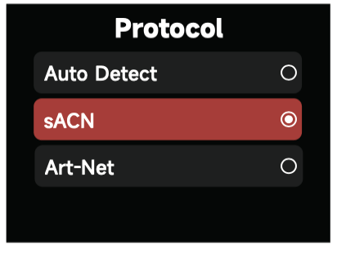

Select the Control Protocol for this Control Box to listen to. Choose between Auto, Art-Net or sACN.

(a) Automatic: Identifies the Control Protocol automatically.

(b) Art-Net: Recognizes the Art-Net Protocol only and ignores sACN.

(c) sACN: Recognizes the sACN Protocol only and ignores Art-Net.

IP Mode

(1) IP Mode DHCP:

The fixture will automatically receive an IP address from the DHCP server. When in DHCP IP Mode, the IP Address, Subnet Mask and Gateway IP Address cannot be edited.

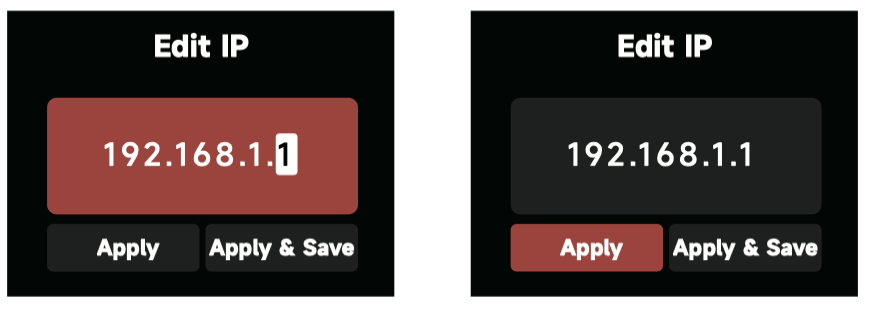

(2) IP Mode Static:

Manually set the IP address, Subnet Mask and the Gateway IP address.

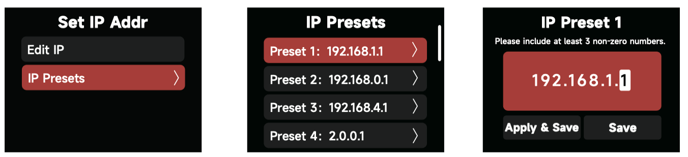

a. In the Presets interface, Select a Preset to edit or apply.

Presets can be edited and saved without applying them to the Control Box's current IP settings. (save 10 IP Presets in total)

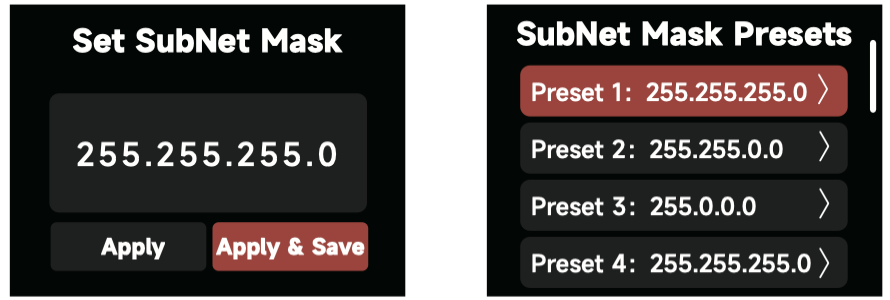

b. Set SubNet Mask

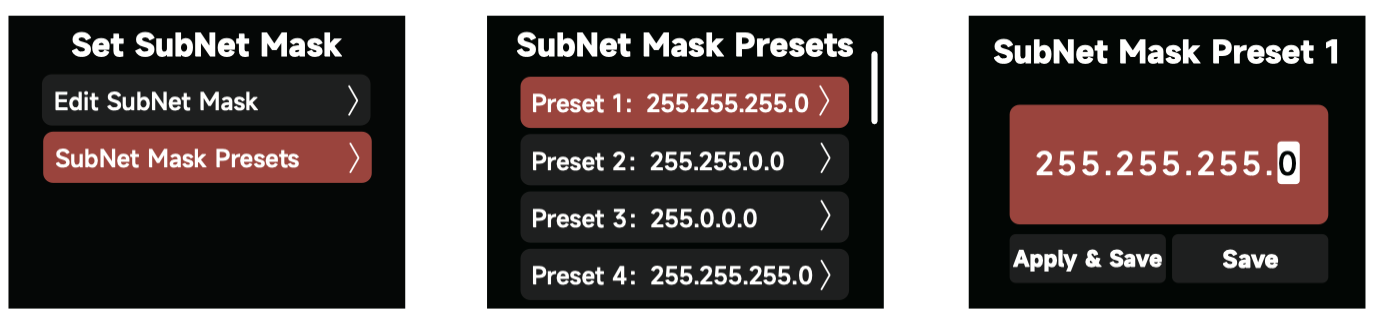

Using the Select Wheel, edit the SubNet Mask information for the Control Box. Use the “BACK Button” to Exit the interface.

Presets can be saved for future use by selecting "Apply & Save".

Presets can be edited and saved without applying them to the Control Box's current IP

settings. (save 10 SubNet Mask Presets in total)

In the Presets interface, Select a Preset to edit or apply.

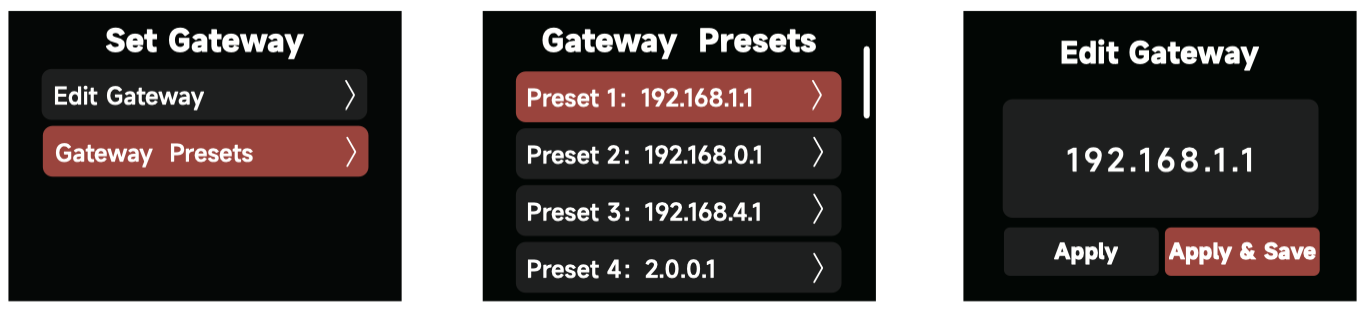

c. In the Presets interface, Select a Preset to edit or apply

Presets can be edited and saved without applying them to the Control Box's current IP settings.

Universe

Set the Universe of Art-Net and sACN: Art-Net (00000-32767), sACN (00001-63999).

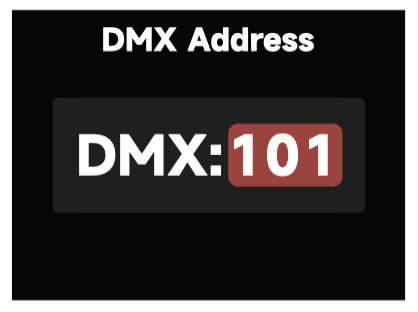

DMX Address: Set the DMX Address

Lead/Follow Mode

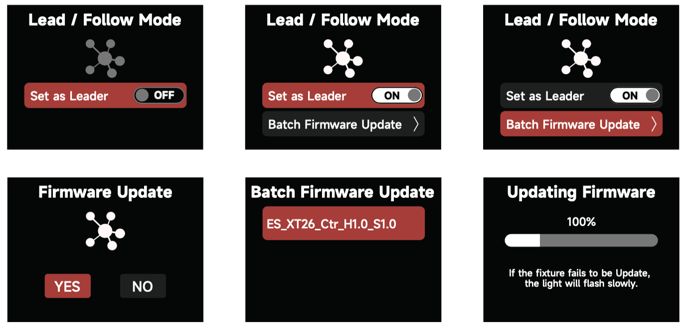

In this interface, set fixtures as either the Leader or the Follower (Leader/"OFF"). The Leader automatically sends its settings to the Follower fixtures for synchronization. Batch upgrades of the firmware from a USB drive in the Leader's port is also possible.
