      [STORM XT52] Getting Started

      Setting up your STORM XT52

      Attaching/Detaching the Aputure Mount Protection Cover

      Press the button in the direction of the arrow shown in the diagram, while simultaneously rotating and pulling out the protective cover. To install the protective cover, rotate it in the opposite direction.

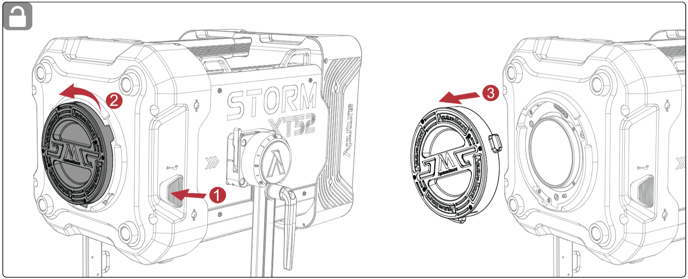

      Detaching the Aputure Mount Protection Cover

      storm_13

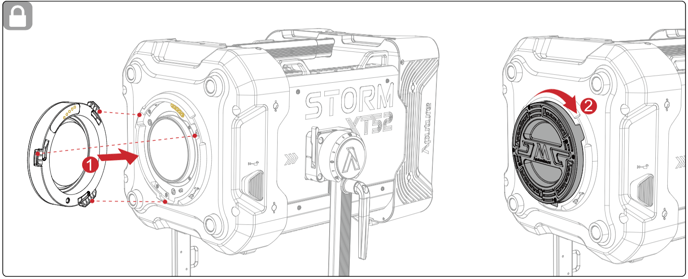

      Attaching the Aputure Mount Protection Cover

      storm_14

      Before use, please make sure to remove the protective cover. During transportation and storage, please attach the protective cover.

      Attaching / Detaching the Reflector

      Press the button in the direction of the arrow shown in the diagram, while simultaneously
      rotating and pulling out the reflector. To install the reflector, rotate it in the opposite
      direction.

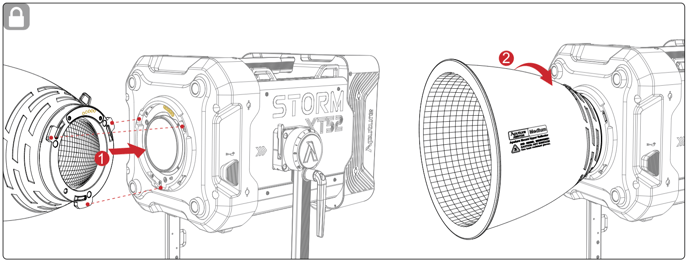

      Attaching the Reflector

      storm_15

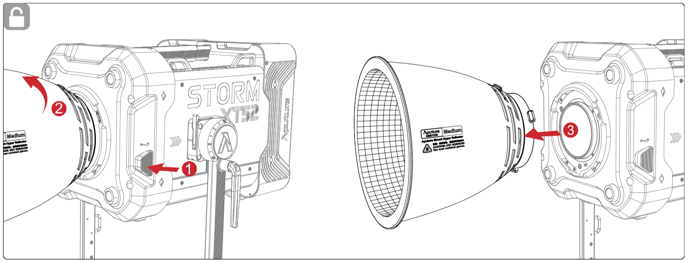

      Detaching the Reflector

      storm_16

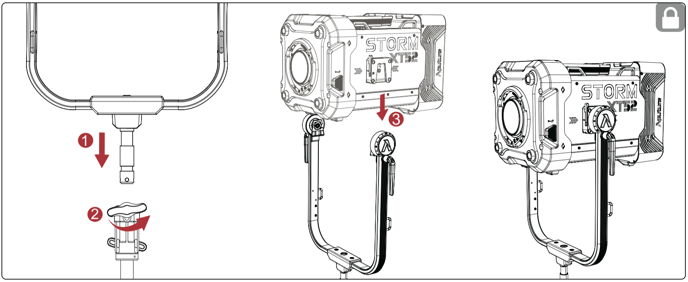

      Attaching the Yoke

      Insert the lamp yoke Junior Pin into a 1.125 inch / 28 mm Junior Pin receiver. Lift the lamp
      head, align it with the quick-release mechanism and lower the lamp head vertically to
      complete the installation.

      storm_17

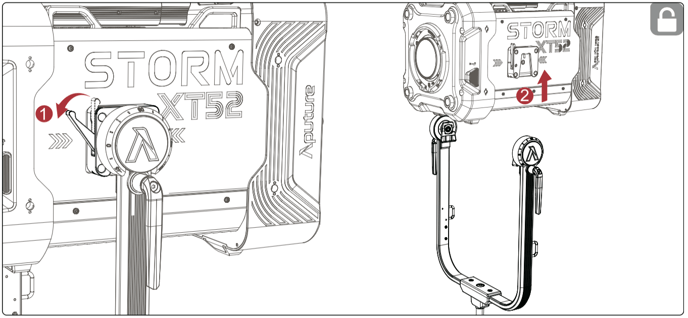

      Detaching the Yoke

      While holding the Carrying Handle of the lamp, turn the Yoke Release Lever on both sides
      of the yoke until they unlock. Lift the lamp head upwards to remove it from the yoke.

      storm_18

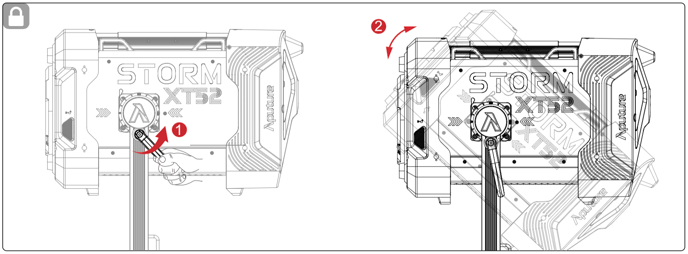

      Setting Up the Lamp Head

      Loosen or tighten the disc brake handle on the yoke to adjust the fixture's angle of tilt.

      storm_19

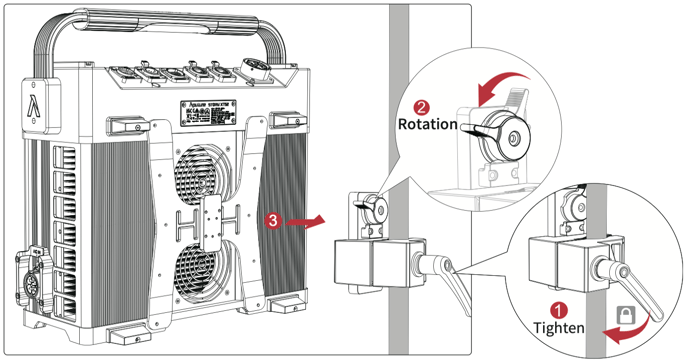

      Using the Lightning Clamp

      1) Attach the Lightning Clamp onto a light stand.

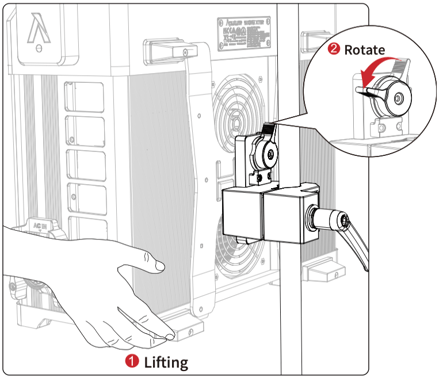

      2) To attach the Control Box, rotate the release lever to unlock the quick-release plate.
      Then mount the Control Box onto the Lightning Clamp (the release lever will spring back)
      and check that it is secure.
      3) To remove the Control Box, grasp it firmly and unlock the quick-release plate by turning
      its lever.

      storm_20

      storm_21

      The Lightning Clamp can attach to round or square fittings with a diameter of 2-5cm/0.79-1.97 in.

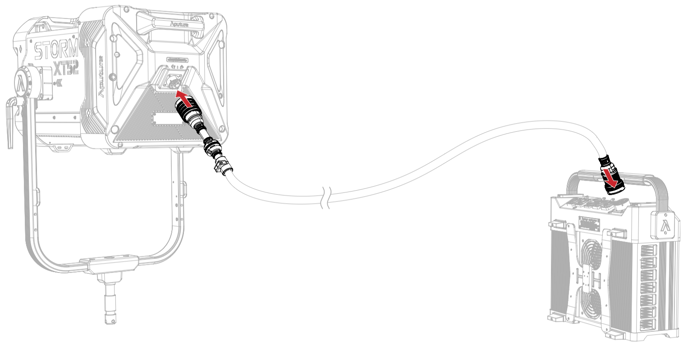

      Connecting the Lamp Head to the Control Box

      storm_22

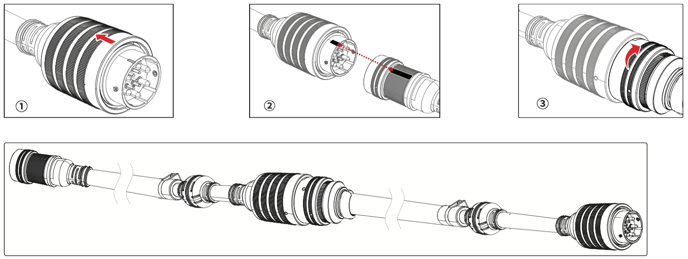

      Connect the Lamp Head to the Control Box using the 7.5m Extended Head Cable.

      1) Grip the male connector housing and pull it back.

      2) Align the male and female connectors.

      3) Rotate the outer shell of the female connector until you hear a "click" sound, indicating a

      secure connection.

      storm_23

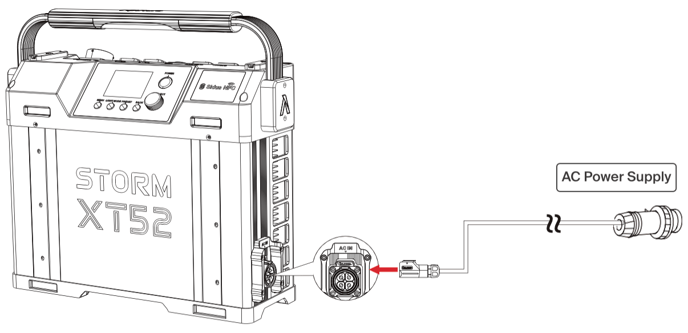

      Powering Up to the Control Box

      XT52 supports a full voltage range operation from 100V to 240V.
      When operating with 100V–179V AC power, the maximum power consumption is 3200W.
      When operating with 180V–240V AC power, the maximum power consumption is 6000W
      (when using a 45-meter head cable).

      storm_24

      Before use, please ensure that the power supply system can support
      the maximum power consumption of the XT52. If the actual maximum output of the power system is insufficient or if the AC output is not up to specifications, the XT52’s power protection mechanism will be triggered, resulting in malfunction or inability to operate properly.
