[STORM XT52] Lighting Modes

Lighting Modes of STORM XT52

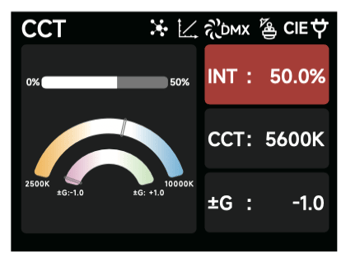

CCT Mode

Adjust the Color Temperature (2500K-10000K) and the ±Green level (-1.00 through +1.00).

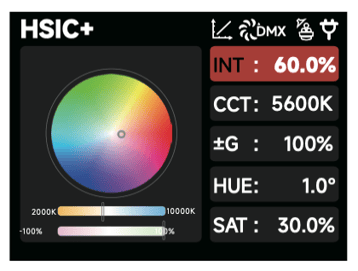

HSIC+ Mode

Adjust the intensity (0-100%), Color Temperature (2500K-10000K), ±Green level (-100% +100%) and Hue / Saturation.

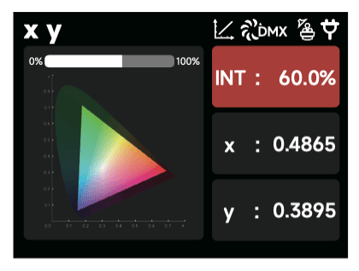

xy Mode

Set the x coordinate value (0.1550-0.6815), y coordinate value (0.0300-0.5500) and the Intensity.

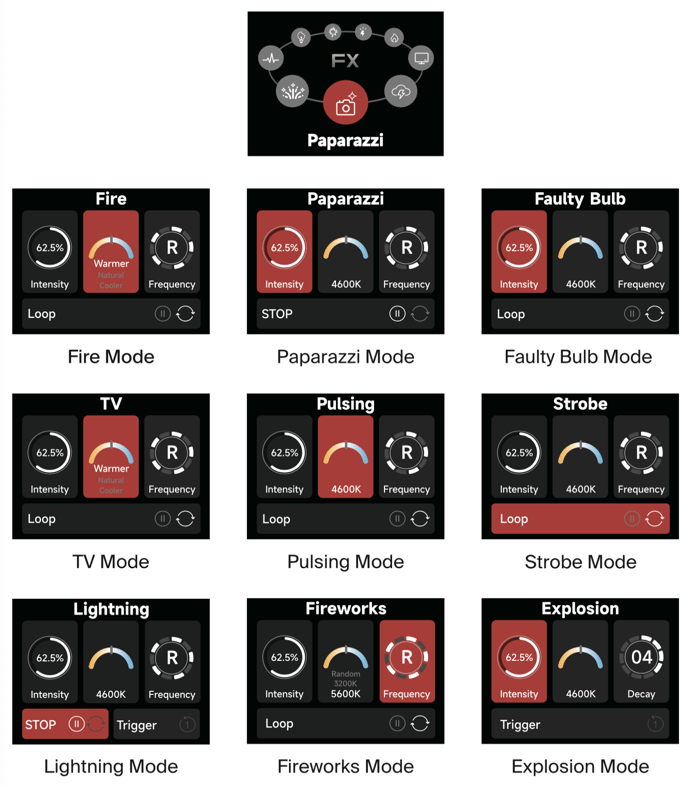

FX Mode

Select between FX modes: Paparazzi / Fireworks / Faulty Bulb / Lightning / TV / Pulsing / Strobe / Explosion / Fire.

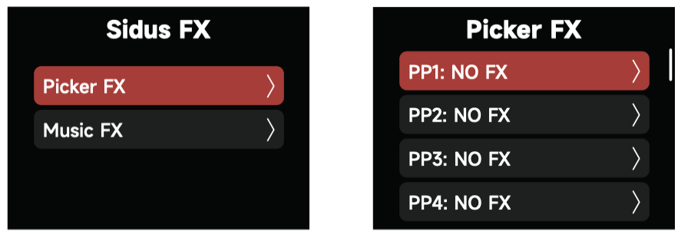

Sidus FX Mode

Select either Picker FX or Music FX. Both custom FX choices can save up to 10 FX. "NO FX" indicates that nothing has been saved to this slot. Untitled indicates that an effect has been saved to the slot. The two types of light effects can save 10 custom light effects each. The suffix "NO FX" indicates that no light effect has been saved.
