      [STORM XT52] Product Overview

      Product Overview of STORM XT52

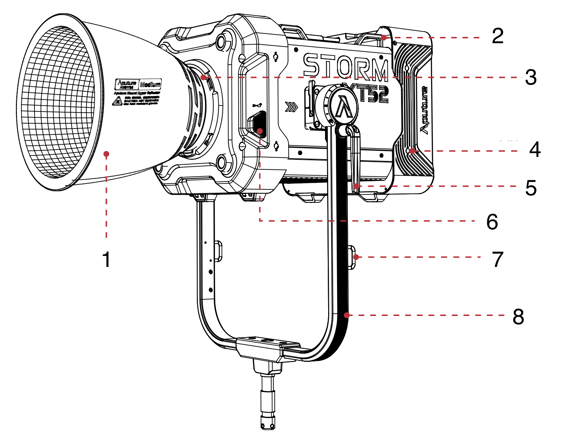

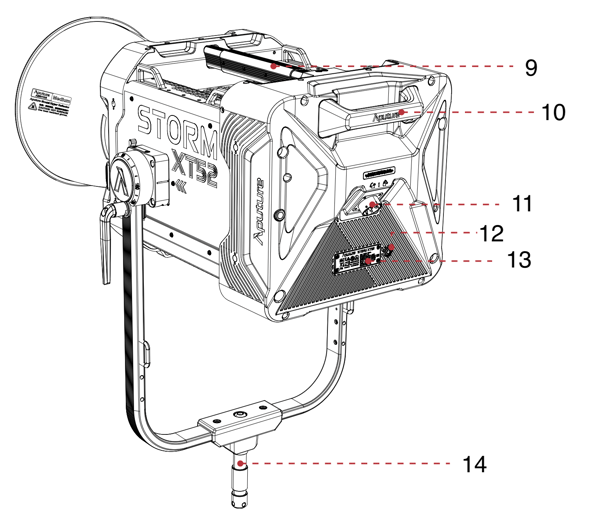

      1. Lamp Head

      storm_09

      storm_10

      1. Medium-Angle Reflector

      2. Safety Chain Brackets

      3. Aputure Mount

      4. Anti-Rotate 3/8"-16 Threaded Holes

      5. Tilt Lock Handle

      6. Mount Release Button

      7. Safety Chain Bracket

      8. Removable Yoke

      9. Carrying Handle

      10. Lamp Head Rear Handle

      11. Header Cable Port

      12. Status Light Indicator

      13. Product Nameplate

      14. Junior Pin (1.125in/28mm)

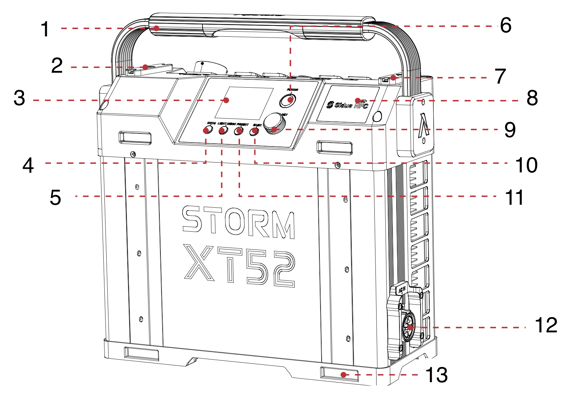

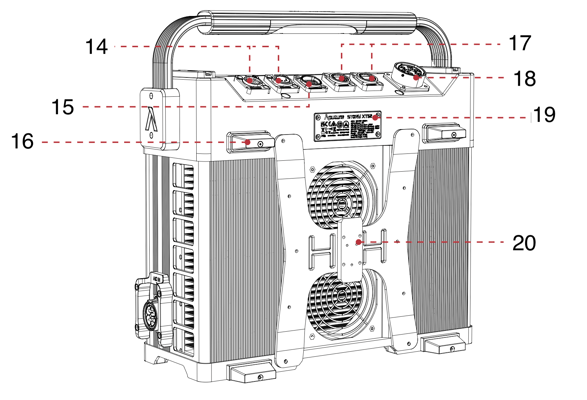

      2. Control Box

      storm_11

      storm_12

      1. Carrying Handle

      2. Sidus BT Antenna

      3. LCD Display

      4. Menu Button

      5. Light Mode Button

      6. Power Button

      7. CRMX Antenna

      8. Sidus NFC

      9. Select Wheel

      10. Back Button

      11. Preset Button

      12. AC Input

      13. Control Box Stacking Slot

      14. XLR-5 Pin DMX Port

      15. USB-A Port

      16. Foot Pad

      17. EtherCON RJ45 Ports

      18. Head Cable Connector

      19. Product Nameplate

      20. Lightning Clamp Block
