[STORM XT52] Setting up and Powering

Setting up and Powering of STORM XT52

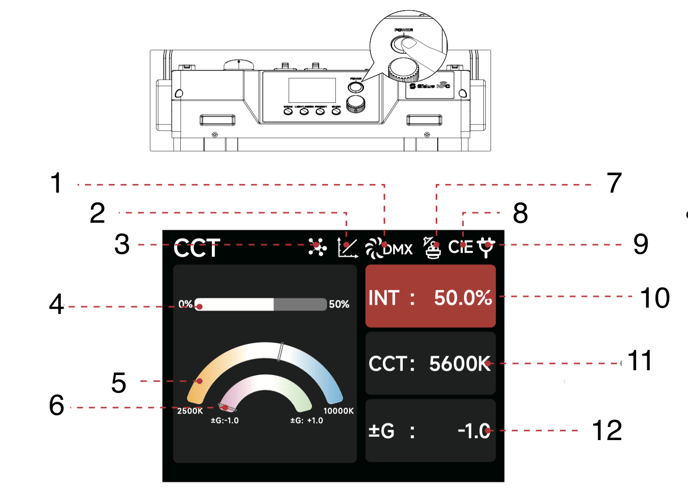

storm_25

1. Fan Mode

2. Dimming Curve

3. Lead/Follow Mode

4. Intensity

5. Color Temperature

6. ±G

7. Studio Mode

8. White Light Standard Mode

9. AC Power

10. Intensity

11. Correlated Color Temperature

12. Green/Magenta adjustment

If your fixture has Studio Mode "ON': the Control Box will power on whenever power is supplied to it.

Lead/Follow Mode: Follower		Sidus BT Enabled
Lead/Follow Mode: Leader		Receiving CRMX data

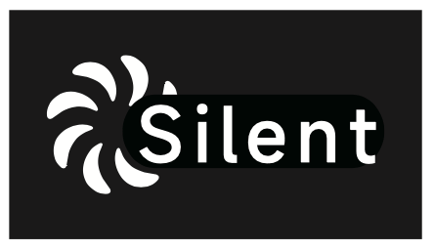

Fan Mode: Silent		CRMX connected, no DMX data

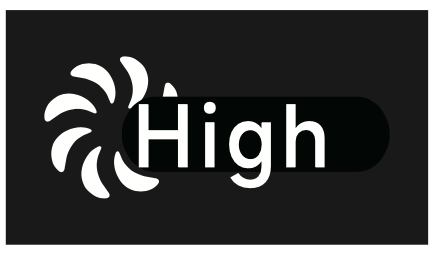

Fan Mode: High		Connected to CRMX, no transmitter found

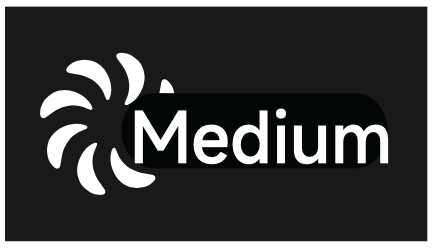

Fan Mode: Medium		Ethernet

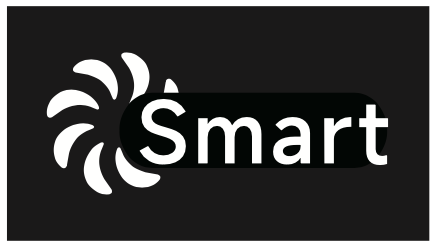

Fan Mode: Smart		AC Power Detected

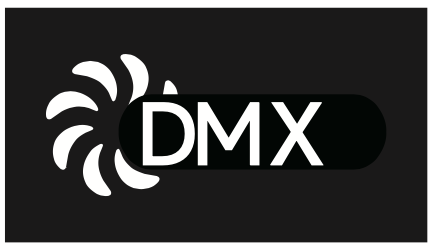

Fan Mode: DMX		CIE Daylight
Dimming Curve: Linear		Blackbody
Dimming Curve: S-Curve		Studio Mode: ON
Dimming Curve: Exponential		Studio Mode: OFF
Dimming Curve: Logarithmic		Head Cable Length

Status Indicator Light

Building on the error codes, the XT52 adds status indicators that allow users to observe and assess the fixture's status from a distance.

Indicator	Status	Description
Control Box Indicator	Off	Control box power is not connected, or the control box power supply is damaged
	Red	Control box power is normal, but the control unit is malfunctioning
	Green	Control box power is normal, and the control unit is functioning normally
	Orange	Control box power is normal, but the control unit has detected a product fault
Lamp Head Indicator	Off	Lamp head power is not connected, or the lamp head power supply is damaged
	Red	Lamp head power is normal, but the lamp head control unit is malfunctioning
	Green	Lamp head power is normal, and the lamp head is functioning normally
	Orange	Lamp head power is normal, but the control unit has detected a product fault

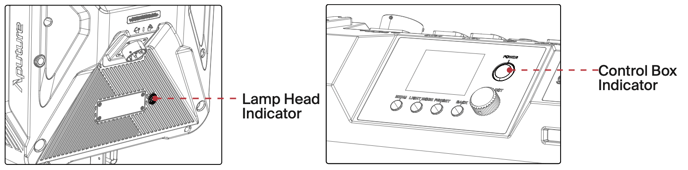

storm_111

Operation	Description
Long press MENU for 5 seconds	Factory Reset
Long press BACK for 5 seconds	Sidus BT Rest
In the MENU interface, short press BACK	Returns the current control source
