[STORM 700x] Fixture Details & Buttons

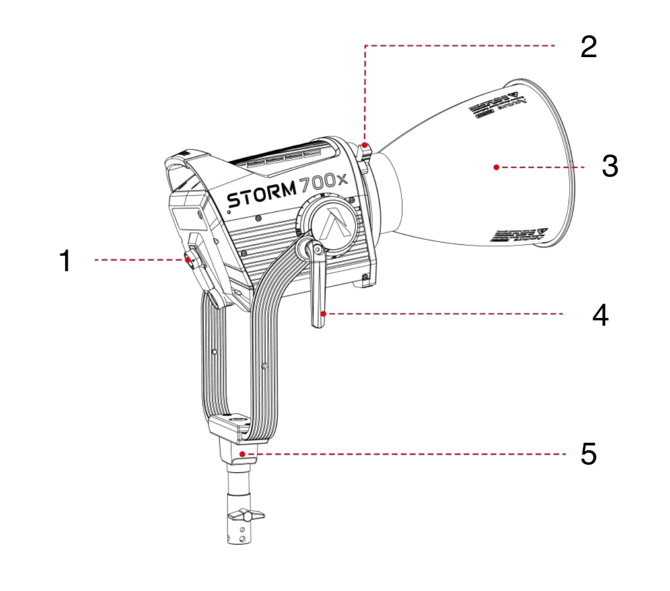

Lamp Head

1. 8-pin Weatherproof Head Cable Connector

2. ProLock Handle

3. 35° Reflector

4. Ratcheting Disk Brake Handle

5. 28mm/16mm Junior/Baby Pin

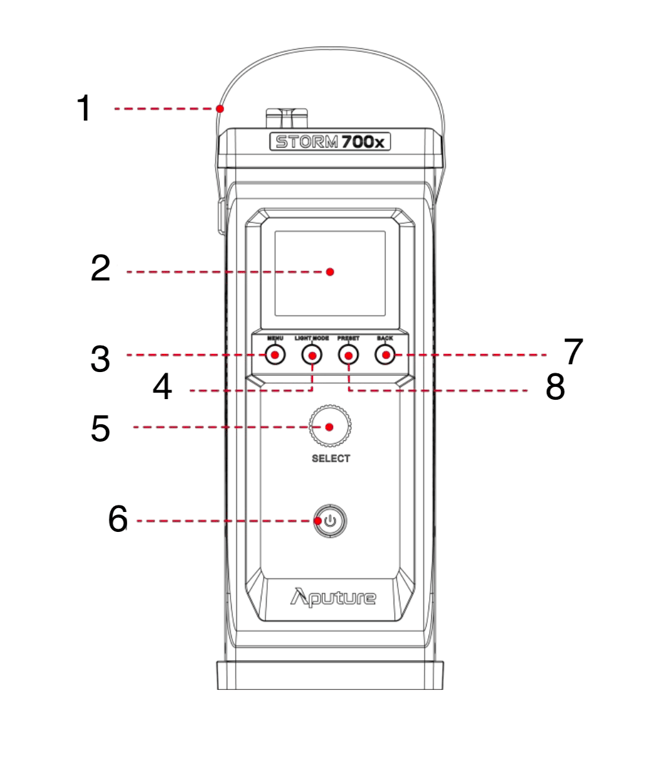

Control Box

1. Carry Strap

2. LCD Display

3. Menu Botton

4. Light Mode Button

5. Select Wheel

6. Power Button

7.  Back Button

8. Preset Button

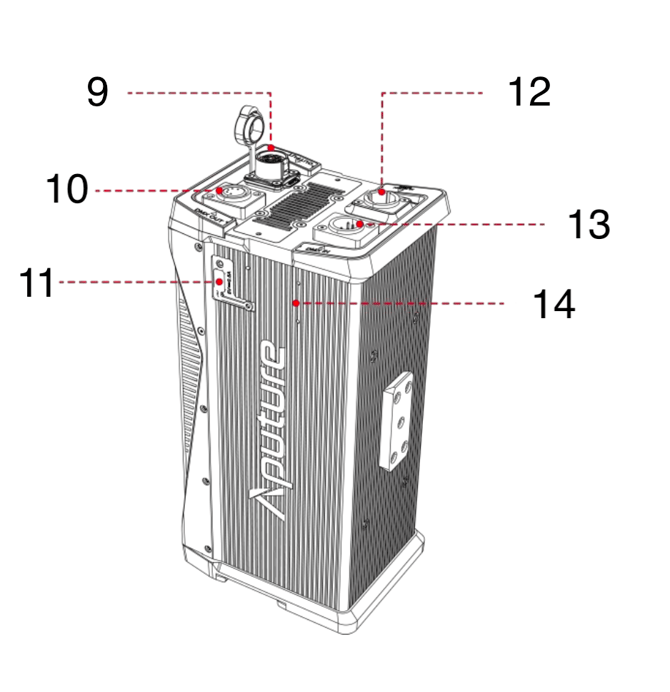

 9. 5pin Female Head

10. DMX OUT Port

11.  USB-A Port

12. AC 100-240V Input

13. DMX IN Port

14. Carry Strap Plate
