[STORM 700x] Manual Control of Control Box

Manual Control of Control Box

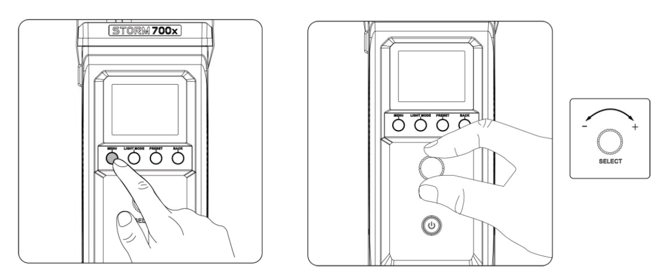

Press the button on the Control Box to enter the corresponding modes: MENU, LIGHT MODE, and PRESET.

1

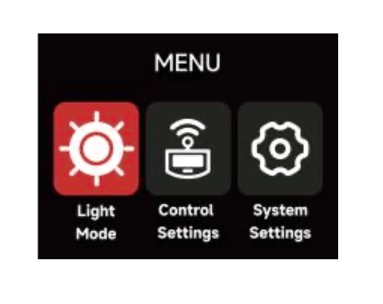

Menu

Press the MENU button to enter the System Menu interface. Choose between Light Mode, Control Settings or System Settings.

2

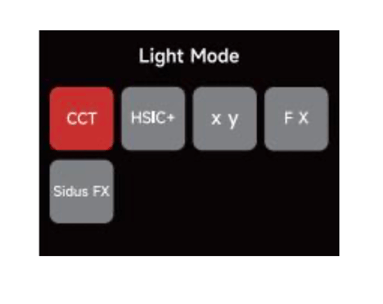

Accessing Lighting Modes

Press the Light Mode Button on the Control Box to enter the Light Mode interface. Choose
between CCT, HSIC+, xy, FX, and Sidus FX modes.

3

Light Modes can only be accessed when no DMX data is present. Please ensure that DMX data is not being listened to by the Control Box in order to use Light Modes.

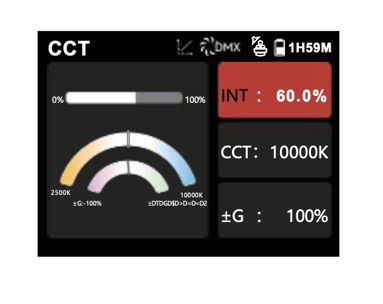

CCT

Adjust the Color Temperature (2500K-10000K) and the ±Green level (±100%).

4

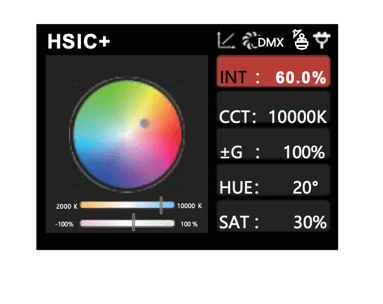

HSIC+

Adjust the Intensity (0-100%), Color Temperature (1800K-20000K), ±Green level (-100%
through +100%), Hue, and Saturation.

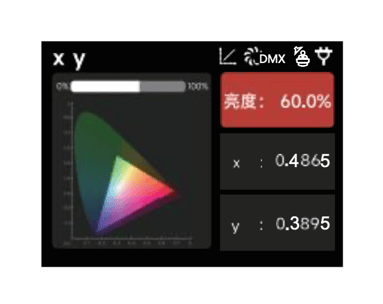

5xy

Set the x coordinate value (0.1556~0.6814) and y coordinate value (0.0307~0.5456) and the Intensity.

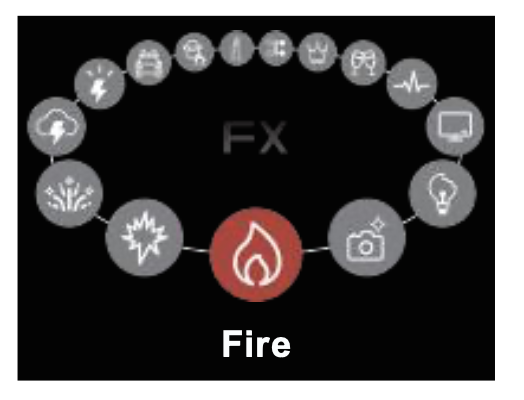

6FX

Select between FX modes: Fireworks / Explosions / Flames / Paparazzi / Defective Bulb /
TV /Pulse / Flash/ Lightning.

  7
8 9 10

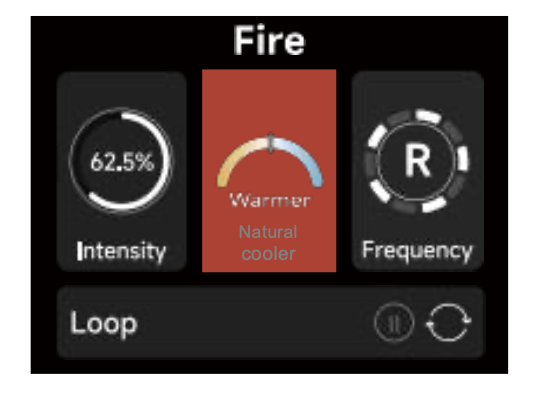

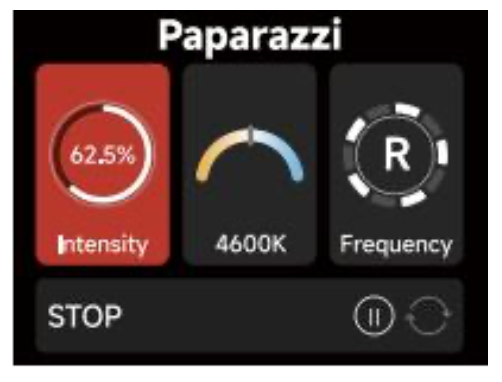

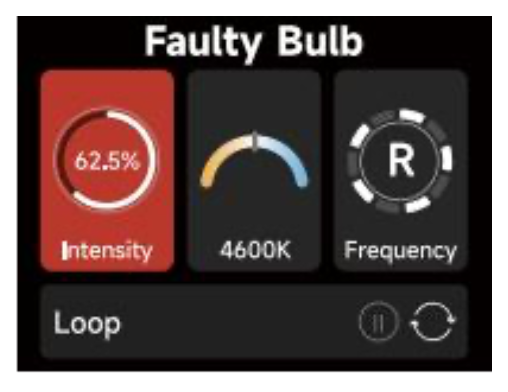

Flame Mode Paparazzi Mode Faulty Bulb
11 12 13

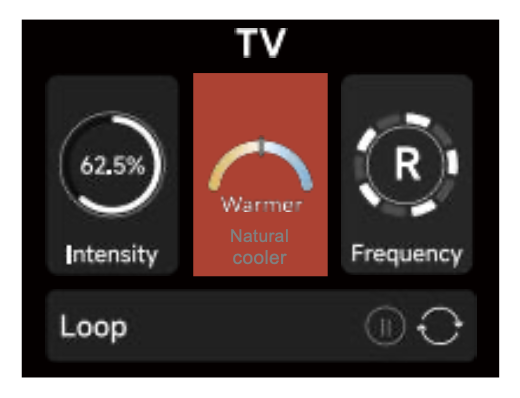

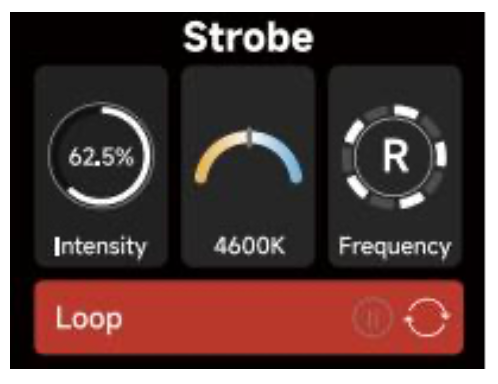

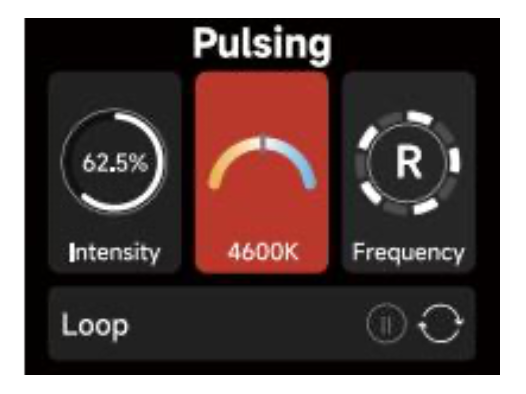

TV Mode Pulse Mode Flash Mode
14 15 16

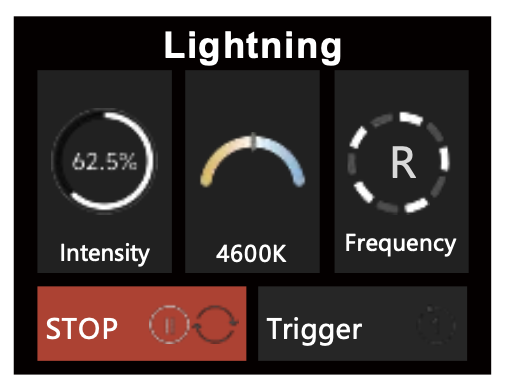

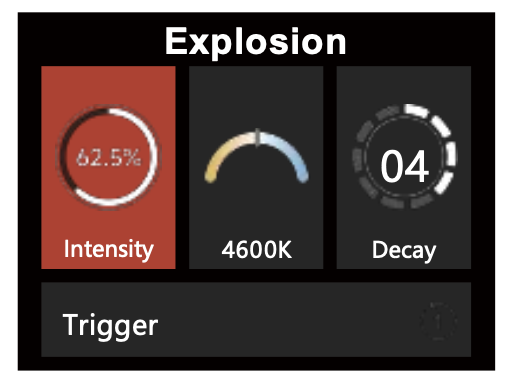

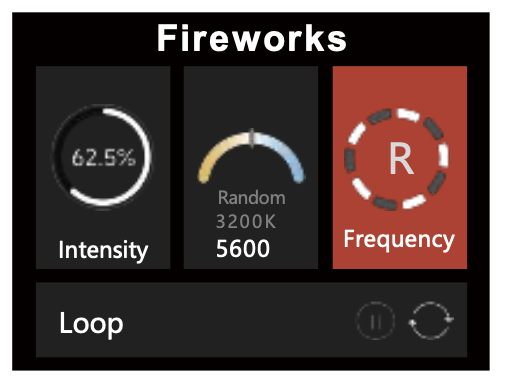

Lightning Mode Fireworks Mode Explosion Mode

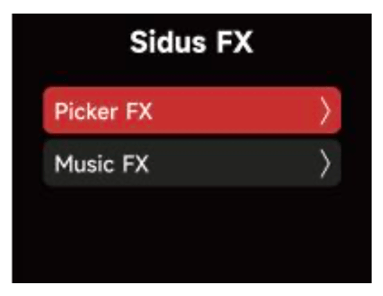

Sidus FX Mode

Select either Picker FX or Music FX. Both custom FX choices can save up to 10 FX. "NO FX" indicates that nothing has been saved to this slot. Untitled indicates that an effect has been saved to the slot. The two types of light effects can save 10 custom light effects each. The suffix "NO FX" indicates that no light effect has been saved.

17

You can download custom lighting effects by connecting to the Sidus Link APP.
