🎛️Control Options

[amaran 60x S] Controlling amaran 60x S

Controlling amaran 60x S

1. Menu

amaran_60x_s_menu-1

2. INT / CCT

Brightness adjustment:
a. Rotate the INT adjusting knob to adjust the brightness with 1% variable, and the brightness change range is (0-100) %, and display the change of (0-100) % in real time on the LIGHT body LCD display.
b. Click the INT adjustment knob to quickly switch the brightness level: 20%→40%→60%→80%→100% →20%→40%→60%→80%→ 100% cycle switch.

amaran_60x_s_brightness_adjustment

CCT adjustment:

a.rotate the knob to adjust the CCT with 100K variable and the CCT range is 2700K~6500K and display the change of 2700K~6500K in real time on the LIGHT body LCD display.
b.Click the knob to quickly switch the CCT: 2700k→3200k→4300k→5600k→6500k cycle switch.

amaran_60x_s_cct_adjustment-1

3. FX

Connect Sidus Link® APP, the user can find the Bluetooth serial number corresponding to the lamp in the APP and connect. When controlling the light effect through the APP, "FX" will be displayed on the upper left corner of the screen. In wireless mode, 9 lighting effects can be controlled through APP: Paparazzi / Fireworks / Faulty Bulb / Lightning / TV / Pulsing / Strobe / Explosion / Fire.

4. BT Settings

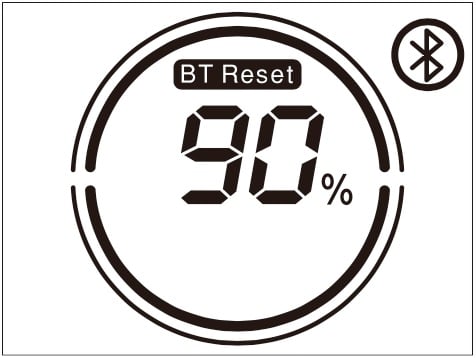

1. Long press the Bluetooth reset button to reset Bluetooth.
2. During the reset process, the LCD displays “BT Reset” and the Bluetooth icon is flashing, and the percentage shows the current reset progress.

amaran_60x_s_bt_settings

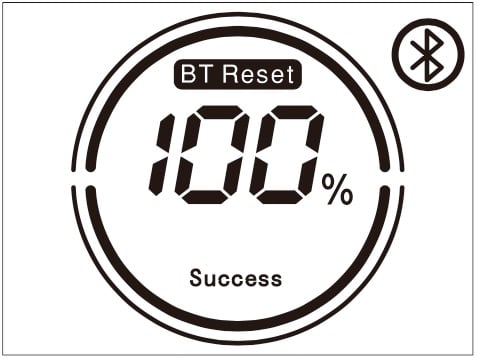

3. The LCD will display “Success” after the Bluetooth reset is successful.

amaran_60x_s_bt_reset_success-1

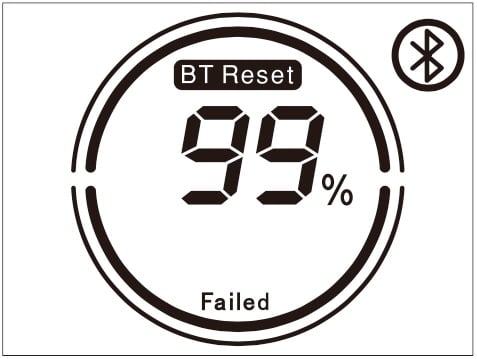

4. The LCD will display “Failed” after the Bluetooth reset is unsuccessful.

amaran_60x_s_bt_reset_failed-1

5. After resetting the light's Bluetooth connection, your mobile phone or tablet will be able to connect to and control the light.
