[amaran Ace 25c] Getting Started

Powering and Setting Up amaran Ace 25c

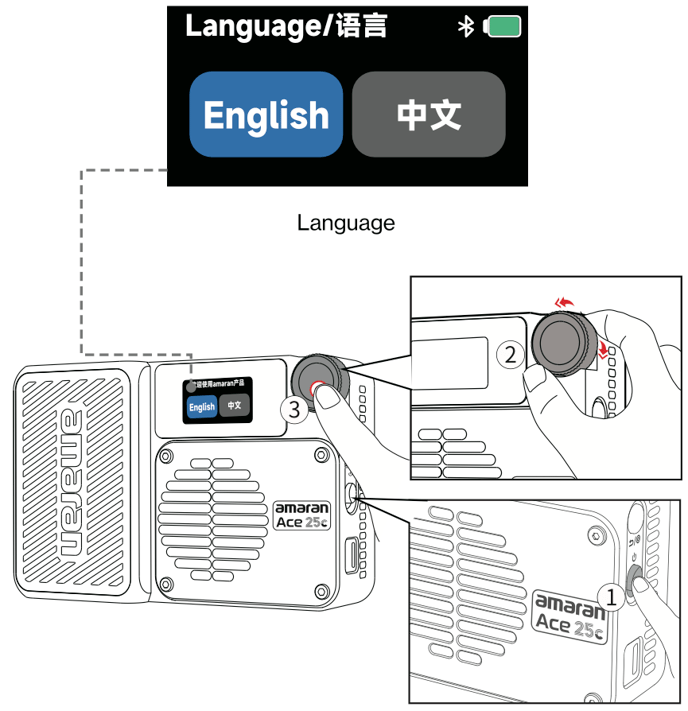

Powering On/Off

1. Toggle the power button on the side of the fixture to turn the light on.
2. You can select your preferred language when you turn the light on for the first time. Rotate the dial to select your language.
3. Click to Confirm.

amaran Ace Lock Operation

The top section is designed for attaching the light fixture, while the bottom features a 1/4-inch screw hole for easy mounting on a light stand. Additionally, it comes with a cold shoe mount for installation on top of a camera. To use the cold shoe mount, first loosen the blue nut at the bottom, insert the Amaran Ace Lock cold shoe mount into the camera's cold shoe slot, then tighten the blue nut to secure the setup.

1. amaran Ace Lock quick release interface
2. Cold Shoe Mount
3. 1/4-inch screw hole

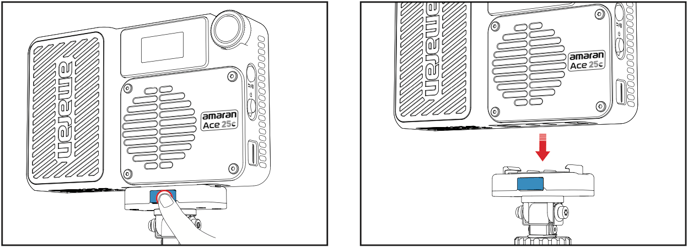

To install the amaran Ace Lock to Cold Shoe Adapter, press the blue release key and push towards the bottom of the light. The adapter is securely attached to the light when the pins are embedded into the amaran Ace Lock mount and when you hear a clicking noise.

Connect camera

amaran Ace Lock Installation

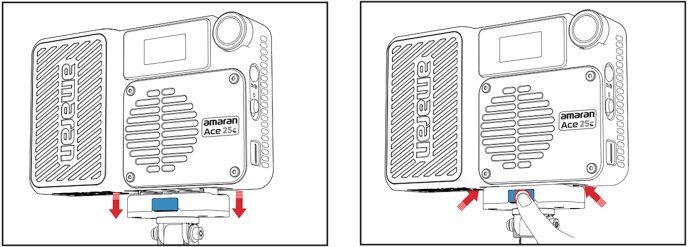

To install the amaran Ace Lock to Cold Shoe Adapter, press the blue release key and push towards the bottom of the light. The adapter is securely attached to the light when the pins are embedded into the amaran Ace Lock mount and when you hear a clicking noise.

To disassemble, press the blue release key on the amaran Ace Lock to Cold Shoe Adapter and pull downwards away from the light.

Back Magnetic Silicone Pad Operation

The silicone pad on the back of the amaran Ace 25c light has integrated magnets, allowing you to attach your light to any magnetic surface for easy or last minute mounting.
