[amaran Ace 25x] Menu Options

Menu options of amaran Ace 25x

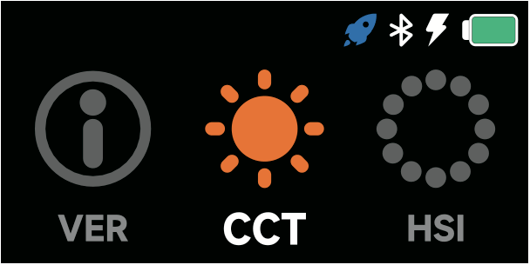

Rotate and press the knob to select light modes and settings.

CCT

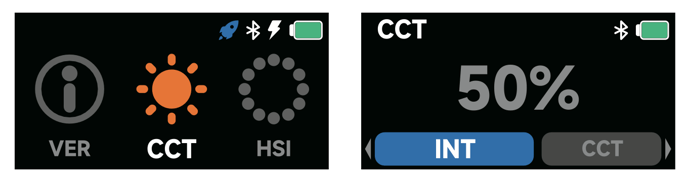

Rotate and press the knob to enter the CCT mode from the main menu. In CCT, press the knob to select INT or CCT and rotate the dial to adjust the corresponding value.

INT (Intensity): Adjust your light's brightness from 0% to 100%.
CCT (Correlated Color Temperature): Adjust your light's color temperature from warm white (2,700K CCT) to cool white (6,500K CCT).

FX

Rotate and press the knob to enter FX mode from the main menu. In FX, rotate and press the knob to select your lighting effect. Press again to enter the settings and rotate the dial to adjust the corresponding value.

Fireworks	Faulty Bulb	Lightning	TV	Pulsing
Strobe	Explosion	Fire	Paparazzi

Screenshot 2024-10-24 at 6.29.04 PM

Bluetooth Reset

Rotate and press the knob to enter BT mode from the main menu. Long press the knob until the end of the progress bar. Release the knob to cancel.

Screenshot 2024-10-24 at 6.30.33 PM Screenshot 2024-10-24 at 6.31.17 PM

Bluetooth reset is successful

Bluetooth reset is unsuccessful. Please reset the Bluetooth again.

Custom Mode

Rotate and press the knob to enter Custom mode from the main menu. In Custom mode, press the knob to select customizable shortcuts for long press (Hold) or double click (Double) of the return button. Rotate the dial to select between SOS/BT Reset/CCT/FX/Rotation/Boost short-cut functions. Short press of the return button defaults to the return/back function and cannot be changed.

Screenshot 2024-10-24 at 6.33.59 PM

Language

Rotate and press the knob to enter Language settings from the main menu. In Language, rotate the dial to toggle between English or Chinese. Press the knob to confirm your language.

Screenshot 2024-10-24 at 6.37.15 PM

Output Mode

The amaran Ace 25x has a reverse power output capability to act as a reverse power supply to keep your other equipment running in emergency power situations, including other compact lights, camera equipment, or mobile phones. The maximum DC charging output is 5V/2A. Rotate and press the knob to enter Output mode from the main menu. In Output, rotate the dial to toggle between On or Off. Press the knob to confirm your settings.

Screenshot 2024-10-24 at 6.39.10 PM

Once in the power output mode, the light will remain on the Output interface and cannot be used to output light. Press the return button to exit the Output mode and stop the reverse power output function.

Boost Mode

Rotate and press the knob to enter Boost mode from the main menu. In Boost, rotate the dial to toggle between On or Off. Press the knob to confirm your settings. When in Boost mode, the maximum power output will be increased from the standard 25W to 32W and can be used for long durations* without damage to the light fixture.

Screenshot 2024-10-24 at 6.41.17 PM

The fan noise of the light when in Boost mode will be slightly higher than in normal mode.

The data was measured at an ambient temperature of 40°C/104°F. Boost mode can be used for long periods within an ambient temperature of 40°C/104°F.

Fan Mode

Rotate and press the knob to enter Fan mode from the main menu. In Fan mode, rotate the dial to toggle between Silent and Smart fan mode. Press the knob to confirm your settings.

Silent Mode: The fan will be completely turned off, and the light will not produce any noise. The power output will be limited to 6.5W and can be operated for 4 hours 40 minutes at maximum brightness.
Smart Mode: The fan speed will automatically adjust according to the temperature of the light.

Firmware Upgrade

Firmware updates can be updated online via the amaran app.
