      [amaran F21x F22x F21c F22c] Getting Started

      Setting up and powering the amaran F21c F22c F21x F22x Fabric Light

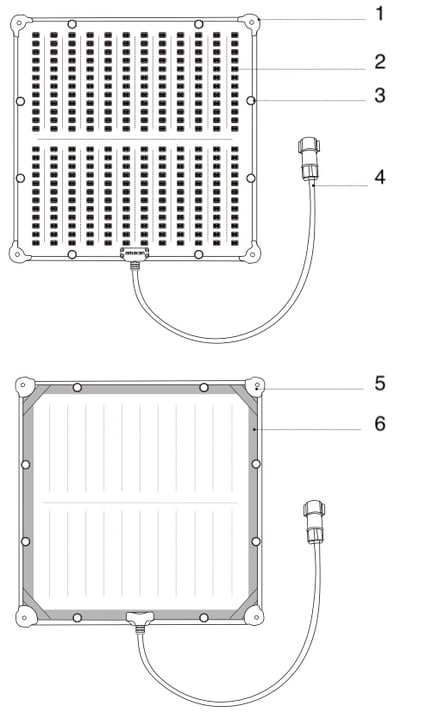

      Lamp Head

      F22 Series

      amaran_22_series_lamp_head

      1. Frame Mounting Corner
      2. LED Lamp Beads
      3. Mounting Hole
      4. Cable
      5. Frame Mounting Corner
      6. Velcro

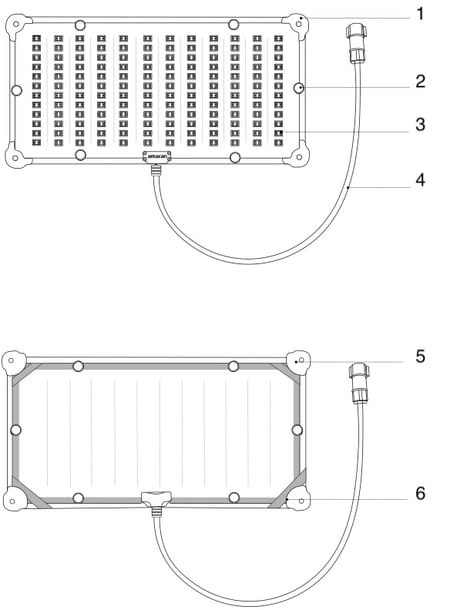

      F21 Series

      amaran_f21_series_lamp_head

      1. Frame Mounting Corner
      2. Mounting Hole
      3. LED Lamp Beads
      4. Cable
      5. Frame Mounting Corner
      6. Velcro

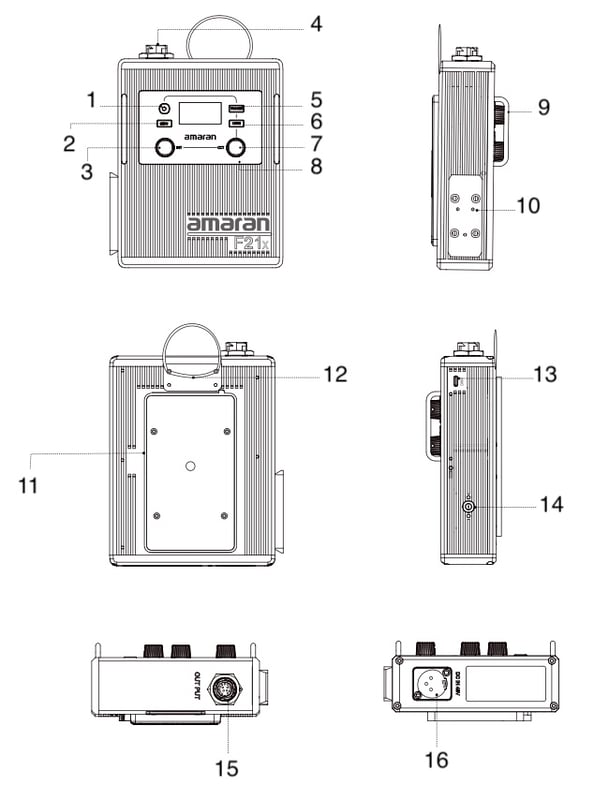

      Control Box

      F21/22 x Series

      f2122x_series_control_box

      1. ON/OFF 9. Protective Column
      2. MENU 10. Quick-Release Plate
      3. LIGHT MODE 11. Battery Plate (V-Mount or Anton Bauer)
      4. DC Output 12. Lanyard
      5. TRIGGER 13. DMX/Firmware upgrade port
      6. MODE 14. 1/4 Screw
      7. CCT  15. DC Output
      8. OLED SCREEN 16. DC IN

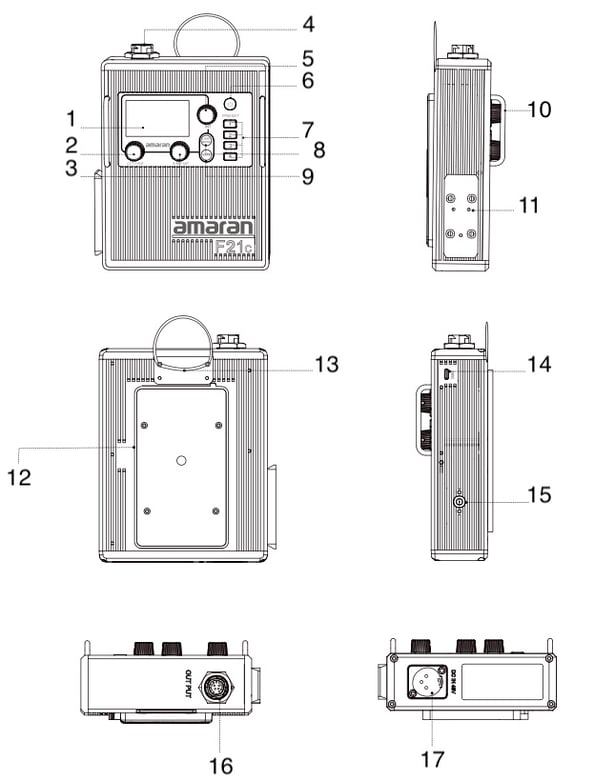

      F21/22 c Series

      f2122c_series_control_box

      1. OLED Screen 9. MENU
      2. CCT/HUE 10. Protective Column
      3. G/M/SAT 11. Quick Release Plate
      4. DC Output 12. Battery Plate (V-mount or Anton Bauer)
      5. INT 13. Lanyard
      6. ON/OFF 14. DMX/Firmware Upgrade Port
      7. PRESET 15. 1/4 Screw
      8. LIGHT MODE 16. DC Output
        17. DC IN



      Assembly

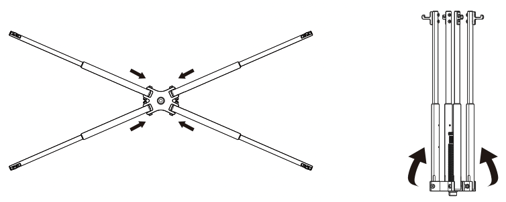

      1.  Assembly and disassembly of the X-shaped support frame:
      Assembly: Apply inward force to insert the support rods into the slots. Repeat the process for all support rods.
      Disassembly: Pull the support rods outward to remove them from the slots. Repeat the process for all support rods. Use Velcro straps to secure and store the support rods.

      Screen Shot 2023-07-13 at 3.46.55 PM

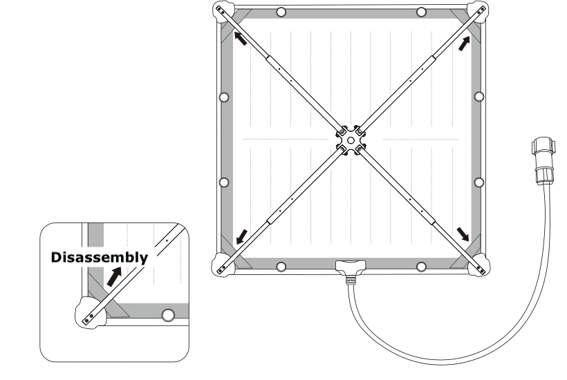

      2.  Assembly and disassembly of the lamp body and X-shaped frame:
      Assembly: Place each of the four support rods into the corner brackets of the lamp body, applying inward force.
      Disassembly: Apply inward force to remove the support rods from the corner brackets.

      Screen Shot 2023-07-13 at 3.47.12 PM

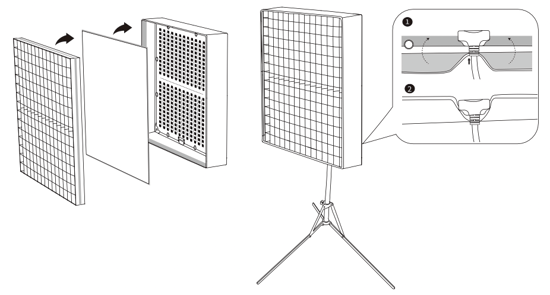

      3.  Installation of the soft box.
      The side of the soft box with grooves corresponds to the side of the lamp body with the power cord. Attach the velcro of the lamp body and the soft box in turn and then install the fabric diffusion and grid.

      Screen Shot 2023-07-13 at 3.47.56 PM

      * Light stand is not included.

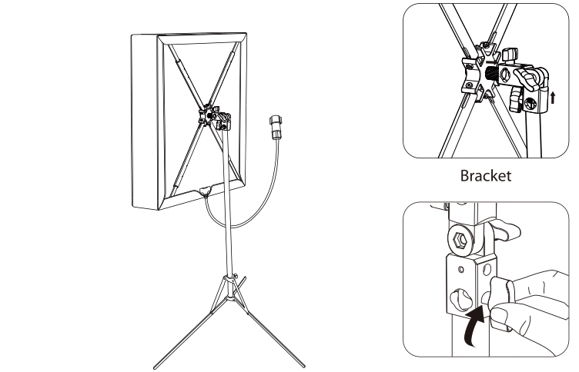

      4.  Attach the lamp body.
      Adjust the lamp body to a suitable height, rotate the tightening handle to fix the lamp body on the light stand, and then adjust the lamp body to the required angle. Then tighten the locking handle.

      Screen Shot 2023-07-13 at 3.48.34 PM

      Powering up the Light

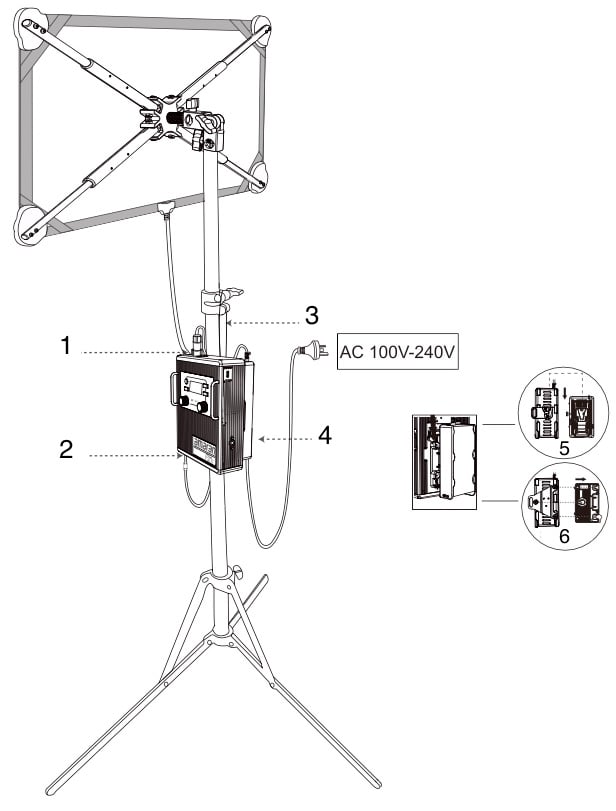

      Powered by AC

      F21x/21cc

      f21x_powered_by_ac

      1. DC Output
      2. DC In
      3. Lanyard
      4. Power Adapter
      5. For V-Mount
      6. For Anton Bauer

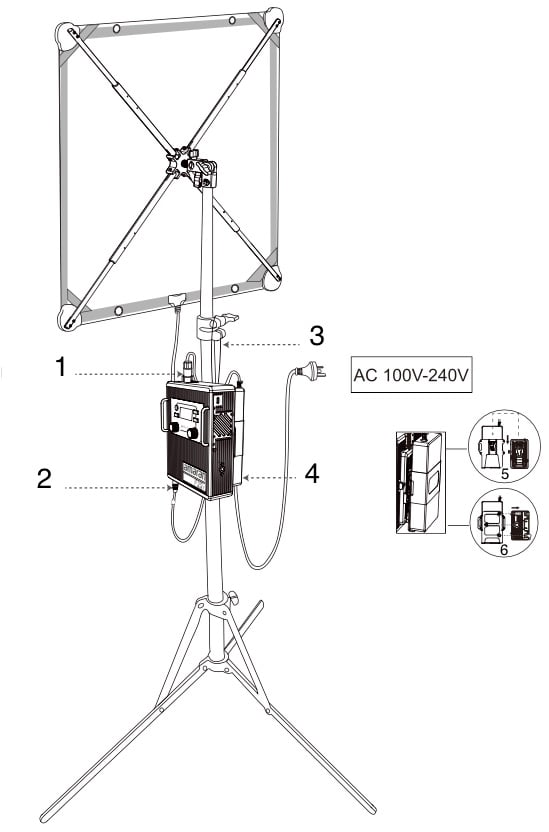

      F22x/22c

      amaran_flex_lights_powered_by_ac

      1. DC Output
      2. DC IN
      3. Lanyard
      4. Power Adapter
      5. For V-Mount
      6. For Anton Bauer

      Powered by DC

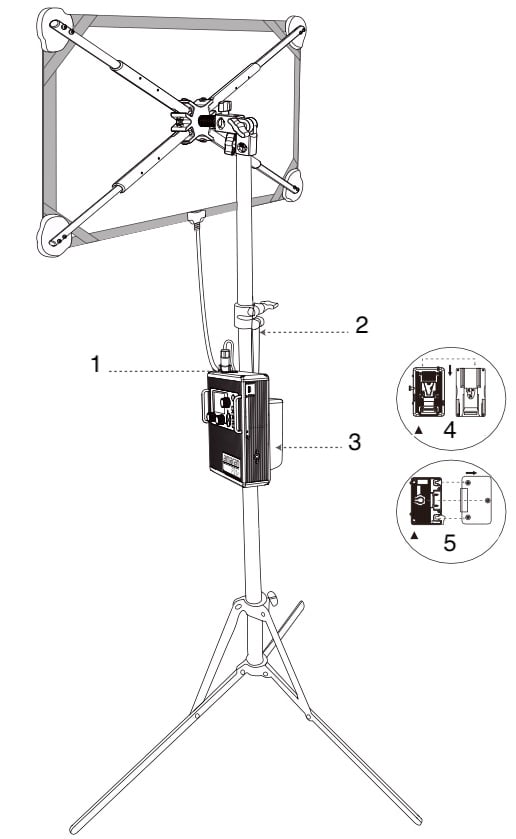

      F21x/21c

      f21x21c_powered_by_dc

      1. DC Output
      2. Lanyard
      3. Battery
      4. V-Mount Battery
      5. Anton Bauer Battery

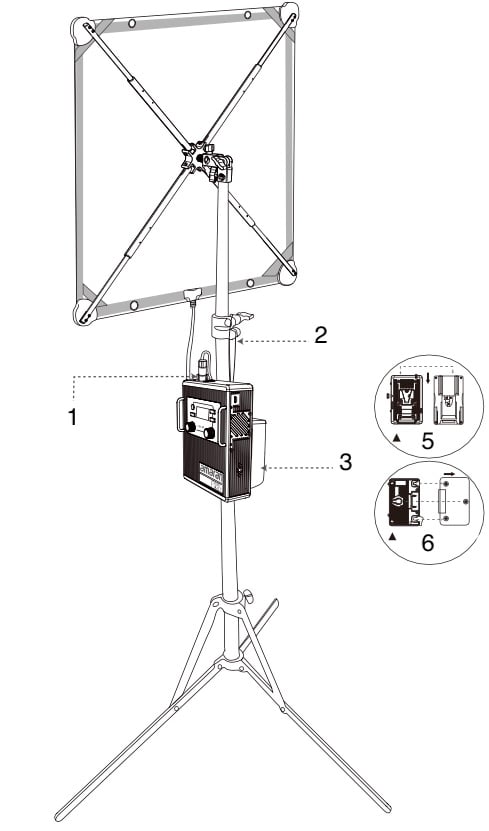

      F22x/22c

      1. f22x22c_powered_by_dcDC Output
      2. Lanyard
      3. Battery
      4. V-Mount Battery
      5. Anton Bauer Battery

      Batteries are not included.

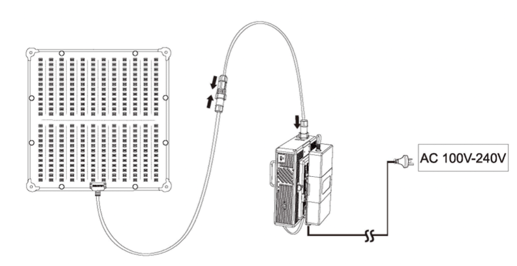

      Attaching the head extension cable:

      Screen Shot 2023-07-13 at 3.50.30 PM

      *When removing the wire, please press and rotate the spring lock on the connector before pulling it. Do not pull it out forcibly.



      For all models in the amaran Fabric Light series:

      *Extension cable, control box, and lamp heads are not interchangeable between the different sizes (F21 and F22) and versions (x and c). The lamp head, control box, and extension cable must match size and version to work.

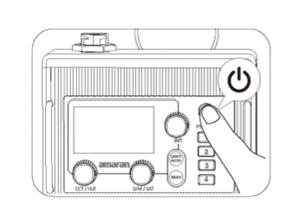

      Powering up the Light



                                x series                                                     c series

          Screen Shot 2023-07-13 at 3.50.52 PM    Screen Shot 2023-07-13 at 3.50.47 PM
