[CF7 Fresnel and Barn Doors Kit] Getting Started

Setting up your CF7 Fresnel and Barn Doors Kit

1. Attaching/Detaching the Fresnel Attachment

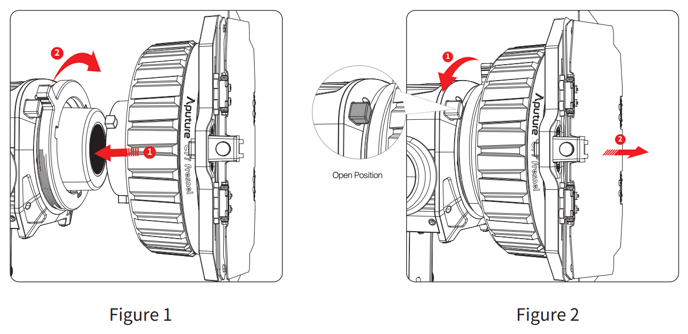

To attach the CF7 Fresnel, insert it into the ProLock Mount and rotate the Pro-Lock Handle clockwise until it locks (as shown in Figure 1). To detach the CF7 Fresnel, rotate the Pro-Lock Handle counterclockwise to the open position and remove the Fresnel (as shown in Figure 2).

CF7 3

2. Attaching/Detaching the Barn Doors

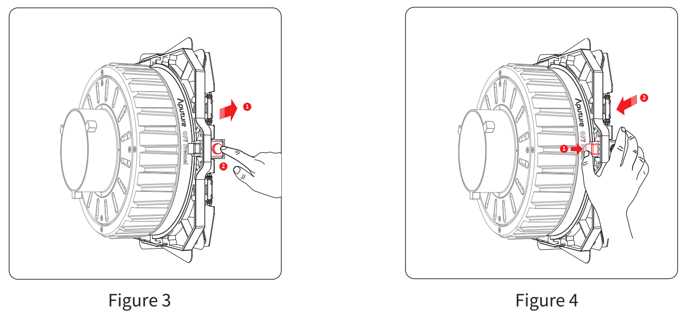

To attach the Barn Doors, slide them onto the front lip of the CF7 Fresnel (as shown in Figure 3, Step 1). Then, press the quick-release locking latch to secure them in place (as shown in Figure 3, Step 2).To detach the Barn Doors, release the latch (as shown in Figure 4, Step 1) and slide them off the lip of the Fresnel (as shown in Figure 4, Step 2).

CF7 4

3. Installing the Safety Chain

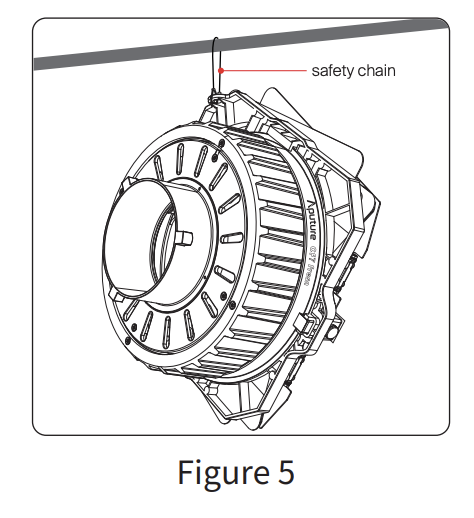

Secure the safety chain to the designated mounting hole on the CF7 Barn Doors (as shown in Figure 5).

CF7 5

4. Installing Scrims

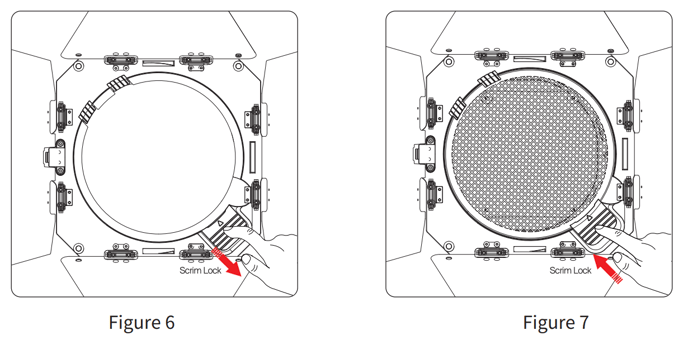

To install scrims into the CF7 Barn Doors, open the scrim lock and place the 7-inch scrim into the circular holder as shown in Figure 6. Then, slide the scrim lock to secure it in place, as shown in Figure 7.Ensure the scrim is fully seated and locked before use.

CF7 6
