      [CF7 Fresnel and Barn Doors Kit] Photometrics & Specifications

      Photometrics & Specifications of CF7 Fresnel and Barn Doors Kit

      Product Specifications

      Name CF7 Fresnel and Barn Doors Kit
      Beam Angle 15-45°
      Product Dimensions CF7 Fresnel

      ф22.4*10.5cm / ф8.81x4.13 in
      CF7 Barn Doors 27.6 ×25.9 ×4.48cm / 10.9×10.2×1.76 in
      CF7 Carrying Case

      34.5x21x32.2cm /
      13.6×8.26×12.8 in
      Product Weight CF7 Fresnel 1.35Kg / 2.98lbs
      CF7 Barn Doors 0.95Kg / 2.09lbs
      CF7 Carrying Case 1.39Kg / 3.06lbs
      Packing Dimensions 34.5x21x32.2cm /
      13.6×8.26×12.8 in
      Net Weight 2.21Kg / 4.87lbs
      Gross Weight 4.08Kg /8.99lbs

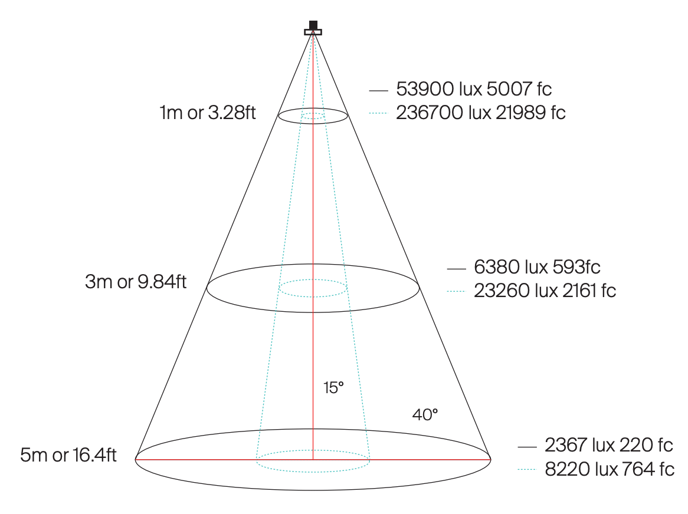

      Photometrics

      CF7 7
