[Electro Storm CS15] Accessory Control

Accessory Control of Electro Storm CS15

Accessory Control

A Motorized Fresnel, Motorized Yoke, and other Aputure-Mount Accessories can be purchased separately. In the Accessory interface, information about the accessories can be found and settings for the accessories can be adjusted.

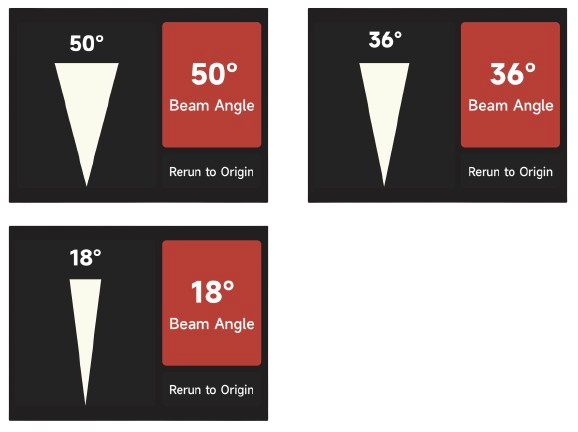

(1) Motorized Fresnel: When the fixture is equipped with the Motorized F14 Fresnel, you can enter this interface to manually adjust the beam angle.

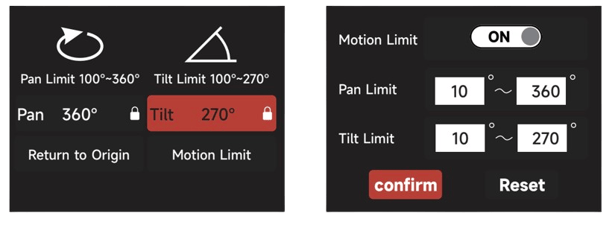

(2) Motorized Yoke: When the fixture is utilizing a Motorized Yoke, the following options are
available in the Accessory Motorized Yoke interface:

a. When also utilizing an Aputure-Mount Accessory, the Motorized Yoke interface will
auto-populate motion limitations (pan and tilt) imposed by the Apature-Mount Accessory.

Reset Position: Resets the Motorized Yoke to its home position.Reset Position also will calibrate the motorized yoke.
Motion Limit: Due to differing size and space limitations of your scenario, stricter pan and tilt
limitations may be required. Edit and reset motion limits in this interface. Caution is recommended when adjusting and resetting limits.

When using an accessory that does not utilize the Aputure Mount system,then the user can
manually select the Accessory from the provided list to populate the motion limitations of the
Motorized Yoke.

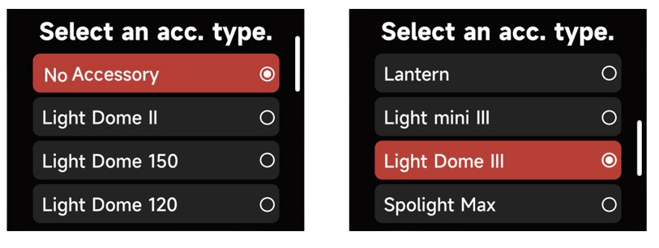

(a) Aputure Bowens mount accessories:

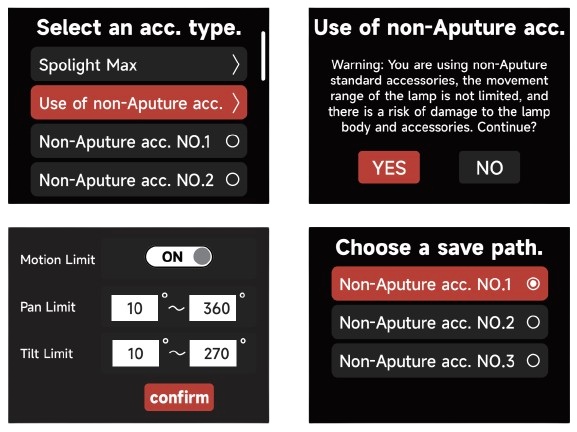

(b) Third-party Bowens mount accessories: When third-party accessories are adopted, you
need to configure and manually input the motion limit independently; you may save the
accessory after configuration for its application in the future.

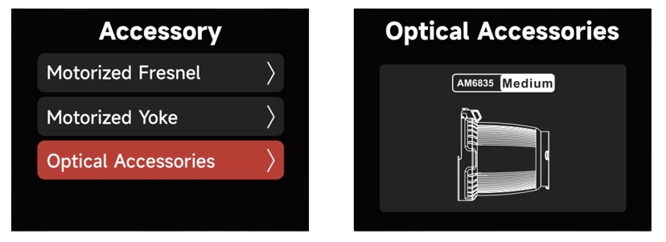

(3) Optical Accessories: When utilizing an Optical Aputure-Mount Accessory, the type of accessory can be viewed in the "Optical Accessories" window. The following accessories are available:
narrow-angle standard reflector, medium-angle standard reflector, wide-angle standard
reflector and barn door adapter
