[Electro Storm CS15] DMX Mode

DMX Mode of Electro Storm CS15

DMX Mode

In DMX mode, you can choose the following options.

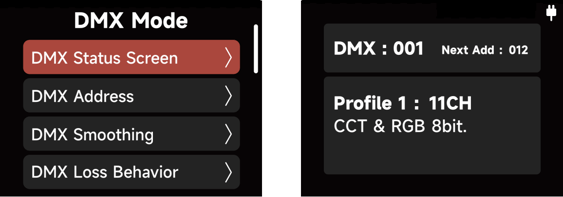

(1) DMX Status Screen: displays information including: DMX Address, CRMX reception strength,
DMX Profile in use, Accessory and Function Configuration Status.

DMX Address: set the DMX address of the device and long press “Select” to lock the current
address and display. Long press the knob again to unlock.

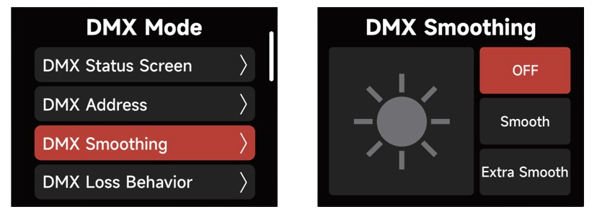

DMX Smoothing: set the smoothness of DMX dimming. You can choose Smooth, Extra Smooth and OFF.

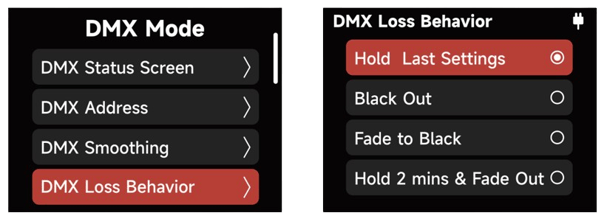

DMX Loss Behavior:
1 Hold Last Settings – holds the last control signal after the DMX signal is lost;
2 Black Out – black out after the DMX signal is lost;
3 Fade to Black – fade to black over 60 seconds after the DMX signal is lost;
4 Hold 2 mins & Fade Out – hold the last control signal for 2 minutes and fade out over 60
seconds after the DMX signal is lost;

DMX Profile: Refer to the DMX channel table for details.

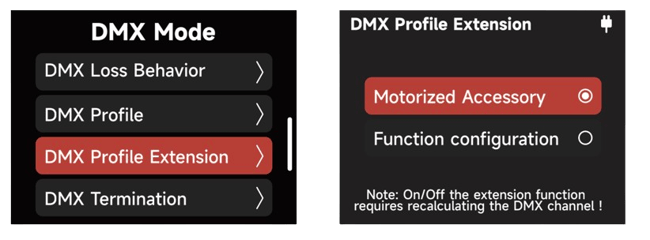

DMX Profile Extension: select DMX channel function extension.
Motorized Accessories: When enabled, the required channels for the Motorized F14 Fresnel and
the Motorized Yoke are added to the end of the current DMX Profile's footprint. (Enabled by
default.)
Function Configuration: When enabled, the required channels for the Fan and Dimming Curve
are added after the Motorized Accessories (If enabled) or after the end of the current DMX
Profile's footprint.

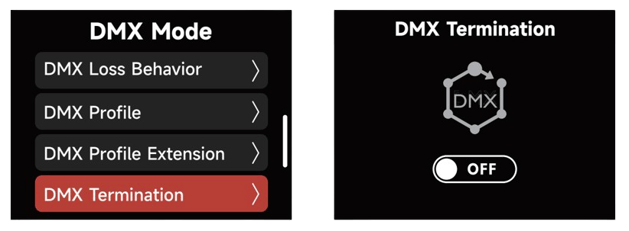

DMX Termination:
