Fixture Details & Buttons of Electro Storm XT26

Lamp

1. Barn Door Latch

2. Carrying Handle

3. Medium-Angle Standard Reflector

4. Removable XT26 Yoke

5. Safety Chain Bracket

6. Anti-Rotate 3/8"-16 Threaded Holes

7. Safety Chain Brackets

8. Yoke Release Lever

9. Mount Release Button

10. Tilt Lock Handle

11. 28mm Junior Pin

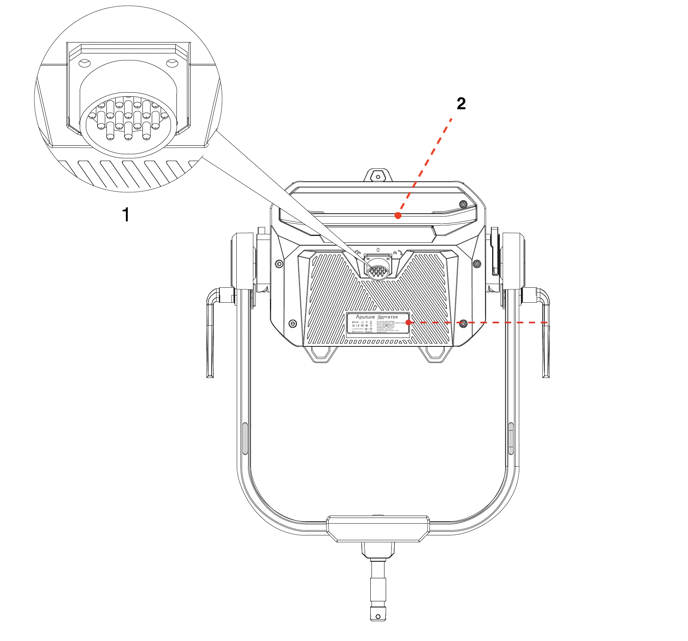

1. Header Cable Port

2. Lamp Head Rear Handle

Control Box

1. Select Knob

2. Control Display

3. Menu Button

4. Light Mode Button

5. Preset Button

6. Back Button

7. Power Button

8. Carrying Handle

9. Tie-off Point

10. DC 48V IN

11. DC 48V IN

12. AC IN

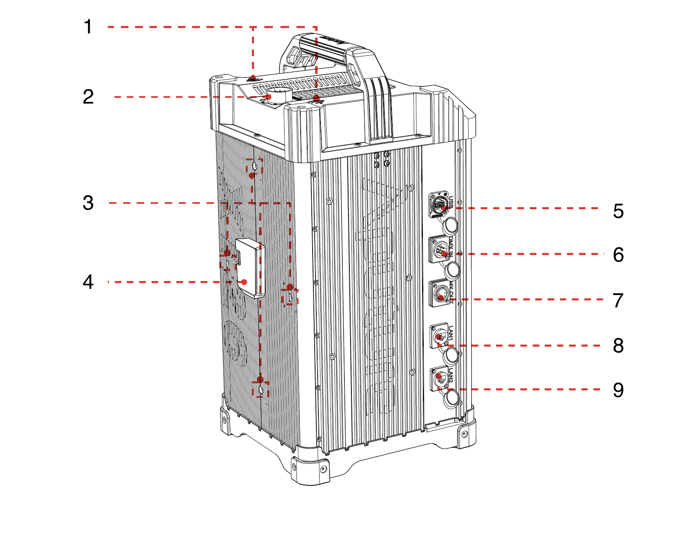

1. Antenna Positions

2. Header Cable Port

3. 3/8" Thread (4)

4. Quick Release Plate

5. USB-A

6. DMX IN

7. DMX OUT

8. LAN1

9. LAN2
