[Electro Storm XT26] Getting Started

Setup

1. Installation and Removal of XT26 Yoke

1 Installation of XT26 Yoke.

Insert the XT26 Yoke's Junior Pin into a rigid Junior Receiver and lock in place. Align the lamp head with the quick release plates on both sides and install until locked. electro-storm-xt26-ushapeyoke

2 Disassembly of XT26 Yoke

While holding the Carrying Handle of the lamp, turn the Yoke Release Levers on both sides of the yoke until they unlock. Lift the lamp head upwards to remove it from the yoke. electro-storm-xt26-disassembleushapeyoke

* The Yoke Release Levers will display red on the sides if the lamp is not completely seated and locked. Please re-align and insert the lamp again until the Yoke Release Levers show no red and a "click" noise of the plate locking has been heard.
* It is recommended to install and disassemble the lamp and yoke while the yoke is sturdy and upright.

2. Disassembly and Installation of Aputure Mount Protection Cover

Press the button in the direction indicated by the arrow and rotate the protection cover. Rotate the protection cover in the reverse direction for its installation.

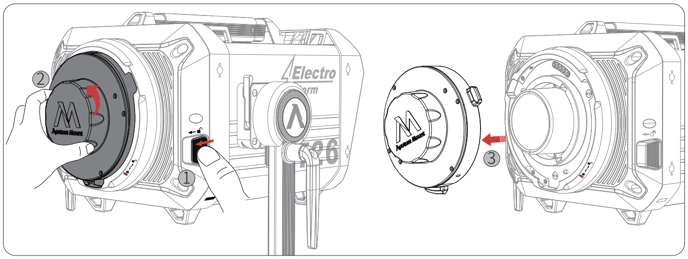

Disassembly of protection cover electro-storm-xt26-disassemblecover

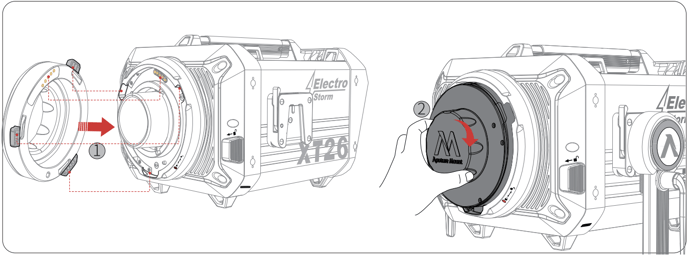

Installation of protection cover electro-storm-xt26-installcover

* Make sure to remove the Aputure Mount Protection Cover before using the device. Install the Aputure Mount
Protection Cover for transport and storage.

3. Installation and Disassembly of Standard Reflector/Barn Doors Adapter

Press the Mount Release Button and insert and rotate the Standard Hood/Adapter until it locks in place; reverse to remove.

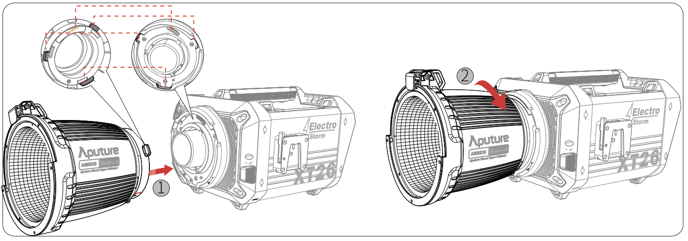

Installation of Standard Reflector electro-storm-xt26-installreflector

Removal of Standard Reflector electro-storm-xt26-removereflector

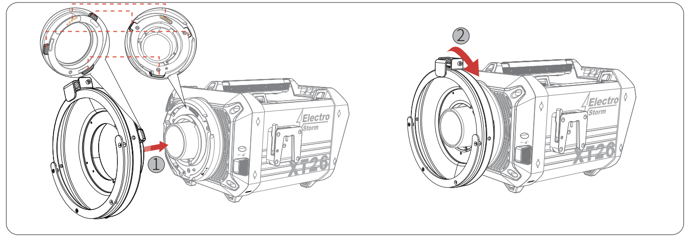

Installation of Barn Doors Adapter electro-storm-xt26-installbarndoors

Removal of Barn Doors Adapter electro-storm-xt26-removebarndoors

4. Installation and Removal of the Barn Doors

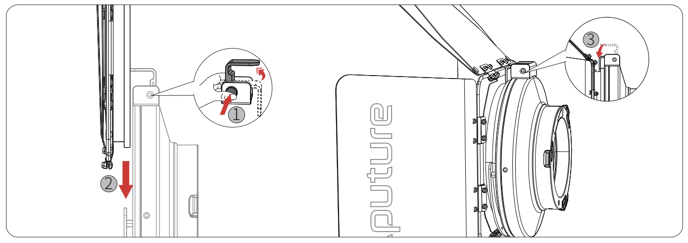

With Barn Doors Adapter electro-storm-xt26-withadapter

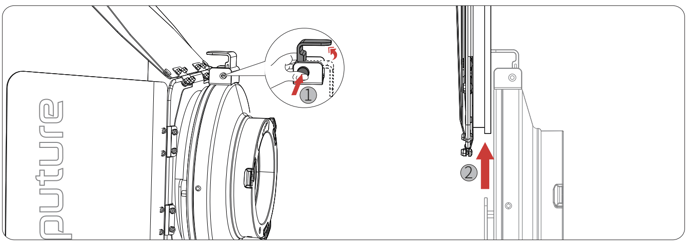

electro-storm-xt26-withadapter1

With Standard Reflector electro-storm-xt26-withreflector

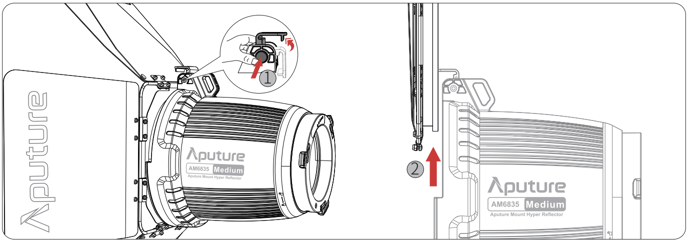

electro-storm-xt26-withreflector1

5. Lamp Adjustment

The lamp angle can be adjusted by loosening the disc brake handles.

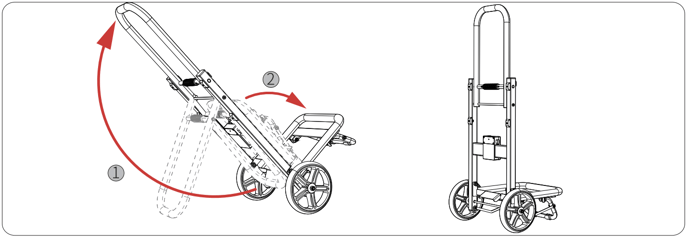

1 Unfold the control box Dolly electro-storm-xt26-unfoldboxdolly

2 Lift the control box and install it into the quick release mechanism of the dolly electro-storm-xt26-liftboxdolly

3 To remove the Control Box from the dolly, press the release button and lift up on the Control Box electro-storm-xt26-removecontrolbox

4 Fold and store the dolly electro-storm-xt26-foldbox dolly
