      [INFINIBAR] User Interface Details

      Description of the Screen, Buttons, & Ports

      Screen Layout

      infinibar_ui_introducing

      1. Current Mode
      2. Battery Level
      3. Battery Remaining Time
      4. Wireless connection status



      Buttons

      infinibar_pb3_buttons

      1. DMX Data via USB-C Adapter
      2. Power
      3. MENU
      4. Function Control Wheel
      5. Back

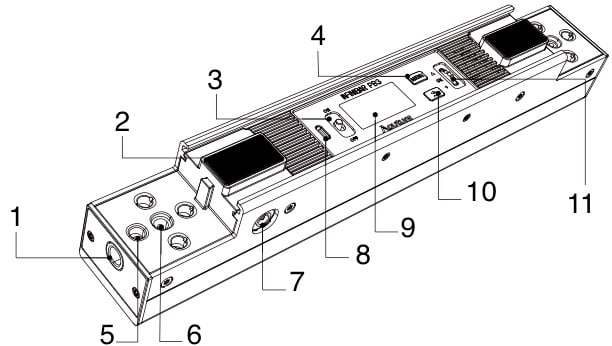

      Ports & Layout

      infinibar_pb12_product_details

      1. 3/8" Screw Mount
      2. Magnet
      3. Power Switch
      4. MENU
      5. 1/4"-20 Screw Mount
      6. 24V DC Port
      7. 24V DC Charge Port
      8. USB-C Update/DMX Port
      9. OLED Screen
      10. Back
      11. Function Control Wheel
