      [INFINIMAT] (1x2,1x4,2x4,4x4) Product Overview

      Product Overview of Aputure INFINIMAT (1x2,1x4,2x4,4x4)

      Aputure INFINIMAT (1x2,1x4,2x4,4x4)

      INFINIMAT 1x2

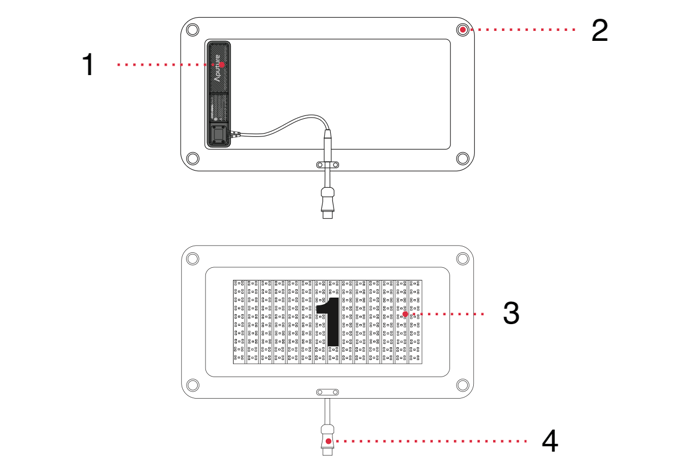

      PO2 1

      1. MCU Part

      2. INFINIMAT Eyelet Grommet 17mm

      3. INFINIMAT Light Engine 1x2

      4. Connection Port 400w

      INFINIMAT 1x4

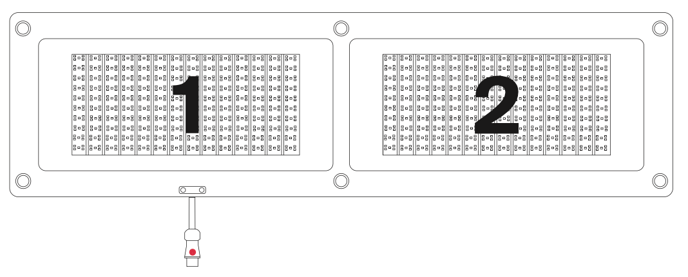

      PO2 2
      Connection Port 400w



      INFINIMAT 2x4

      PO2 3
      Connnection Port 400w

      INFINIMAT 4x4

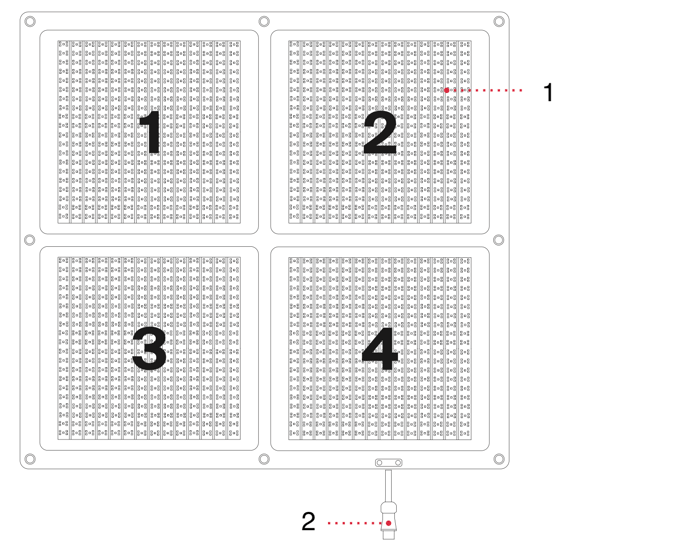

      PO2 4

      1. INFINIMAT Light Engine 2x2

      2. Connection Port 1600w

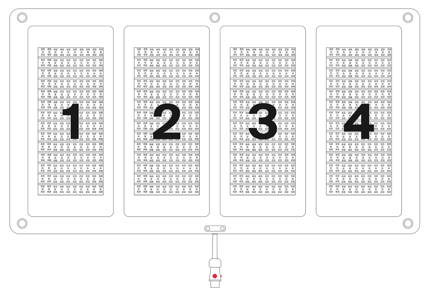

      For individual light engine control via DMX each light engine is identified by a specific number. Light engines seen from the front (diode side) of the fixture.



      Aputure INFINIMAT Inflatable Softbox

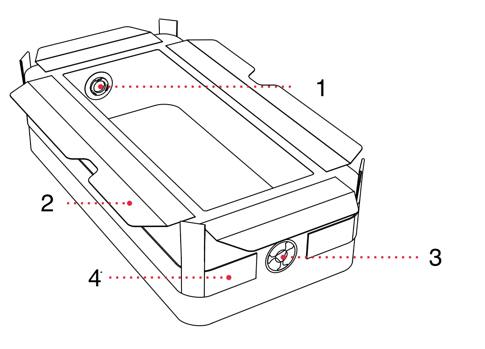

      PO2 5

      1. Overinflation Prevention Plug (Red)

      2. Inflatable Softbox Fastening Flap

      3. Air Pump Port Plug

      4. Inflatable Softbox Accessory Fastener

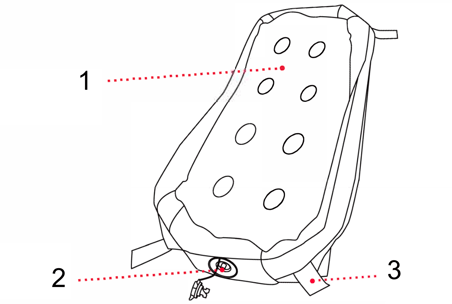

      PO2 6

      1. INFINIMAT Diffusion Front

      2. Air Deflation Button

      3. Inflatable Softbox Rigging Loop

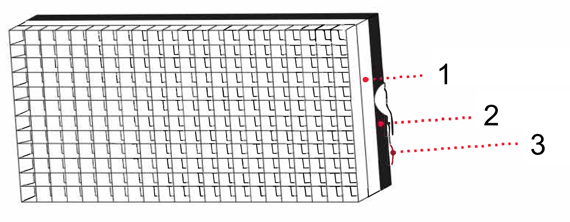

      Aputure INFINIMAT Control Grid



      PO2 7

      1. INFINIMAT Control Grid Accessory Fastener

      2. INFINIMAT Control Grid Fastening Flap

      3. INFINIMAT Control Grid Tie Down

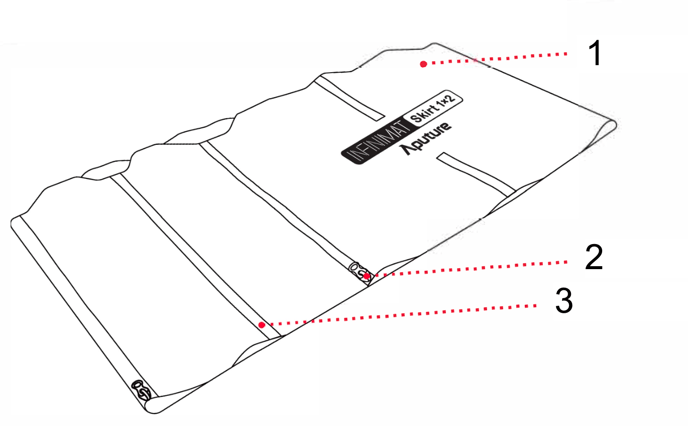

      Aputure INFINIMAT Control Skirt

      PO2 8

      1. INFINIMAT Control Skirt

      2. Curtain Adjusting Zipper

      3. Curtain Adjusting Fasteners

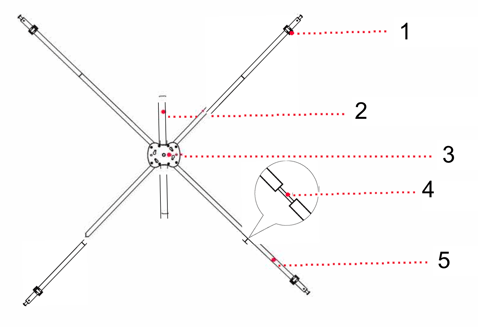

      Aputure INFINIMAT Carbon Fiber Mounting Bracket (1x2,1x4,2x4,4x4)

      INFINIMAT Carbon Fiber Mounting Bracket 4x4

      PO2 9

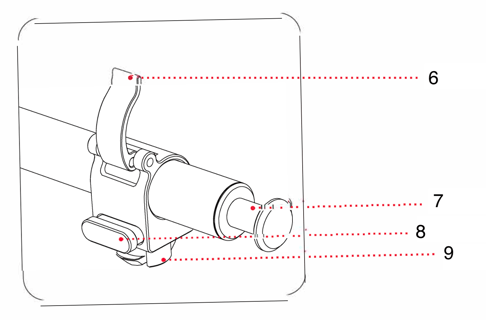

      PO2 10

      1. Locking components

      2. Bracket Adjusting Fasteners

      3. Mounting Plate

      4. Elastic cord (4x4)

      5. Carbon fiber rod

      6. Fastening Lever

      7. End Cap Hooks

      8. Mounting Buttons

      9. Mounting ClipAputure INFINIMAT Control Box 400W

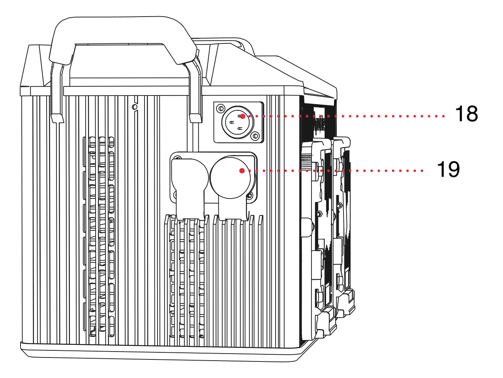

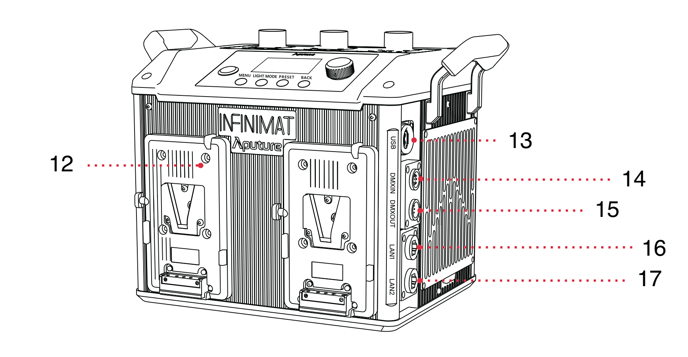

      Aputure INFINIMAT Control Box 400W

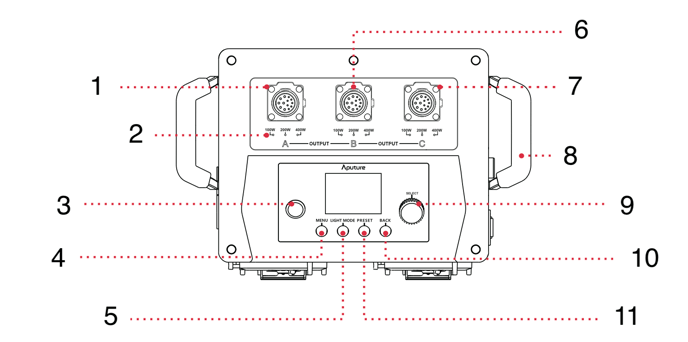

      PO2 11

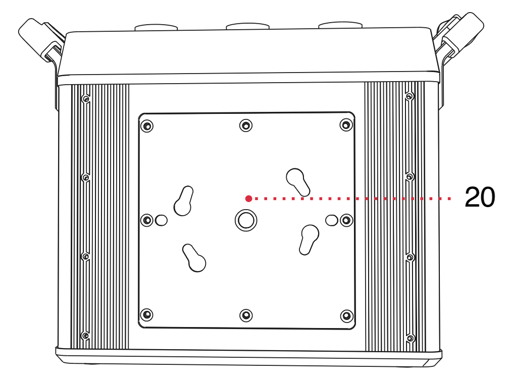

      PO2 12PO2 13PO2 14

      1. Connection port A

      2. Per Port Power Output Indicator Lights

      3. Power Button

      4. Menu Button

      5. Light Mode Button

      6. Connection port B

      7. Connection port C

      8. Carrying Handle (x2)

      9. Select Wheel

      10. Back Button

      11. Preset Button

      12. Battery Plate x 2 (*V-Mount pictured; Gold Mount also available)

      13. USB-A Port - 5V 0.5A

      14. DMX IN

      15. DMX OUT

      16. LAN1

      17. LAN2

      18. DC 48V IN

      19. AC IN & OUT

      20. Control Box Mounting Plate

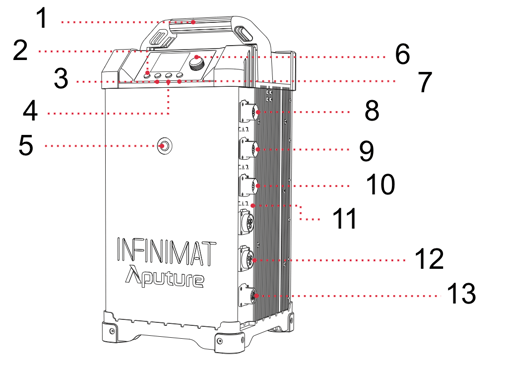

      Aputure INFINIMAT Control Box 1600W

      PO2 15 PO2 161. Carrying Handle

      2. Menu Button

      3. Light Mode Button

      4. Preset Button

      5. Power Button

      6. Select Wheel

      7. Back Button

      8. Connection Port A

      9. Connection Port B

      10. Connection Port C

      11. Per Port Power Output Indicator Lights

      12. DC 48V IN

      13. AC IN

      14. Connection Port D

      15. Connection Port E

      16. USB-A Port - 5V 0.5A

      17. DMX IN

      18. DMX OUT

      19. LAN1

      20. LAN2

      INFINIMAT Mounting Clamps

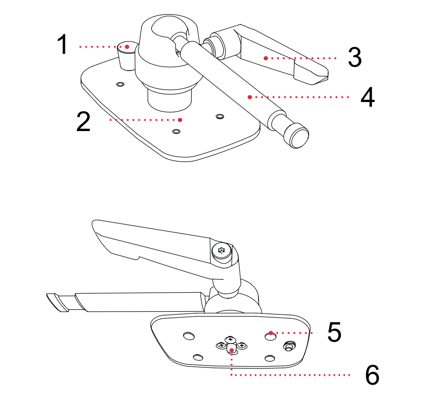

      Aputure K-Mount Arm w/ Articulating 5/8" Pin

      PO2 171. K-Mount Release Button

      2. K-Mount Quick-Release Plate

      3. K-Mount Locking Lever

      4. Articulating 5/8" Baby Pin w/ Ball Head

      5. K-Mount Locking Pin (x4)

      6. K-Mount Locator Pin

      Aputure K-Mount Mounting Clamp

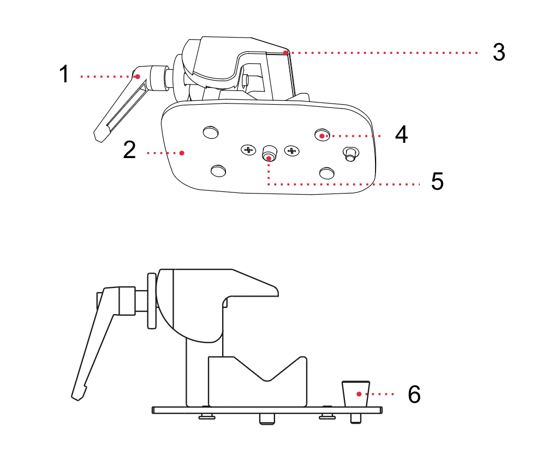

      PO2 181. Clamp Locking Lever

      2. K-Mount Quick-Release Plate

      3. Super Clamp

      4. K-Mount Locking Pin (x4)

      5. K-Mount Locator Pin

      6. K-Mount Release Button



      INFINIMAT Air Pumps

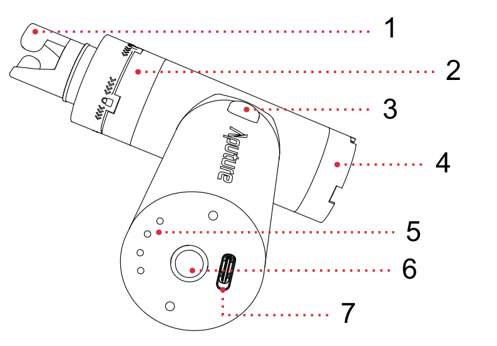

      Aputure INFINIMAT Air Pump Mini

      PO2 191. Air Pump Nozzle

      2. Air Intake

      3. Function Button

      4. Air Output

      5. Status Lights

      6. Power Button

      7. USB-C Charging Port



      Aputure INFINIMAT Air Pump MAX

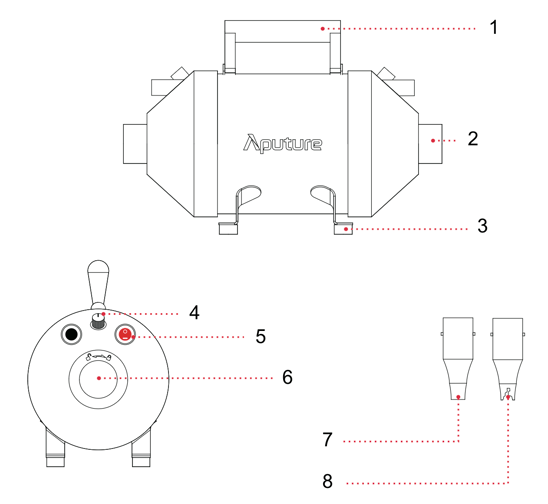

      PO2 20

      1. Handle

      2. Air Output

      3. Chassis

      4. Power Adjustment Knob

      5. Power Button

      6. Air Intake

      7. One-Way Nozzle

      8. Air Pump Nozzle
