💡Overview

[INFINIMAT] (8x8,20x20) Product Overview

Product Overview of Aputure INFINIMAT (8x8,20x20)

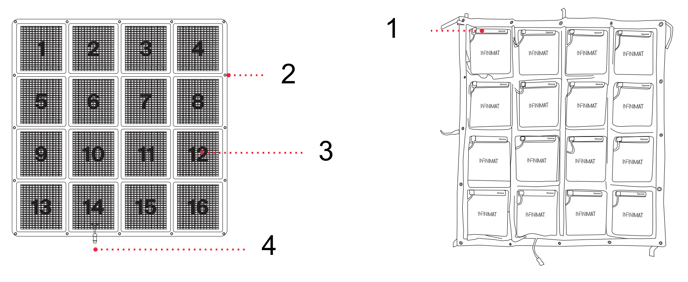

Aputure INFINIMAT 8x8

PO 1

1. MCU Part

2. INFINIMAT 8x8 Eyelet Grommet 17mm (x16)

3. INFINIMAT Light Engine 2x2 (x16)

4.Connection Port 16002

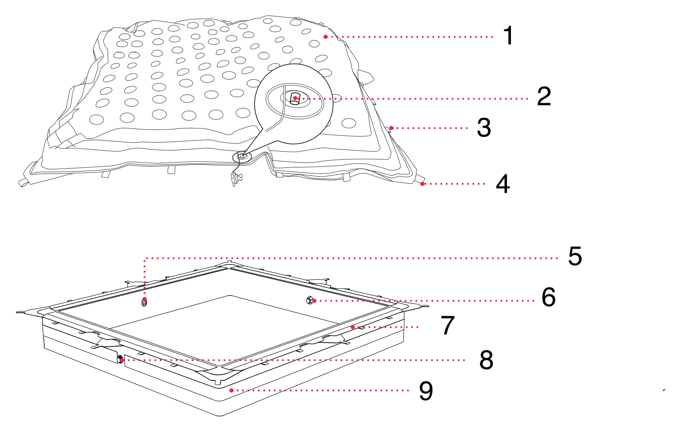

Aputure INFINIMAT Inflatable Softbox 8x8

PO 2

1. Inflatable Diffusion Front

2. Air Deflation Button

3. Inflatable 8x8 Softbox Small Rigging Loop (x16) - 1.25" OD

4. Inflatable 8x8 Softbox Big Rigging Loop (x8) - 1.5"OD

5. One-Way Plug

6. Air Pump Port Plug

7. Inflatable Softbox Fastening Flap (x8)

8. Overinflation Prevention Plug

9. Inflatable Softbox Accessory Fastener

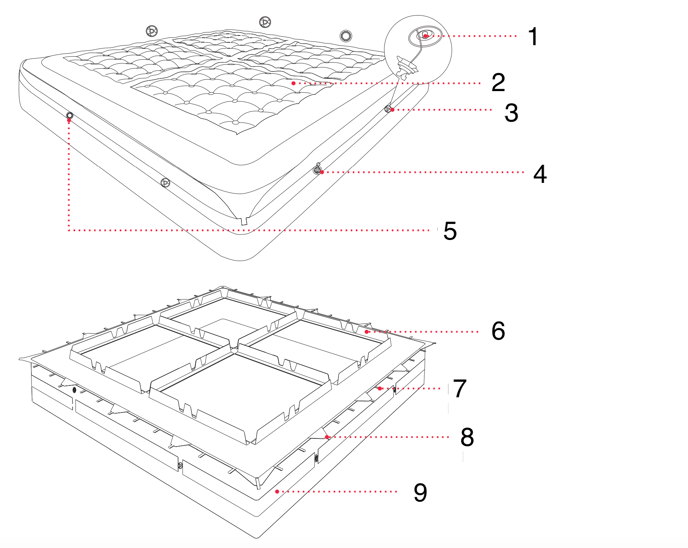

Aputure INFINIMAT Inflatable Softbox 20x20

PO 3

1. Air Deflation Button

2. Inflatable Diffusion Front

3. Air Pump Port Plug (x4)

4. One-Way Plug (x1)

5. Overinflation Prevention Plug (x2)

6. Inflatable 20x20 Softbox Fastening Flat (x16)

7. Inflatable 20x20 Softbox Small Rigging Loop (x48) - 1.25"OD

8. Inflatable 20x20 Softbox Big Rigging Loop (x16) - 1.5"OD

9. Inflatable Softbox Accessory Fastener





PO 4



PO 5





PO 6

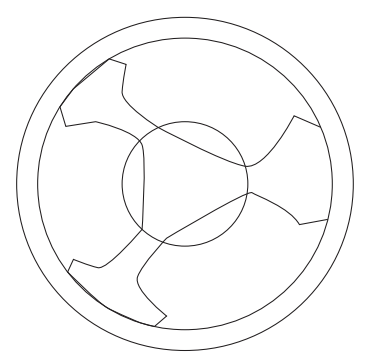

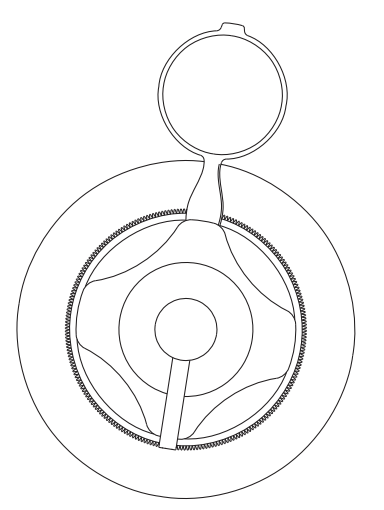

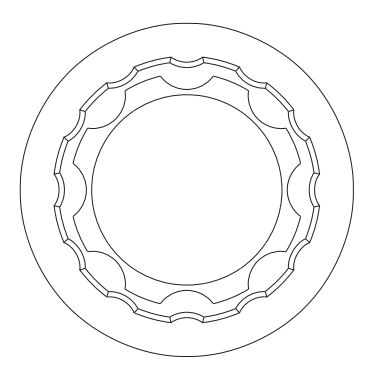

Air Pump Port Plug   One-Way Plug   Overinflation Prevention Plug

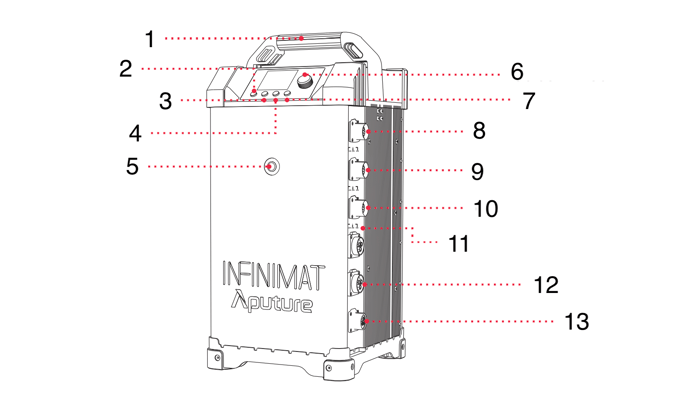

Aputure INFINIMAT Control Box 1600W

PO 7

PO 8

1. Carrying Handle

2. Menu Button

3. Light Mode Button

4. Preset Button

5. Power Button

6. Select Wheel

7. Back Button

8. Connection A

9. Connection B

10. Connection C

11. Per Port Power Output Indicator Lights

12. DC 48V IN

13. AC IN

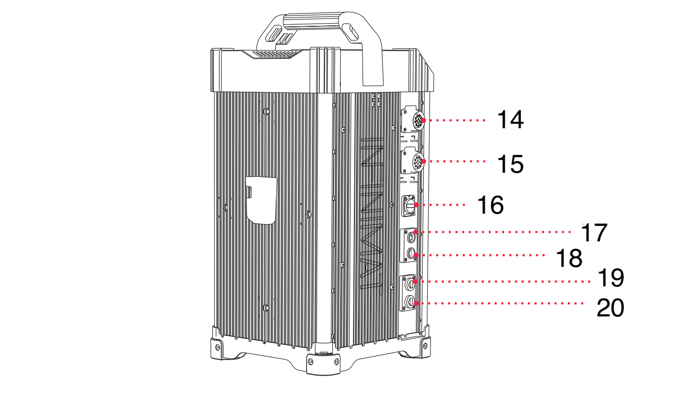

14. Connection Port D

15. Connection Port E

16. USB-A Port - 5V 0.5A

17. DMX IN

18. DMX OUT

19. LAN1

20. LAN2

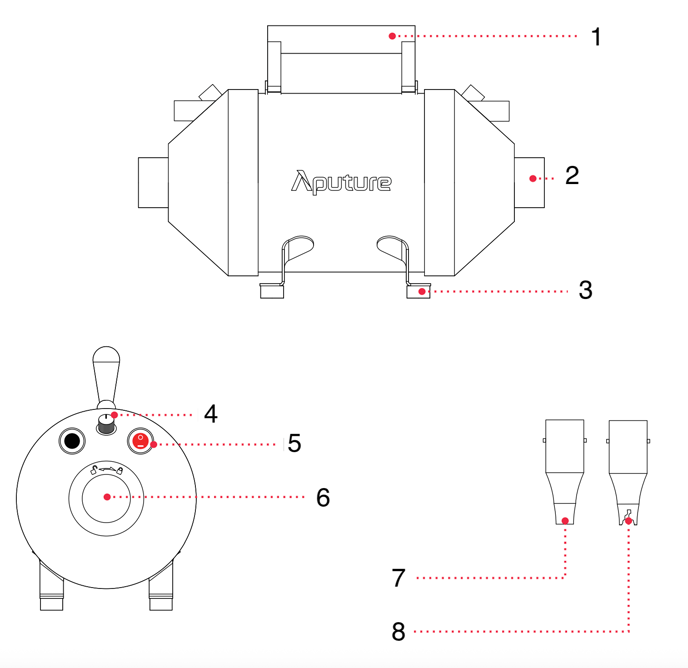

Aputure INFINIMAT Air Pump MAX

PO 9

1. Handle

2. Air Output

3, Chassis

4. Power Adjustment Knob

5. Power Button

6. Air Intake

7. One-Way Nozzle

8. Air Pump Nozzle
